Empty Cable Bobbin 1000mm 1250mm Wire Reel Drum For 1250 Buncher 90 Extruder Line

Product Description

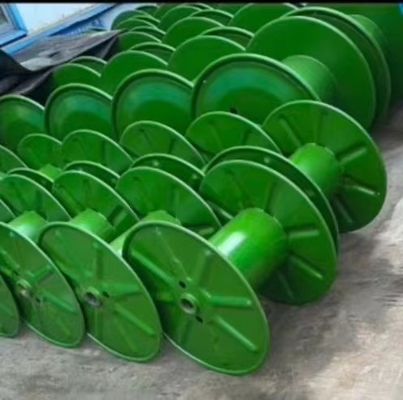

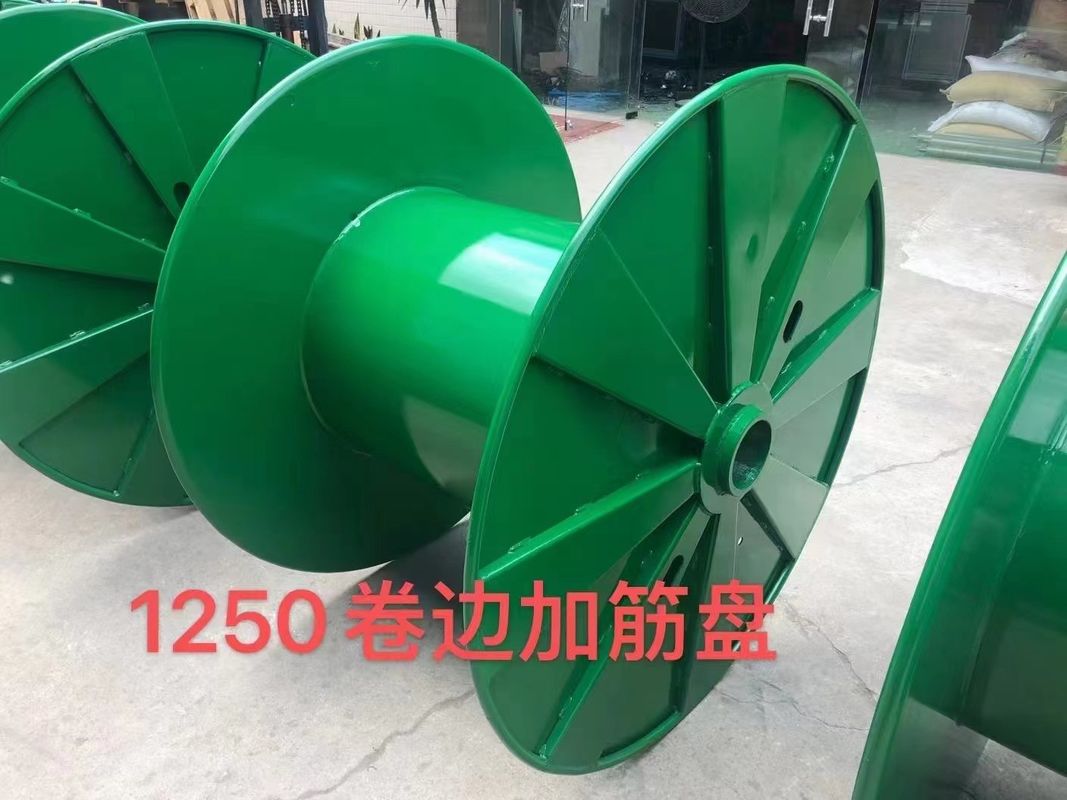

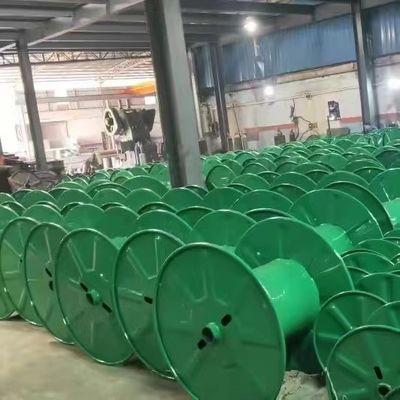

1000mm 1250mm Iron Punching Steel Bobbin Drum Reel For 1250 buncher 90 extruder line

About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, bobbin, laser cutting machine, pipe production line,cable tapping machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,

Main brands for our machine

SIZES
A wide range of sizes from 315 mm. up to 1250 mm. flange diameter. This reel type is manufactured according to DIN 46397 & 46395.

Product dimension

d1	d2	d3	d4	d5	e	l1	l2	Vol. dm3
400	160	112	56	16 to 28	112	300	250	26.3
400	200	112	56	16 to 28	112	236	200	18.8
450	180	112	56	16 to 28	112	335	280	37.4
450	224	112	56	16 to 28	112	265	224	26.8
500	200	112	56	16 to 28	140	375	315	51.9
500	250	112	56	16 to 28	140	300	250	36.8
560	224	112	56	16 to 28	140	425	355	73.4
560	280	112	56	16 to 28	140	335	280	51.7
630	250	112	56	16 to 28	140	475	400	105.1
630	315	112	56	16 to 28	140	375	315	72.5
710	355	160	80	28 to 40	160	530	450	133.6
800	400	160	80	28 to 40	160	600	500	188.5
900	450	160	80	28 to 40	160	670	660	267.2
1000	500	160	80	28 to 40	160	750	630	371.1
1120	560	160	80	28 to 40	160	850	710	524.6
1250	630	160	80	28 to 40	160	950	800	732.4



Product dimension

d1	d2	d3	d4	d5	e	l1	l2	Vol. dm3
400	160	112	56	16 to 28	112	300	250	26.3
400	200	112	56	16 to 28	112	236	200	18.8
450	180	112	56	16 to 28	112	335	280	37.4
450	224	112	56	16 to 28	112	265	224	26.8
500	200	112	56	16 to 28	140	375	315	51.9
500	250	112	56	16 to 28	140	300	250	36.8
560	224	112	56	16 to 28	140	425	355	73.4
560	280	112	56	16 to 28	140	335	280	51.7
630	250	112	56	16 to 28	140	475	400	105.1
630	315	112	56	16 to 28	140	375	315	72.5
710	355	160	80	28 to 40	160	530	450	133.6
800	400	160	80	28 to 40	160	600	500	188.5
900	450	160	80	28 to 40	160	670	660	267.2
1000	500	160	80	28 to 40	160	750	630	371.1
1120	560	160	80	28 to 40	160	850	710	524.6
1250	630	160	80	28 to 40	160	950	800	732.4
