500mm Cable Bobbin 45kg High Speed Cable Steel Drum

500mm Cable Bobbin 45kg High Speed Cable Steel Drum

Product Details:

Place of Origin: Dongguan,china
Brand Name: Hongli
Certification: CE,ISO
Model Number: YY-500

Payment & Shipping Terms:

Minimum Order Quantity: 10 set
Price: 120$-150$
Packaging Details: wooden packing
Delivery Time: 10-30 days
Payment Terms: T/T, L, L/C
Supply Ability: 5000 set per month
Get Best Price Contact Now

Detail Information

Material: Cable Steel Drum Name: Cable Bobbin
Bobbin Size: 500mm Thickness: Flat Steel
Weight: 45kg
High Light:

500mm Cable Bobbin


Cable Bobbin 45kg


High Speed Cable Steel Drum

Product Description

Chinese Brand Flat Steel Reel High Speed Drum 500mm Bobbin For Wire Drawing Machine



About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, bobbin, laser cutting machine, pipe production line,cable tapping machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,


Main brands for our machine

- PLC: Siemens
- Touch Screen: Siemens
- Low-voltage electrical components: Schneider
- Bearings: NSK or SKF

Product Description

Steel cord and Tire cord applications require a specialized type of spool which is manufactured to industry standards. The B-Type spools are available in various assemblies and additional strength constructions as required by the application.

1. Pressed steel dual component flange
2. Curly flange edge for strength & hock-resistance
3. High penetration spot welds flange to drum
4. Wire locking flange clips, tags or holes

Surface Treatment:
Powder-coated (1 or 2 colors)
Directional arrows on flanges
Embossed logos
Customer specific drive holes

Product Parameter
  BS-40 BS-60 BS-80/17 BS-80/33
Flange Ø 255 mm (10") 255 mm (10") 255 mm (10") 255 mm (10")
Traverse 153 mm (6") 153 mm (6") 315 mm (12.4") 315 mm (12.4")
Drum Ø 117 mm (4.6") 117 mm (4.6") 117 mm (4.6") 117 mm (4.6")
Outside Width 167 mm (6.57") 167 mm (6.57") 345 mm (13.5") 345 mm (13.5")
Bore Ø 17 mm (0.67") 33 mm (1.3") 17 mm (0.67") 33 mm (1.3")
Weight of Spool 1.85 Kg (4.07 lb) 1.90 Kg (4.18 lb) 2.40 Kg (5.30 lb) 2.50 Kg (5.51 lb)
Volume Capacity 18 Kg (39.70 lb) 18 Kg (39.70 lb) 36 Kg (79.40 lb) 36 Kg (79.40 lb)


A machine-drawing wire cable spool, also known as a galvanized spool, is a type of spool or reel that is used to hold and transport wire or cable during the manufacturing process. It is typically made from high-strength steel or other durable materials, which provide excellent resistance to wear and tear and can be coated with a layer of galvanized zinc to further enhance its durability and corrosion resistance.

The spool has a cylindrical shape with flanges at either end, which provide support and stability for the wire or cable as it is wound around the spool. The flanges are typically wider than the central cylinder, which helps to prevent the wire or cable from slipping off the sides of the spool during transport.

The size and configuration of the spool can vary depending on the specific application and requirements of the wire or cable being produced. Some spools may be designed to hold a relatively small amount of wire or cable, while others may be much larger and capable of holding several thousand feet of material.

Machine drawing wire cable spools are typically used in a variety of industrial applications, including wire and cable manufacturing, telecommunications, and electrical power transmission. Their durable and reliable design makes them an ideal choice for demanding industrial environments where precision, speed, and efficiency are essential.

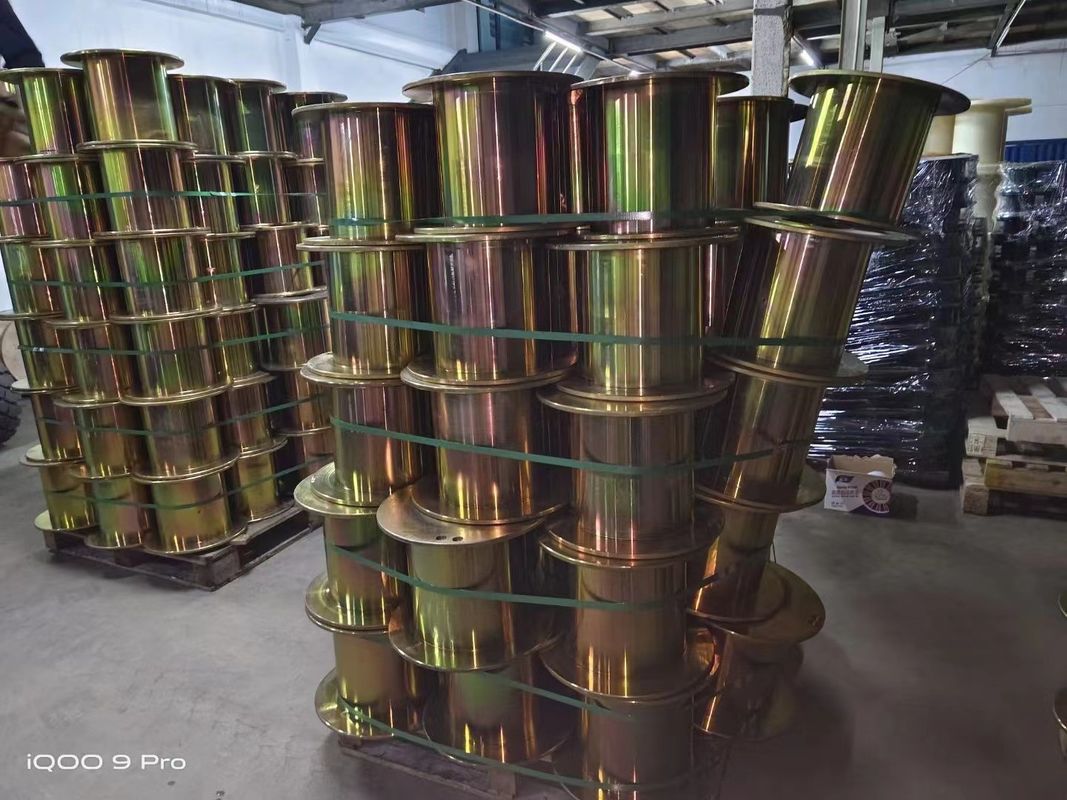

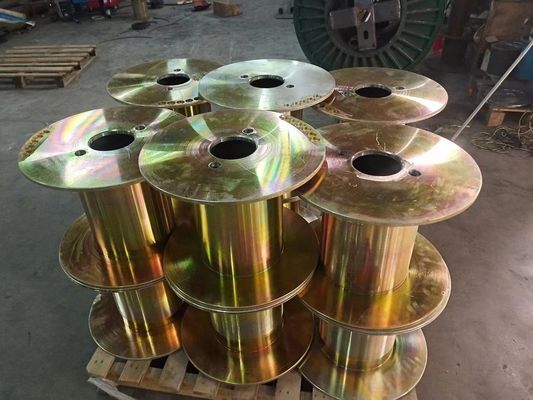

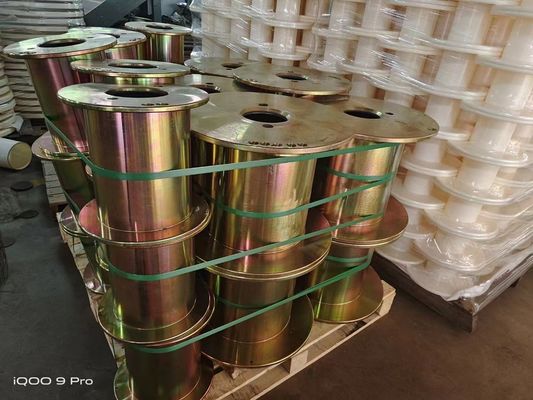

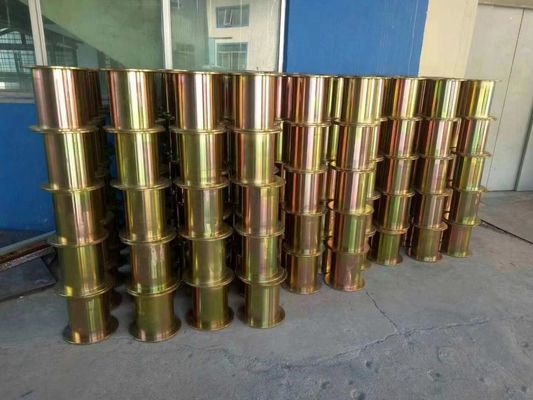

500mm Cable Bobbin 45kg High Speed Cable Steel Drum 0500mm Cable Bobbin 45kg High Speed Cable Steel Drum 1500mm Cable Bobbin 45kg High Speed Cable Steel Drum 2500mm Cable Bobbin 45kg High Speed Cable Steel Drum 3500mm Cable Bobbin 45kg High Speed Cable Steel Drum 4

500mm Cable Bobbin 45kg High Speed Cable Steel Drum 5
