High Temperature Insulation Cable Extruder Machine 60kg/H CE Approved
Product Details:
| Place of Origin: | Dongguan |
| Brand Name: | Hongli |
| Certification: | CE |
| Model Number: | 35 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 40,000$-55,000$ |
| Packaging Details: | wooden packing |
| Delivery Time: | 20-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 set per month |
|
Detail Information |
|||
| Name: | Cable Extruder Machine | Screw: | 35mm |
|---|---|---|---|
| Capacity: | 60kg/h | Inlet Size: | 0.3-3mm |
| Output Size: | 0.5-5mm | Motor Power: | 11KW |
| Motor Brand: | Siemens | Inverter Brand: | Yaskawa |
| Length Of Machine: | 21 Meters | Extruder Material: | HC-276, Hastelloy Alloy Steel |
| High Light: | High Temperature Insulation Cable Extruder Machine,Cable Extruder Machine 60kg/h,CE Cable Extruding Machine |
||
Product Description
PFA/FEP/ETFE/PTFE High Temperature Insulation Wire And Cable Extruder Machine
About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country.
Main brands for our machine
Characteristics:
It is suitable for the production of fluoroplastics such as FEP (polyfluoroethylene propylene, also known as F46), FPA (oxidized alkoxyethylene resin) and ESFE (also known as F40).
Screw barrel: all adopt the new No. 3 steel GH113 (same as American GDA material) for corrosion resistance and high temperature resistance or imported Hastelloy gold steel.
Machine head: special non-adjustable machine head or adjustable machine head made of new No. 3 gold steel GH113 or Microdia machine head and vacuum device imported from Switzerland.
Heating system: high temperature resistant cast copper alloy heater is used.
Quality control: Equipped with external diameter detection feedback device, Japanese TAKIKAWA concave-convex tester to control the outer diameter of the product in the whole process, British BETA water capacitance tester, high-frequency spark machine and concentricity and other process parameters.
Product Parameters
| Machine model | NHF-20 | NHF-25 | NHF-30 |
| Applicable cable | Coaxial cable | Coaxial cable | RGB178 |
| Inlet diameter | 0.025/7 | 0.03/7 | 0.86 |
| Finished diameter | 0.2 | 0.25 | 1.08 |
| production capacity | 50MPM | 80MPM | 300MPM |
| Dimensions | 10*1*2m | 12*1.2*2m | 16*1.5*2.5m |
| Power | 15KW | 20KW | 25KW |
| Electronic control | Controlled inverter + PLC entire control(may choose the use) | ||

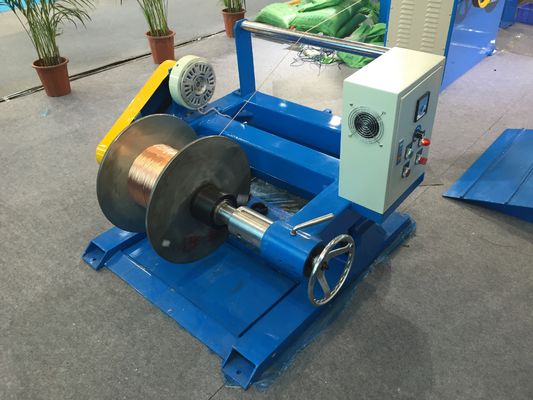

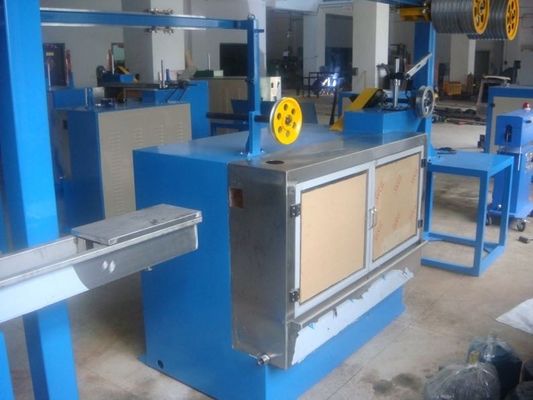

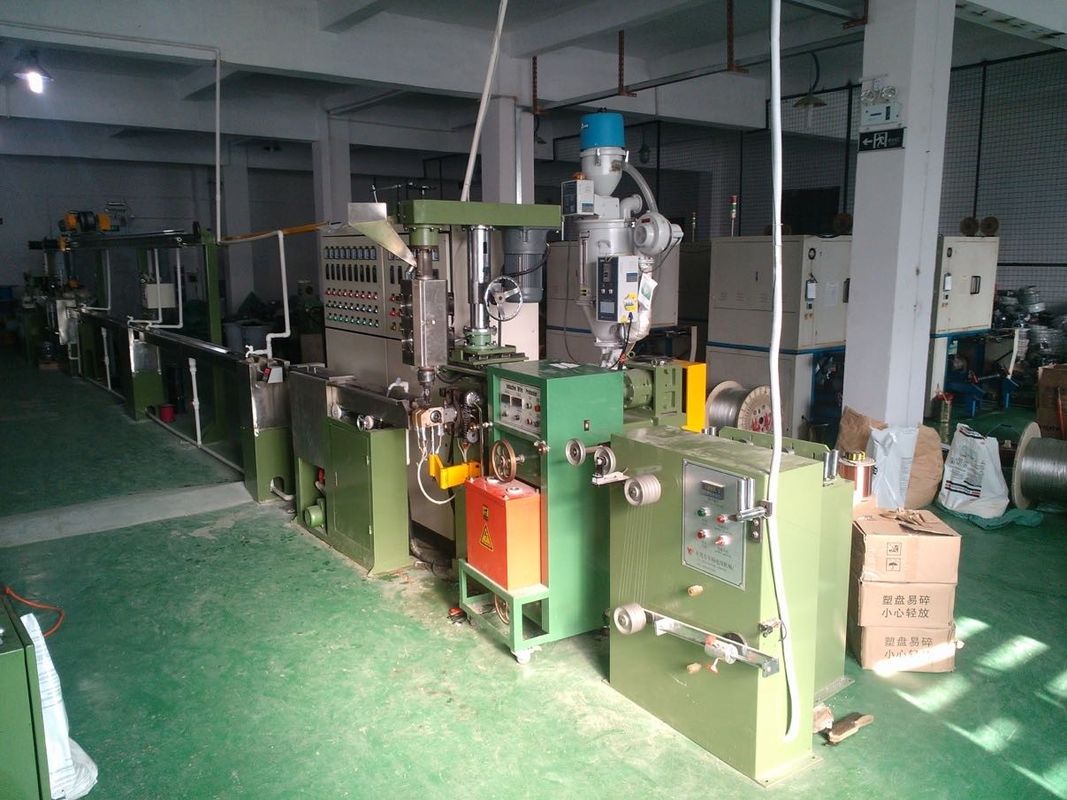

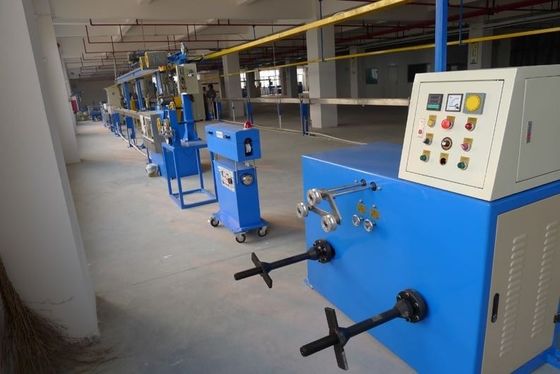

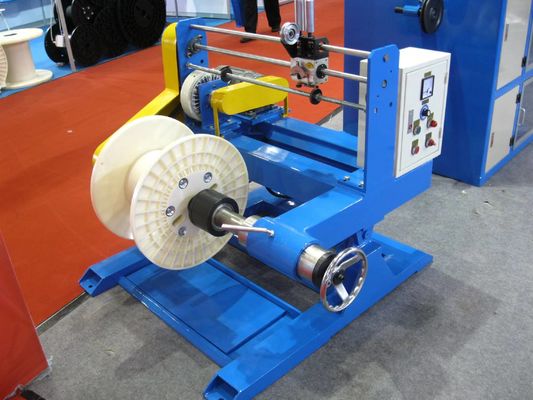

Machine Details
Technical parameters
|
φ25 | φ30 | φ35 | φ45 | φ50 | |
| Finished diameter(MM) | 0.05∽1.0 | 0.28∽2.0 | 0.4∽3.0 | 0.6∽4.0 | 0.6∽5.0 | |
| Extrusion amount (KG) | 6 | 20 | 25 | 60 | 60 | |
| Line speed(M/Min) | 150 | 180 | 180 | 150 | 150 | |
| Screw rotation(rmp) | 10-50 | 10-90 | 10-60 | 10-90 | 10-60 | |
| Total power(kw) | 6.4 | 30 | 30 | 40 | 35 | |
| Host machine power(hp) | 4 | 15 | 10 | 15 | 15 | |
| Traction power(hp) | 2.2 | 3 | 2 | 3 | 3 | |
| Coiling machine power(hp) | 1.5 | 2 | 2 | 3 | 3 | |
| Accumulate Power(hp) | 2.2 | 1 | 1 | 2 | 2 | |
| Length to diameter ratio | 25:1 | 25:1 | 25:1 | 25:1 | 25:1 | |
| Hopper capacity(KG) | 10 | 12 | 12 | 25 | 25 | |
| Magnetic powder clutch(KG) | 5 | 5 | 5 | 10 | 10 | |
| dryer electric heating(kw) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| dryer air supply(w) | 180 | 180 | 180 | 180 | 180 | |
| Traction wheel diameter(mm) | 191.2 | 191.2 | 191.2 | 500 | 500 | |
| Accumulate wheel diameter(mm) | 120 | 120 | 120 | 250 | 250 |
