500mm 630mm Cable Bobbin Iron Punching Steel Bobbin For 70 Extruder Line
Product Details:
Place of Origin: | Dongguan,china |
Brand Name: | Hongli |
Certification: | CE,ISO |
Model Number: | YY-630 |
Payment & Shipping Terms:
Minimum Order Quantity: | 10 set |
---|---|
Price: | 40$-120$ |
Packaging Details: | wooden packing |
Delivery Time: | 15-30 days |
Payment Terms: | T/T, L, L/C |
Supply Ability: | 1000 set per month |
Detail Information |
|||
Material: | STEEL Iron | Bobbin Size: | 500mm, 630mm, 800mm, 1000mm |
---|---|---|---|
Thickness: | Double Layers | Weight: | 20-50kg |
Name: | Cable Bobbin | ||
High Light: | 500mm Cable Bobbin,630mm Cable Bobbin,Iron Punching Steel Bobbin |
Product Description

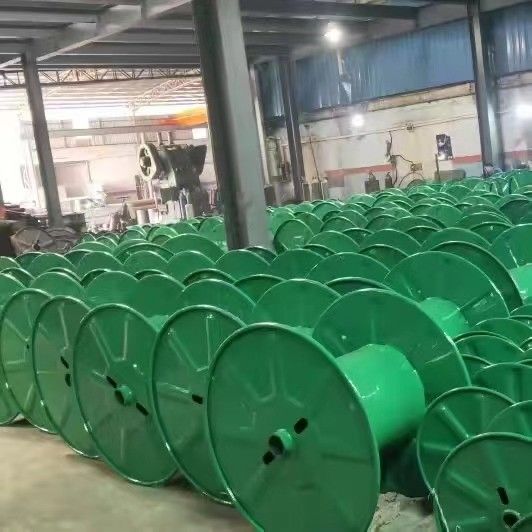

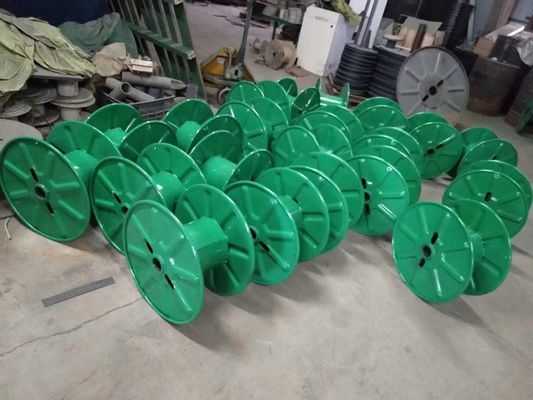

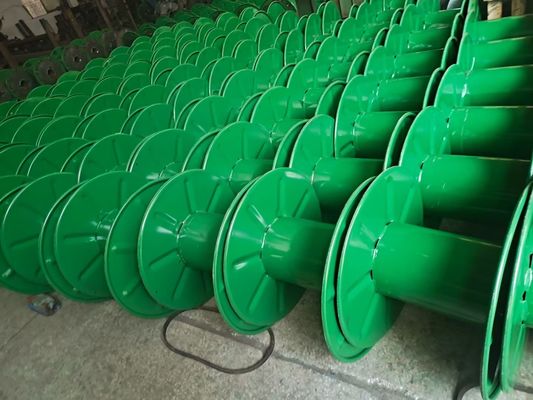

China Brand 500mm 630mm Iron Punching Steel Bobbin For 70 Extruder Line
About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, bobbin, laser cutting machine, pipe production line,cable tapping machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,
Main brands for our machine
SIZES
A wide range of sizes from 315 mm. up to 1250 mm. flange diameter. This reel type is manufactured according to DIN 46397 & 46395.
Product dimension
d1
|
d2 | d3 | d4 | d5 | e | l1 | l2 | Vol. dm3 |
400 | 160 | 112 | 56 | 16 to 28 | 112 | 300 | 250 | 26.3 |
400 | 200 | 112 | 56 | 16 to 28 | 112 | 236 | 200 | 18.8 |
450 | 180 | 112 | 56 | 16 to 28 | 112 | 335 | 280 | 37.4 |
450 | 224 | 112 | 56 | 16 to 28 | 112 | 265 | 224 | 26.8 |
500 | 200 | 112 | 56 | 16 to 28 | 140 | 375 | 315 | 51.9 |
500 | 250 | 112 | 56 | 16 to 28 | 140 | 300 | 250 | 36.8 |
560 | 224 | 112 | 56 | 16 to 28 | 140 | 425 | 355 | 73.4 |
560 | 280 | 112 | 56 | 16 to 28 | 140 | 335 | 280 | 51.7 |
630 | 250 | 112 | 56 | 16 to 28 | 140 | 475 | 400 | 105.1 |
630 | 315 | 112 | 56 | 16 to 28 | 140 | 375 | 315 | 72.5 |
710 | 355 | 160 | 80 | 28 to 40 | 160 | 530 | 450 | 133.6 |
800 | 400 | 160 | 80 | 28 to 40 | 160 | 600 | 500 | 188.5 |
900 | 450 | 160 | 80 | 28 to 40 | 160 | 670 | 660 | 267.2 |
1000 | 500 | 160 | 80 | 28 to 40 | 160 | 750 | 630 | 371.1 |
1120 | 560 | 160 | 80 | 28 to 40 | 160 | 850 | 710 | 524.6 |
1250 | 630 | 160 | 80 | 28 to 40 | 160 | 950 | 800 | 732.4 |
Product dimension
d1
|
d2 | d3 | d4 | d5 | e | l1 | l2 | Vol. dm3 |
400 | 160 | 112 | 56 | 16 to 28 | 112 | 300 | 250 | 26.3 |
400 | 200 | 112 | 56 | 16 to 28 | 112 | 236 | 200 | 18.8 |
450 | 180 | 112 | 56 | 16 to 28 | 112 | 335 | 280 | 37.4 |
450 | 224 | 112 | 56 | 16 to 28 | 112 | 265 | 224 | 26.8 |
500 | 200 | 112 | 56 | 16 to 28 | 140 | 375 | 315 | 51.9 |
500 | 250 | 112 | 56 | 16 to 28 | 140 | 300 | 250 | 36.8 |
560 | 224 | 112 | 56 | 16 to 28 | 140 | 425 | 355 | 73.4 |
560 | 280 | 112 | 56 | 16 to 28 | 140 | 335 | 280 | 51.7 |
630 | 250 | 112 | 56 | 16 to 28 | 140 | 475 | 400 | 105.1 |
630 | 315 | 112 | 56 | 16 to 28 | 140 | 375 | 315 | 72.5 |
710 | 355 | 160 | 80 | 28 to 40 | 160 | 530 | 450 | 133.6 |
800 | 400 | 160 | 80 | 28 to 40 | 160 | 600 | 500 | 188.5 |
900 | 450 | 160 | 80 | 28 to 40 | 160 | 670 | 660 | 267.2 |
1000 | 500 | 160 | 80 | 28 to 40 | 160 | 750 | 630 | 371.1 |
1120 | 560 | 160 | 80 | 28 to 40 | 160 | 850 | 710 | 524.6 |
1250 | 630 | 160 | 80 | 28 to 40 | 160 | 950 | 800 | 732.4 |
