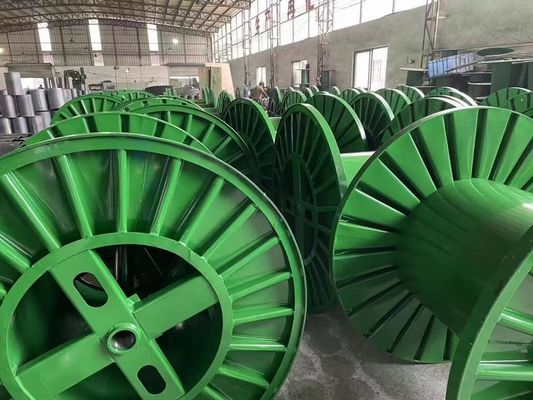

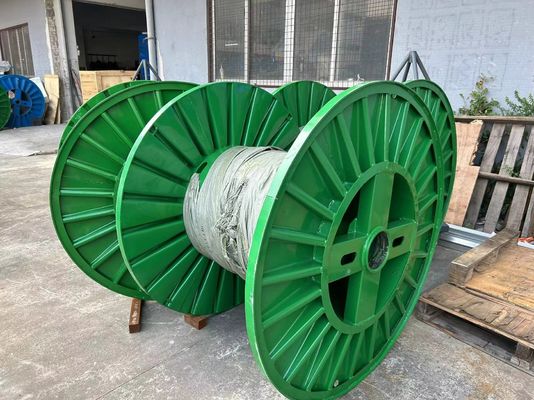

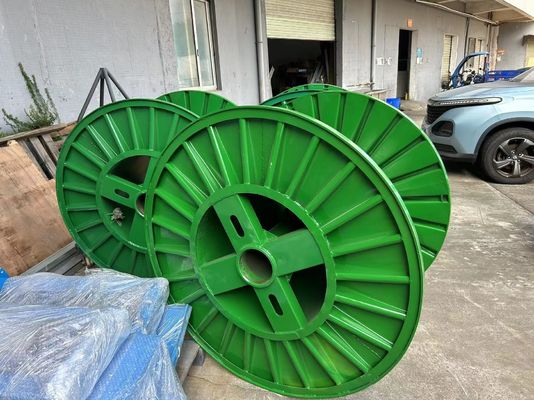

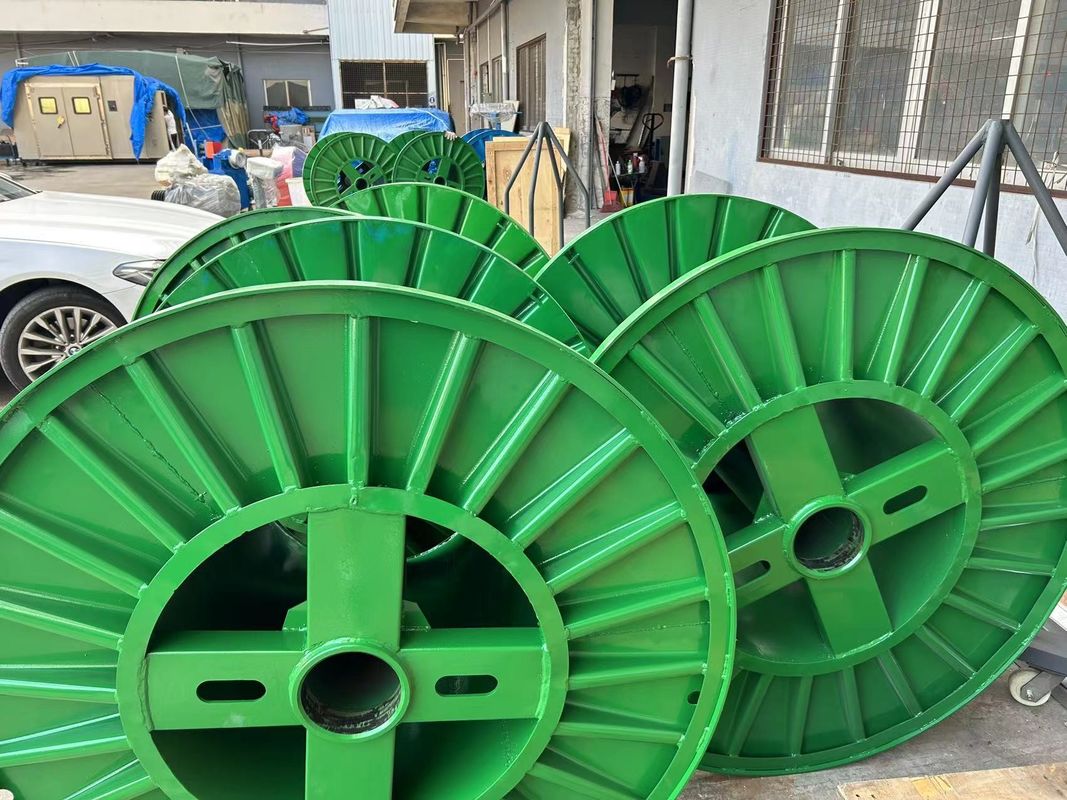

Customized 1250mm Corrugated Bobbin , Steel Cable Reeling Drum
Product Details:
| Place of Origin: | Dongguan,china |
| Brand Name: | Hongli |
| Certification: | CE,ISO |
| Model Number: | YY-1250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 set |
|---|---|
| Price: | 200$-250$ |
| Packaging Details: | wooden packing |
| Delivery Time: | 10-30 days |
| Payment Terms: | T/T, L, L/C |
| Supply Ability: | 1000 set per month |
|
Detail Information |
|||
| Name: | Corrugated Bobbin | Bobbin Size: | 1250mm |
|---|---|---|---|
| Bobbin Type: | Corrugated | Material: | Steel |
| Weight: | 80kg | ||
| High Light: | Customized Corrugated Bobbin,1250mm Corrugated Bobbin,Steel Cable Reeling Drum |
||
Product Description
About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, bobbin, laser cutting machine, pipe production line,cable tapping machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,
Main brands for our machine
- Motor: SIEMENS, DONGGUAN MOTOR,
- Inverter: YASKAWA, INOVANCE, SIEMENS,
- PLC: Siemens
- Touch Screen: Siemens
- Low-voltage electrical components: Schneider
- Bearings: NSK
Technical Parameter
| Serial Number | Specification Model | Lateral Plate Diameter D1 | Major Diameter D2 | Axle Hole Diameter D4 | Carrying Hole Diameter D5 | Center Distance E of Axle Hole and Carrying Hole | External Width L1 | Internal Width L2 |
| 1 | 800 | 800 | 400 | 80 | 40 | 160 | 600 | 500 |
| 2 | 1000 | 1000 | 500 | 80 | 40 | 160 | 750 | 630 |
| 3 | 1120 | 1120 | 560 | 80 | 40 | 160 | 850 | 710 |
| 4 | 1250 | 1250 | 630 | 80 | 40 | 160 | 950 | 800 |
| 5 | 1400 | 1400 | 710 | 80 | 65 | 300 | 1060 | 900 |
| 6 | 1600 | 1600 | 800 | 80 | 65 | 300 | 1180 | 1000 |
| 7 | 1800 | 1800 | 1000 | 100 | 65 | 300 | 1320 | 1120 |
| 8 | 2000 | 2000 | 1120 | 1235 | 65 | 300 | 1500 | 1250 |
| 9 | 2240 | 2240 | 1250 | 125 | 65 | 300 | 1700 | 1400 |
| 10 | 2500 | 2500 | 1500 | 125 | 65 | 300 | 1900 | 1600 |
| 11 | 2800 | 2800 | 1800 | 140 | 65 | 300 | 2120 | 1800 |
| 12 | 3150 | 3150 | 2000 | 160 | 65 | 500 | 2300 | 2000 |
| 13 | 4000 | 4000 | 2800 | 200 | 80 | 500 | 2300 | 2000 |
