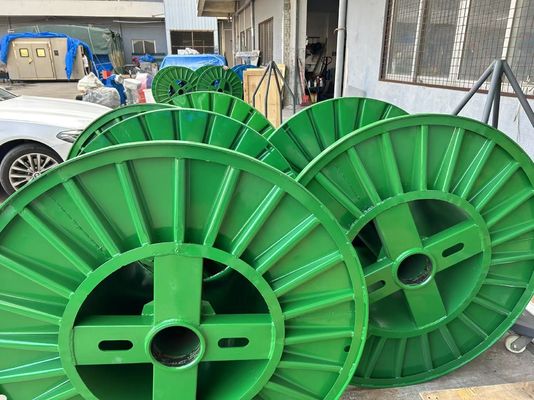

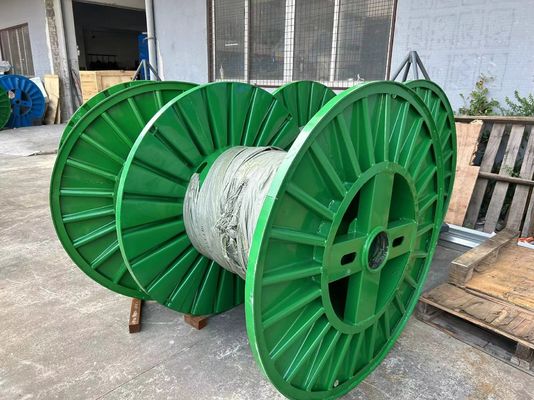

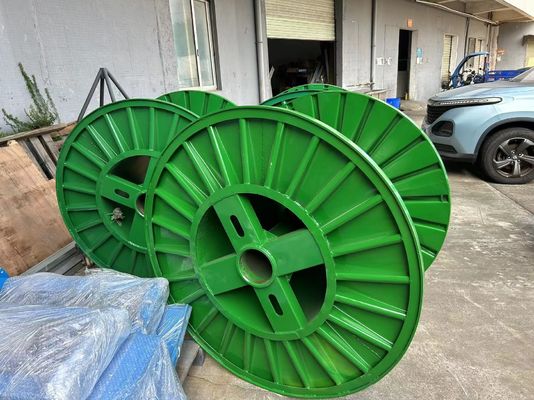

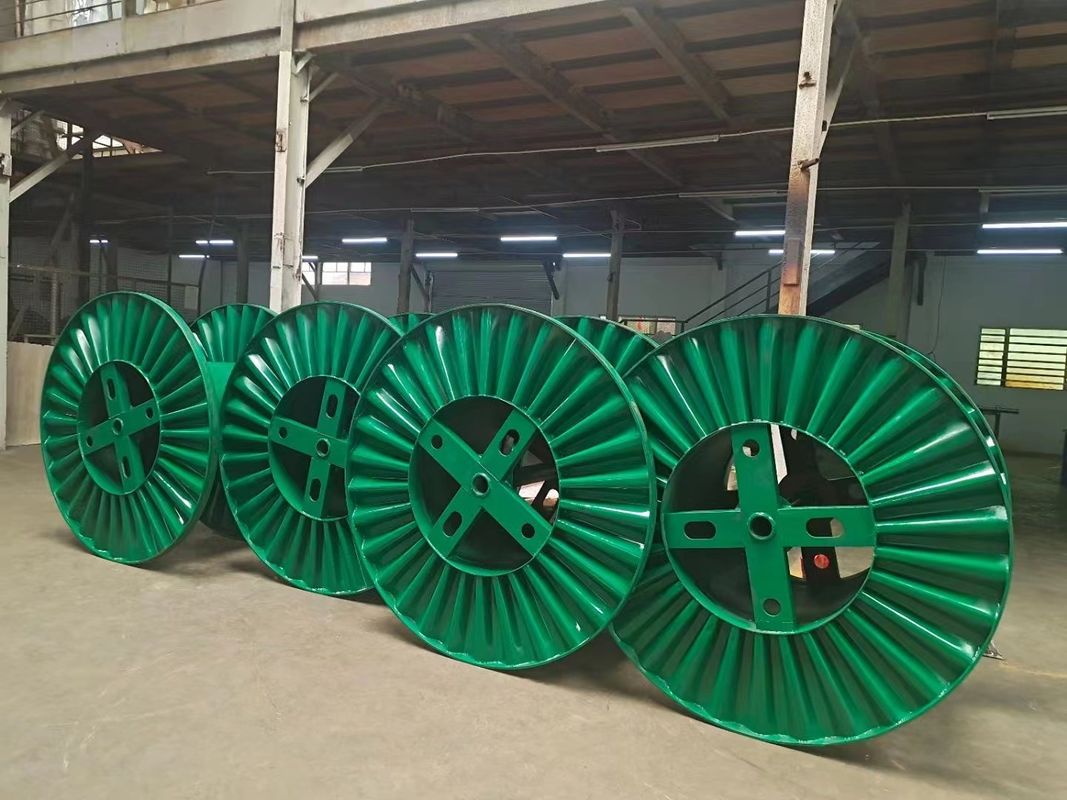

80kg Metal Cable Drum , Steel Corrugated Bobbin 1250mm For Strand Walking Reel
Product Details:
Place of Origin: | Dongguan,china |
Brand Name: | Hongli |
Certification: | CE,ISO |
Model Number: | YY-1250 |
Payment & Shipping Terms:
Minimum Order Quantity: | 10 set |
---|---|
Price: | 200$-250$ |
Packaging Details: | wooden packing |
Delivery Time: | 10-30 days |
Payment Terms: | T/T, L, L/C |
Supply Ability: | 1000 set per month |
Detail Information |
|||
Name: | Metal Cable Drum | Material: | Steel |
---|---|---|---|
Bobbin Size: | 1250mm | Bobbin Type: | Corrugated |
Weight: | 80kg | ||
High Light: | 80kg Metal Cable Drum,Steel Corrugated Bobbin,Corrugated Bobbin 1250mm |
Product Description
Corrugated Metal Cable Wire Bobbin For Strand Walking Reel For Cable 4*2.5
About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, bobbin, laser cutting machine, pipe production line,cable tapping machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,
Main brands for our machine
Technical Parameter
Serial Number | Specification Model | Lateral Plate Diameter D1 | Major Diameter D2 | Axle Hole Diameter D4 | Carrying Hole Diameter D5 | Center Distance E of Axle Hole and Carrying Hole | External Width L1 | Internal Width L2 |
1 | 800 | 800 | 400 | 80 | 40 | 160 | 600 | 500 |
2 | 1000 | 1000 | 500 | 80 | 40 | 160 | 750 | 630 |
3 | 1120 | 1120 | 560 | 80 | 40 | 160 | 850 | 710 |
4 | 1250 | 1250 | 630 | 80 | 40 | 160 | 950 | 800 |
5 | 1400 | 1400 | 710 | 80 | 65 | 300 | 1060 | 900 |
6 | 1600 | 1600 | 800 | 80 | 65 | 300 | 1180 | 1000 |
7 | 1800 | 1800 | 1000 | 100 | 65 | 300 | 1320 | 1120 |
8 | 2000 | 2000 | 1120 | 1235 | 65 | 300 | 1500 | 1250 |
9 | 2240 | 2240 | 1250 | 125 | 65 | 300 | 1700 | 1400 |
10 | 2500 | 2500 | 1500 | 125 | 65 | 300 | 1900 | 1600 |
11 | 2800 | 2800 | 1800 | 140 | 65 | 300 | 2120 | 1800 |
12 | 3150 | 3150 | 2000 | 160 | 65 | 500 | 2300 | 2000 |
13 | 4000 | 4000 | 2800 | 200 | 80 | 500 | 2300 | 2000 |
