Steel Iron Bobbin 630mm-800mm For 630 Bunching Machine Cable 1.5 2.5
Product Details:
Place of Origin: | Dongguan,china |
Brand Name: | Hongli |
Certification: | CE,ISO |
Model Number: | YY-630 |
Payment & Shipping Terms:
Minimum Order Quantity: | 10 set |
---|---|
Price: | 40$-80$ |
Packaging Details: | wooden packing |
Delivery Time: | 15-30 days |
Payment Terms: | T/T, L, L/C |
Supply Ability: | 1000 set per month |
Detail Information |
|||
Name: | Iron Bobbin | Material: | STEEL Iron |
---|---|---|---|
Bobbin Size: | 630mm | Thickness: | Double Layers |
Weight: | 65kg | ||
High Light: | Iron Bobbin 800mm,Iron Bobbin 630mm,Cable Iron Bobbin |
Product Description

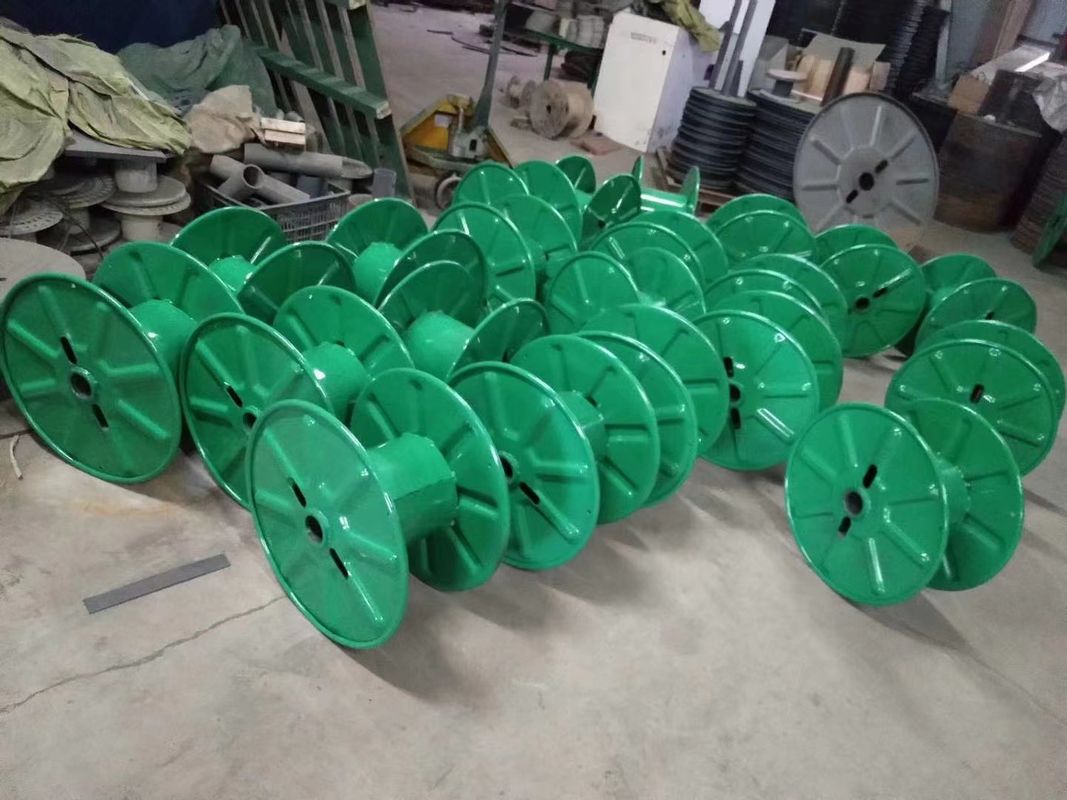

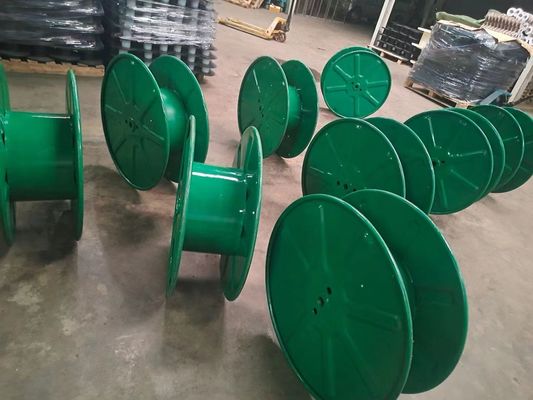

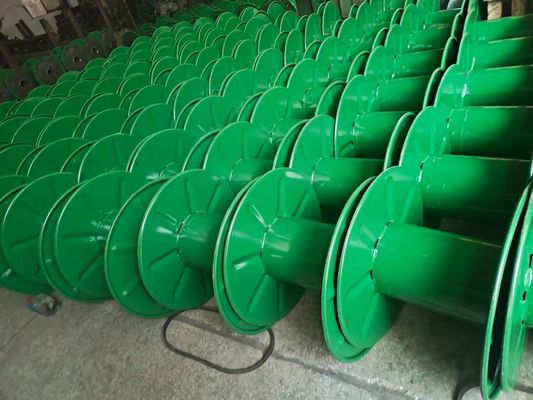

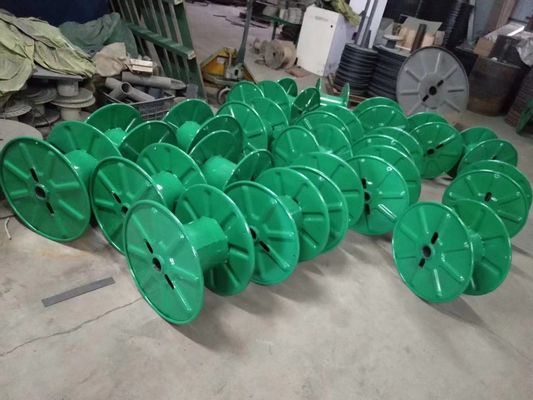

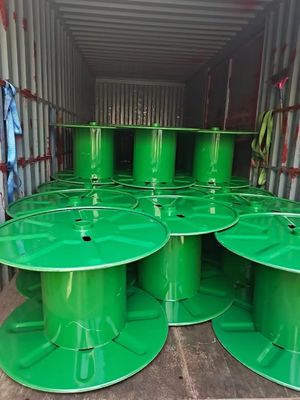

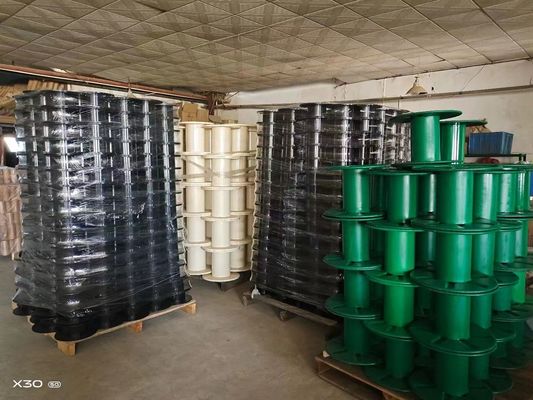

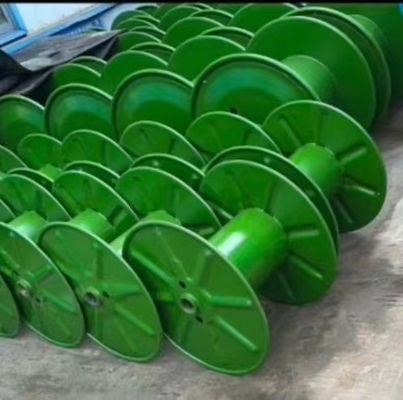

630-800 Steel Iron Bobbin For 630 Bunching Machine Cable 1.5 2.5
About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, bobbin, laser cutting machine, pipe production line,cable tapping machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,
Main brands for our machine
SIZES
A wide range of sizes from 315 mm. up to 1250 mm. flange diameter. This reel type is manufactured according to DIN 46397 & 46395.
Product dimension
d1
|
d2 | d3 | d4 | d5 | e | l1 | l2 | Vol. dm3 |
400 | 160 | 112 | 56 | 16 to 28 | 112 | 300 | 250 | 26.3 |
400 | 200 | 112 | 56 | 16 to 28 | 112 | 236 | 200 | 18.8 |
450 | 180 | 112 | 56 | 16 to 28 | 112 | 335 | 280 | 37.4 |
450 | 224 | 112 | 56 | 16 to 28 | 112 | 265 | 224 | 26.8 |
500 | 200 | 112 | 56 | 16 to 28 | 140 | 375 | 315 | 51.9 |
500 | 250 | 112 | 56 | 16 to 28 | 140 | 300 | 250 | 36.8 |
560 | 224 | 112 | 56 | 16 to 28 | 140 | 425 | 355 | 73.4 |
560 | 280 | 112 | 56 | 16 to 28 | 140 | 335 | 280 | 51.7 |
630 | 250 | 112 | 56 | 16 to 28 | 140 | 475 | 400 | 105.1 |
630 | 315 | 112 | 56 | 16 to 28 | 140 | 375 | 315 | 72.5 |
710 | 355 | 160 | 80 | 28 to 40 | 160 | 530 | 450 | 133.6 |
800 | 400 | 160 | 80 | 28 to 40 | 160 | 600 | 500 | 188.5 |
900 | 450 | 160 | 80 | 28 to 40 | 160 | 670 | 660 | 267.2 |
1000 | 500 | 160 | 80 | 28 to 40 | 160 | 750 | 630 | 371.1 |
1120 | 560 | 160 | 80 | 28 to 40 | 160 | 850 | 710 | 524.6 |
1250 | 630 | 160 | 80 | 28 to 40 | 160 | 950 | 800 | 732.4 |
Product dimension
d1
|
d2 | d3 | d4 | d5 | e | l1 | l2 | Vol. dm3 |
400 | 160 | 112 | 56 | 16 to 28 | 112 | 300 | 250 | 26.3 |
400 | 200 | 112 | 56 | 16 to 28 | 112 | 236 | 200 | 18.8 |
450 | 180 | 112 | 56 | 16 to 28 | 112 | 335 | 280 | 37.4 |
450 | 224 | 112 | 56 | 16 to 28 | 112 | 265 | 224 | 26.8 |
500 | 200 | 112 | 56 | 16 to 28 | 140 | 375 | 315 | 51.9 |
500 | 250 | 112 | 56 | 16 to 28 | 140 | 300 | 250 | 36.8 |
560 | 224 | 112 | 56 | 16 to 28 | 140 | 425 | 355 | 73.4 |
560 | 280 | 112 | 56 | 16 to 28 | 140 | 335 | 280 | 51.7 |
630 | 250 | 112 | 56 | 16 to 28 | 140 | 475 | 400 | 105.1 |
630 | 315 | 112 | 56 | 16 to 28 | 140 | 375 | 315 | 72.5 |
710 | 355 | 160 | 80 | 28 to 40 | 160 | 530 | 450 | 133.6 |
800 | 400 | 160 | 80 | 28 to 40 | 160 | 600 | 500 | 188.5 |
900 | 450 | 160 | 80 | 28 to 40 | 160 | 670 | 660 | 267.2 |
1000 | 500 | 160 | 80 | 28 to 40 | 160 | 750 | 630 | 371.1 |
1120 | 560 | 160 | 80 | 28 to 40 | 160 | 850 | 710 | 524.6 |
1250 | 630 | 160 | 80 | 28 to 40 | 160 | 950 | 800 | 732.4 |
