Continuous 8-17mm Copper Upcast Machine 2000 Tons For Cable 1.5 2.5
Product Details:
| Place of Origin: | Dongguan,china |
| Brand Name: | Hongli |
| Certification: | CE,ISO |
| Model Number: | HL2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 65,00$-100,000$ |
| Packaging Details: | wooden packing |
| Delivery Time: | 60-120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 80 set per year |
|
Detail Information |
|||
| Size: | 2000 T | Copper Size: | 8-17mm Square Mm |
|---|---|---|---|
| Production Speed: | 2400mm/min | Motor Brand: | Siemens |
| Inverter Brand: | Yaskawa | Main Motor: | 80kw+80kw |
| Power Consumption: | 315kwh/ton | Oven Size: | 300kg |
| Capacity: | 6 Tons Per Day | Name: | Copper Upcast Machine |
| High Light: | 17mm Copper Upcast Machine,Copper Upcast Machine 2000 Tons,Continuous Copper Upcast Machine |
||
Product Description
High Quality Continuous 2000 Tons 8-17mm Copper Rod Upcasting Machine From Scrap Copper To 8mm Copper For Cable 1.5 2.5
About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, cable tapping machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,
Main brands for our machine
Brand of parts
| No. | Name | Brand |
| 1, | Servo motor | YASKAWA |
| 2, | Driver | YASKAWA |
| 3, | Frequency converter | Schneider |
| 4, | PLC controller | Mitsubishi |
| 5, | Touch screen | Weinview |
| 6, | Special gearbox | NIAF |
| 7, | Contactor | Schneider |
| 8, | Relay | Schneider |

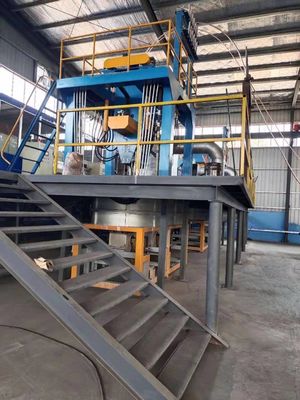

The line is specially used to produce high conductivity oxygen free copper rod. When the mould clamping wheel is changed, it can also produce other specifications of copper rod, copper tube and other cross-section products. The casting specification is copper rod Φ8-20mm, and the daily production capacity is about 6t. The melting furnace adopts one set 300KG / 80kW electric furnace, and the holding furnace adopts one set 80kW electric furnace. The annual output of two connected updraft continuous casting unit is 2000 tons / year. The unit is driven by imported servo motor and loaded with advanced pitch control system in China. Users can directly input pitch length to meet the special requirements of casting process.
Main technical parameters:
Two connected furnace
Rated total power of melting furnace 80KW
Rated power of holding furnace 80KW
Number of continuous casting heads 6
Copper rod doameter: Ф8-20mm
Maximum continuous casting capacity 2000T/Y
Upper leading speed 560-2400mm/min
orking hours per year 7200h
Level tracking accuracy ±2mm
Winding specificati φ700mm×φ1600mm×800mm
Power consumption rate of molten copper ＜345kwh/ton
Power factor 0.95-1
Cooling water pressure 0.25-0.3mpa

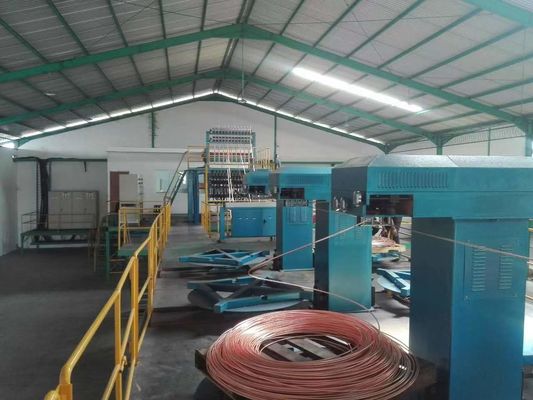

Take up form: frequency conversion synchronous take up (8-12mm with automatic cable arrangement function)
Take up drive mode: reducer motor drive
Up lead drive mode: AC servo motor drive, the transmission chain adopts the synchronous toothed belt drive without clearance
Operation interface: data display and servo motor are controlled by touch screen display

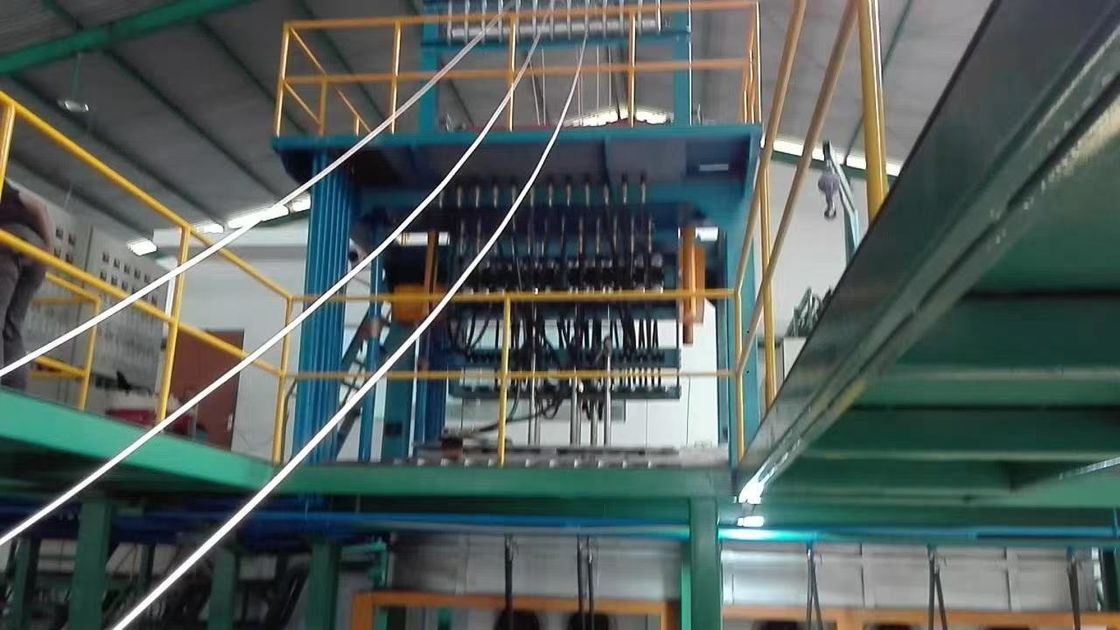

The caster adopts four columns, the motor adopts Yaskawa servo motor of Japan, Mitsubishi PLC programming control, color touch screen operation display, and uses domestic advanced pitch control program to drive the servo motor, so that the system has a wide and convenient speed regulation range, and the precise operation mode can make the control response accuracy reach 0.01s, and the reducer adopts imported high-precision reducer without gap. It can meet the special requirements of updraft continuous casting track. The take-up system adopts advanced synchronous tracking system, tension sensor and copper rod arranged in order, and the take-up amount is more than 3t. The main electrical equipment is Schneider t electric, and the silicon steel sheet is imported from Japan. The products are superior to the domestic similar products.
