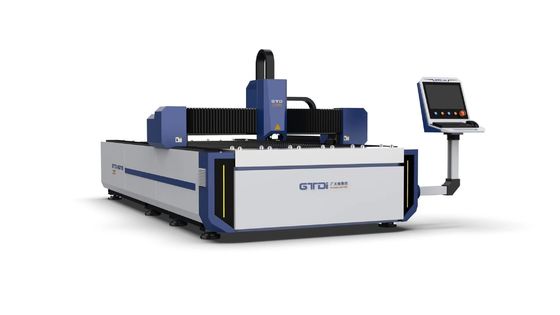

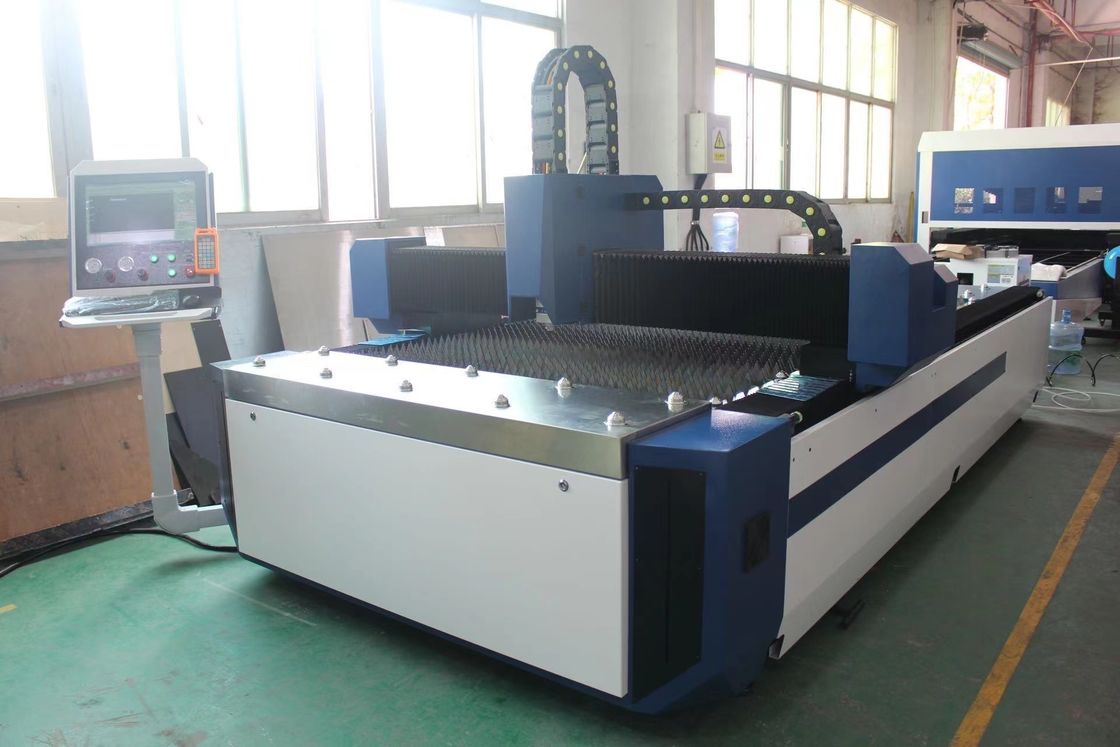

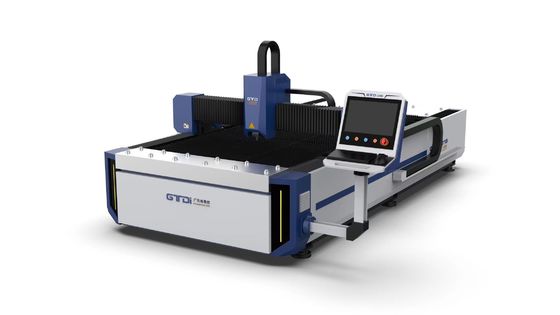

3000w Fiber Laser Cutting Machine Metal Sheet Processing 4550*2300*2000mm
Product Details:
| Place of Origin: | Dongguan,china |
| Brand Name: | Hongli |
| Certification: | CE,ISO |
| Model Number: | YY-3000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 40,00$-60,000$ |
| Packaging Details: | wooden packing |
| Delivery Time: | 25-30 days |
| Payment Terms: | T/T, L, L/C |
| Supply Ability: | 50 set per month |
|
Detail Information |
|||
| Name: | 3000w Fiber Laser Cutting Machine Metal Sheet | POWER: | 3000W |
|---|---|---|---|
| Material Thickness: | Max 6mm | Material: | STEEL |
| Laser Power: | 1000W/1500W/2000W/3000W/4000W/6000W | Max. Linkage Speed: | 140m/min |
| High Light: | 3000w Fiber Laser Cutting Machine Metal Sheet,fiber laser cutting machine 3000w,3000w laser cutting machine |
||
Product Description
Chinese Brand 10mm Carbon Steel Pipes 3000w Fiber Laser Cutting Machine Cutting Metal Sheets Cnc Machine Price For Sale
About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, pipe production line,cable tapping machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,
Standard Configuration of Fiber laser cutting machine:
- German IPG Fiber laser source / China Max laser source ;
- Japan YASKAWA Servo motor with double ball screw driving sytem
- Imported World Famous "Lasermech" laser head with auto focusing
- Automatic Lubrication System for Mechanic
- Taiwan "Hiwin" Ball Screw Rod
- Laser Moving Control Card
- Red Light Pointer
- US imported Focus Lens
- Japan SMC Gas system
- Imported Germany Reducer
Applicable Industries:
Widely applied in thin metal sheets cutting, such as hardware, electronic parts and components, instrument, precision mechanic, glasses, jewelry, sheet metal processing, etc.
Technical Parameters
| Model | YY3015 | |||
| Laser Power | 1000W/1500W/2000W/3000W/4000W/6000W | |||
| Working area | 3000*1500mm / 4000*2000mm / 6000*1500mm / 6000*2000mm / 6000*2500mm | |||
| Machine overall dimensions | 4550*2300*2000mm | |||
| Machine weight | 3600kg | |||
| Max. linkage speed | 140m/min | |||
| Max. acceleration | 1.5G | |||
| Positioning accuracy | 0.03mm | |||
| Repositioning accuracy | 0.02mm | |||
Laser Description
| No. | Description | Brand | Origin |
| 1 | Machine main body | DURAMA | China |
| 2 | CNC operationg carbinet | DURAMA | China |
| 3 | Smoke dust sucking structure | DURAMA | China |
| 4 | air conditioning cabinet | DURAMA | China |
| 5 | Fiber Laser | IPG-700W | Germany |
| 6 | Laser cutting head | RayTools | Swiss |
| 7 | laser chiller | Han's/S&A | China |
| 8 | CNC system | CypCut | China |
| 9 | Capacitive THC | CypCut | China |
| 10 | Servo motor | S,chneider | France |
| 11 | Gear rack | YYC/ Level 6 precision | Taiwan |
| 12 | Linear Guide | Hiwin | Taiwan |
| 13 | Precision reducer | Shimpo | Japan |
| 14 | Proportional valve | SMC | Japan |
| 15 | high-pressure valve | SMC | Japan |
| 16 | Electronic pieces | S,chneider | France |
| 17 | Solenoid valve | SMC | Japan |
| 18 | Cutting software | CypCut | China |
