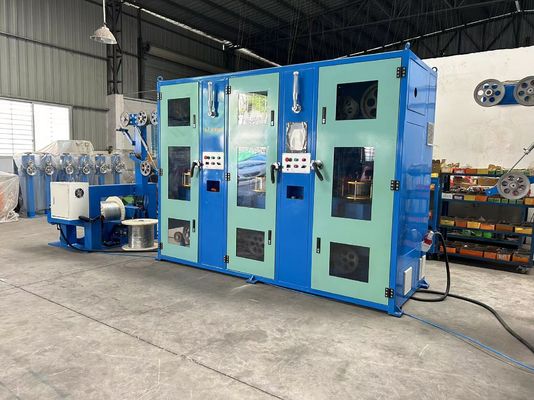

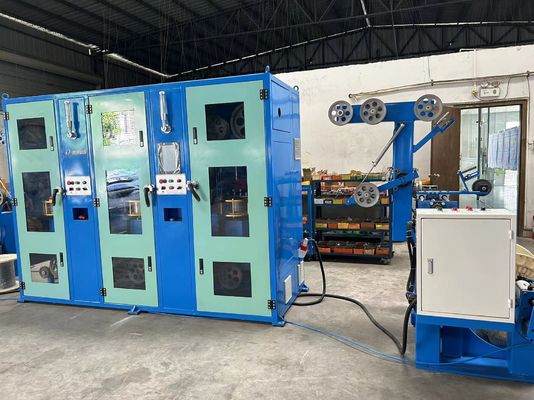

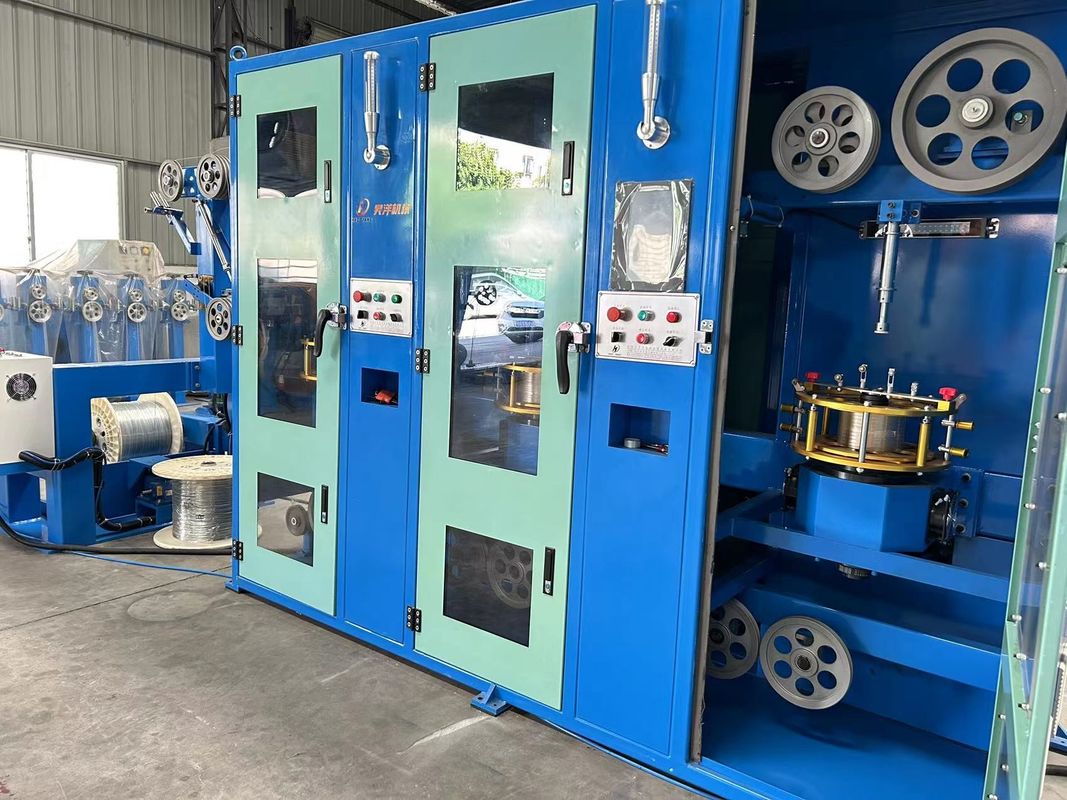

Vertical Automatic Copper Tapping Machine 2500RPM-3000RPM Cable Wrapping Machine
Product Details:
| Place of Origin: | Dongguan |
| Brand Name: | Hongli |
| Certification: | CE,ISO |
| Model Number: | 630mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 25,00$-35,000$ |
| Packaging Details: | wooden packing |
| Delivery Time: | 20-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 set per month |
|
Detail Information |
|||
| Name: | Copper Tapping Machine | Size: | 630 |
|---|---|---|---|
| Rotation Speed: | 2500RPM-3000RPM | Tapping Spitch: | 5～20mm |
| Motor Brand: | Siemens | Cable Size: | 1-6mm |
| Inverter Brand: | Yaskawa | Production Speed: | 5～30m/min |
| Motor: | 1HP | ||
| High Light: | Vertical Copper Tapping Machine,Automatic Copper Tapping Machine,3000RPM Cable Wrapping Machine |
||
Product Description
Chinese Brand Vertical Automatic Single Double Three Layer Wire Cable Tapping And Wrapping Machine For Cable 1mm To 10mm
About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, cable tapping machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,
Main brands for our machine
| Type | 630mm | 500mm |
| Core specification | AWG32-AWG20 | |
| Wrapping material | Aluminum foil wrap, myra wrap, cotton paper wrap, transparent wrap, mica wrap | |
| Max rpm | Max2000rpm/Max28m/min | |
| Power | Adjust the speed by 1HP motor driver, taping drum and directs motor linkage | |
| Wrapping tension | Taping tension keep constant from start to end | |
| Take-up tension | Take-up tension keep constant from start to end | |

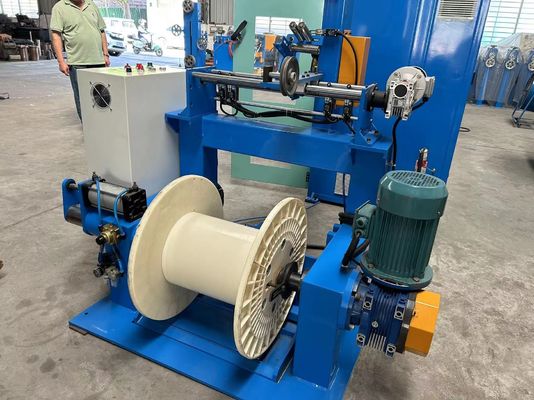

| Traversing type | Shaft arrange take-up, no damage in produces, the size could be established by yourself | |
| Pay-off type | Linear slide rail+ slider pay-off tension type motive heavy, double-frequency speed, break protection function | |
| Shaft of take-up | 300-500general shaft | |
| Shaft of pay-off | 400-630 general shaft | |
| Machine weight | 1500KG | 1300KG |
Application:

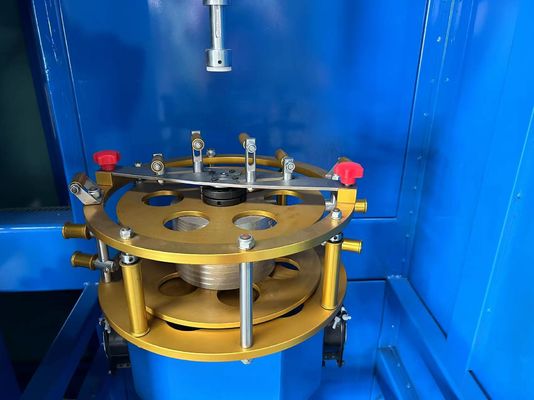

This machine is a vertical double-layer paper wrapping machine, which rotates the wrapping tape (paper tape, aluminum foil, etc.) through the rotary plate and wraps it on the core wire, with a single wrapping head. It is mainly used for wrapping mica tape of insulated wire core such as wire, force cable, control cable and optical cable. Refractory wire and cable are mainly used in power plants, airports, ships, high-rise buildings, subways, underground streets and entertainment places. Popularly sold in Turkey, Pakistan, egypt, sudan,algeria .
