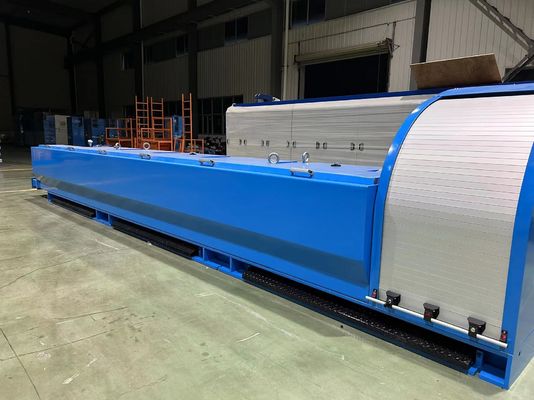

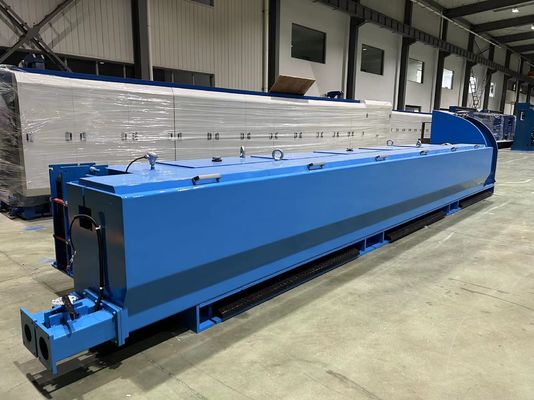

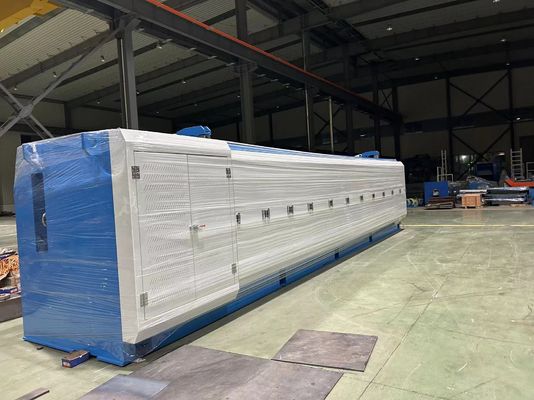

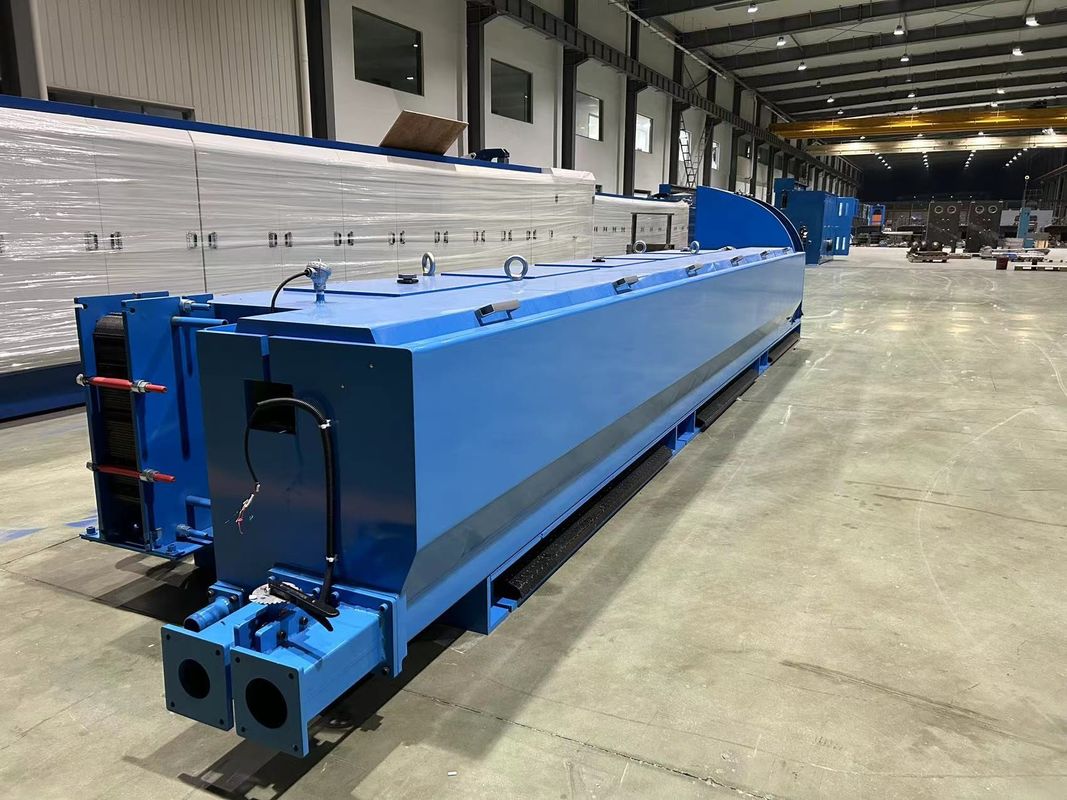

Siemens Motor 1350m/min Copper Rod Breakdown Machine With Annealer
Product Details:
| Place of Origin: | ISO9001:2008 |
| Brand Name: | Hongli |
| Certification: | CE ,ISO9001 |
| Model Number: | DL450-13-5000A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 250,000-350,000$ |
| Packaging Details: | wooden pacakge |
| Delivery Time: | 90-150 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 set /year |
|
Detail Information |
|||
| Name: | Copper Rod Breakdown Machine With Annealer | Main Motor: | 132kw |
|---|---|---|---|
| Output: | 1.0-3.5mm | Max Speed: | 1350 Meter/min |
| Motor Brand: | Siemens | Inverter Brand: | Yaskawa |
| Inlet Size: | 8mm | ||
| High Light: | 1350m/min Copper Rod Breakdown Machine,Copper Rod Breakdown Machine With Annealer |
||
Product Description
High Speed Copper Wire Drawing With 132kw Siemens Motor Rod Breakdown Machine From For Cable 1.5 2.5 Production
About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,
Main brands for our machine
technical Parameters
| Model | DLT450/13D-5000A | DL400/9D | DLT400/11D |
| Max inlet diameter | 1.2-3.0mm | 2.6-3.0mm | 1.6 - 3.5 mm |
| Outlet diameter range | 180 | 280-600 | 10,16,25,35, |
| Max die number | 13 | 9 | 11 |
| Max line speed | 1300m/min | 800m/min | 1350m/min |
| Main motor power | 132kw | 160kw | 185kw |
| Capstan motor power | 55kw | / | 55kw |
| Gear & bearing lubrication method | The oil pump forces to give the oil | The oil pump forces to give the oil | The oil pump forces to give the oil |
| Elongation | 1st - 12th: 20-40%, 13th: 10-30% | 1st - 8th: 31.7%, 9th: 13-30% | 1st - 10th: 31.7%, 11th: 10-30% |
| Annealing wheel diameter | 450 mm | 400 mm | 400 mm |
| Annealing wheel number | 4 pcs | / | 4 pcs |
| Max annealing current | 5000 A | / | 4000 A |
| Max annealing voltage | 60 V | / | 60 V |
| Annealing capacity | 400 KVA | / | 400 KVA |
| Total installed power | 780 KVA | 130 KVA | 650 KVA |
| Power supply | 380V, 50HZ | 380V, 50HZ | 380V, 50HZ |
| Machine dimension | L20000 x W5000 x H4000 mm | L12000 x W4500 x H4000 mm | L16000 x W5000 x H4000 mm |
| Brake method | Air disk type | Air disk type | Air disk type |
| Dies changing method | Fast type | / | Fast type |
Production speed
| Wire size | The max speed of annealing |
capacity (Kg/h) |
Annealing elongation |
Wire tolerance |
| Φ1.60mm | 1300m/mim | 1394 | 25～33% | ±0.01d |
| Φ1.77mm | 1200m/mim | 1576 | 25～33% | ±0.008d |
| Φ2.25mm | 1000m/mim | 2122 | 25～33% | ±0.008d |
| Φ2.60mm | 800m/mim | 2267 | 25～33% | ±0.008d |
| Φ3.0mm | 650m/mim | 2453 | 25～33% | ±0.008d |
| Φ3.5mm | 480m/mim | 2465 | 25～33% | ±0.008d |
YY450-11 Continuous annealing machine Equipment Parameter
1.pay off machine
2.HA 450-11 Large wire drawing machine (with control box)

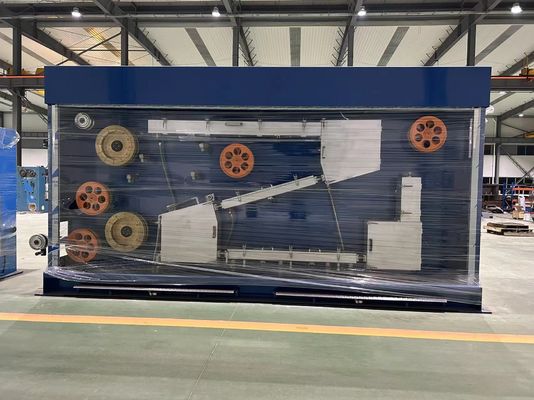

3.5000A AC continuous annealing machine (with control box)
4.Pneumatic tension frame
5.630 double disc take-up machine
6.18 Kva Steam generator
7. Φ350 mm Tie punch machine
8. UN75 Butt welder machine
