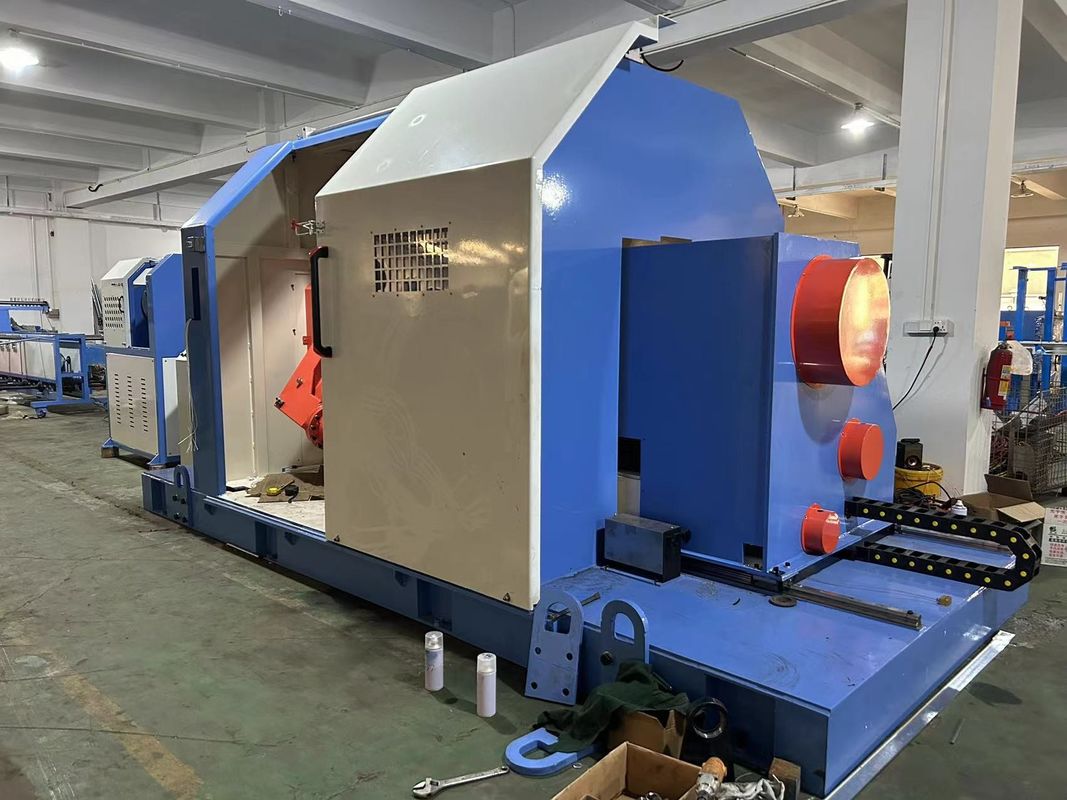

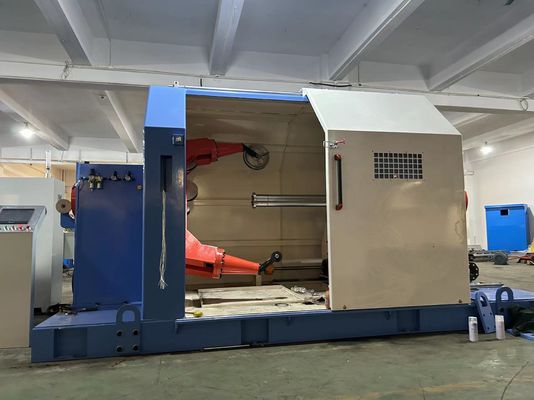

High Speed Double Twist Wire Bunching Machine , 1250 Cable Stranding Machine
Product Details:
| Place of Origin: | ISO9001:2008 |
| Brand Name: | Hongli |
| Certification: | CE |
| Model Number: | 1250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 60,000-85,000$ |
| Packaging Details: | wooden pacakge |
| Delivery Time: | 40-60 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 set /month |
|
Detail Information |
|||
| Main Motor: | 22kw | Motor Brand: | Siemens |
|---|---|---|---|
| Inverter Brand: | Yaskawa | Cable Size: | 4*1.5,4*2.5,4*4,4*6,4*10,4*16 |
| Pitch: | 30-400mm | Pitch Control: | PLC Touch Screen |
| Copper Size: | 7*1.38mm,7*1.76mm | Name: | Cable Twisting Machine |
| High Light: | High Speed Wire Bunching Machine,Double Twist Wire Bunching Machine,1250 Cable Stranding Machine |
||
Product Description
1250 High Speed Double Twist Wire Bunching Machine and Cable Stranding Machine
About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,
Main brands for our machine
Technical parameters sheet:
| Machine model | HL400 | HL500 | HL630 | HL800 | HL1000 | HL1250 | |
| wire size. | Φ0.5-2mm | Φ1-3mm | Φ1-5mm | Φ1-5mm | Φ1-5mm | Φ1-5mm | |
| Application | for copper and cable twisting | ||||||
| suitable wire | single copper, cable, twisted copper | ||||||
| pitch(mm) | 15-60 | 20-200 | 20-250 | 30-350 | 30-400 | 30-500 | |
| Driven power | 3.7kw | 5.5kw | 11kw | 15kw | 18.5kw | 22kw | |
| Rotation speed(r/min) | 1200 | 1000 | 800 | 600 | 500 | 450 | |
| traversing pitch | 2-12 | 2-12 | 3-20 | 3-20 | 3-30 | 3-35 | |
Technical Parameters of twisting machine

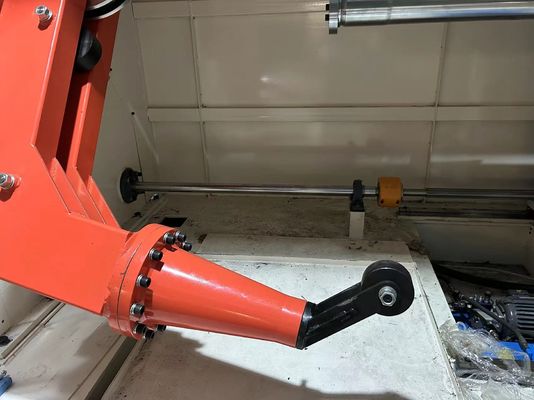

- Feature:The machine uses a cantilever into a cable strands, No traction design, take up axis take up direct.take up tension=pay off tension+Over the line resistance;Motor row the line+Ball screw driven take-up reel mobile cable,Row from the row width can be adjustable by computer,the speed is fast, take up tension is small, twisting distance is stable, twisting wire is high quality.
2.Uses；It's use for different kind of power cable, electrical cable, 5,6,7 type data cable, communications cable and the other high speed and special cable into a cable.Completed center package with side to put the package with.

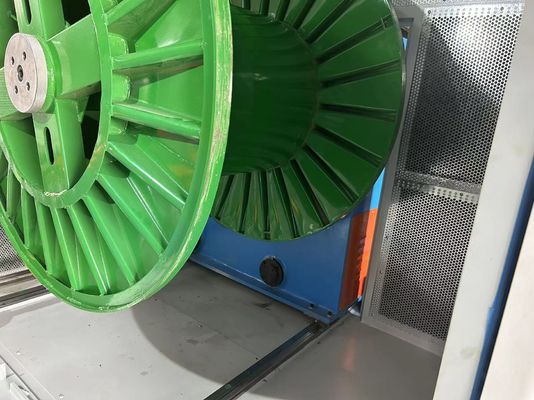

3. The size of the winding shaft:φ1250mm
4.Applicable wire size:φ1.0mm-φ7.0mm
5.Twisting diameter:Maxφ30mm
- Twisting distance:30mm~400mm,PLC stepless , fully computerized control twist pitch.
- Traverse pitch；3mm~30mm,PLC stepless , fully computerized control twist pitch.
- The speed:Max 400RPM
9.Driver powder: Main machine 30HP, take up 7.5HP, row the line 2HP, raping 2HP:Siemens motor, Inverter:yaskawa
10.Brake:take up and main machine are used pneumatic pressurized hydraulic disc brakes(Taiwan Shiyi)
11.Take up box；The installation of the planetary differential mechanism,The closing line speed can accurately track changes in the speed of the host,protect the twisting distance stable.
12.Electrical wrapping machine:
1) The direction of wrapping cann be changeable from S to Z.
2) Ribbon turnplate: Diameter:250mm, width:10-30mm, diameter of hole:50mm.
Electrical control:The programmable controller (PLC) and human-machine
interface , automatic control,The main operating parameters from Automatically
track and display.Set a few meters , meters to automatically shut down select ,
break downtime select,Switches , buttons, lights days in Taiwan.
14.Equipment constitute:
Main twisting machine 1 set
Wrapping machine: 1 set
Electrical box:1 set
Die of feeding wire: 1 suit
15.Prepare goods spare parts
Tool box and tool: 1 case
Introduction of use: 1 set
