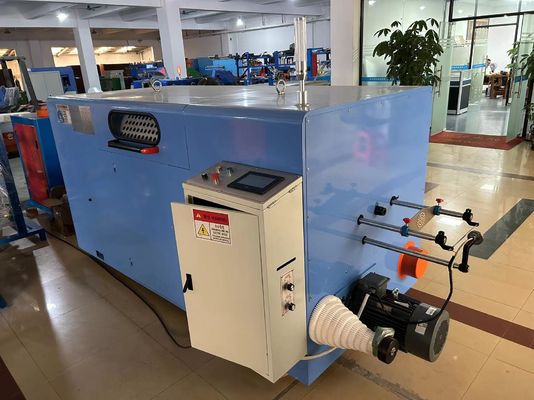

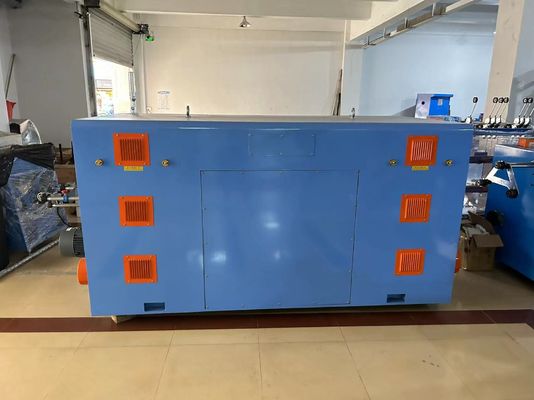

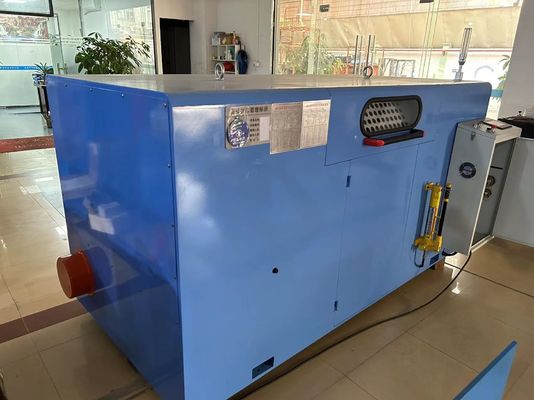

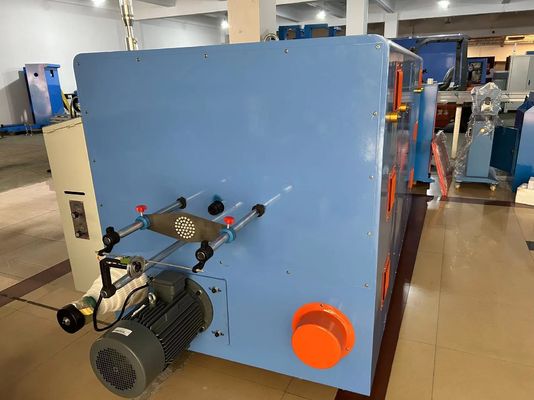

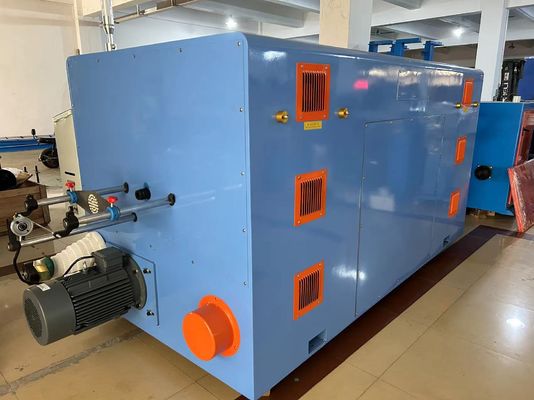

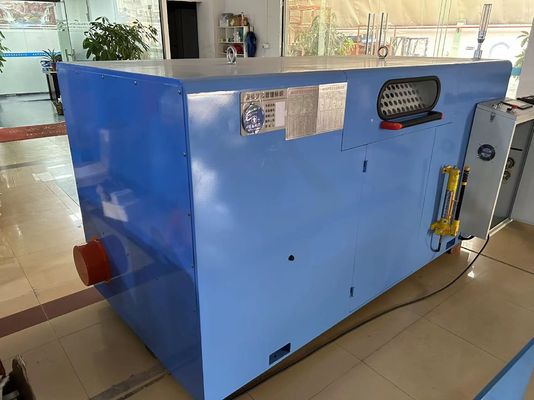

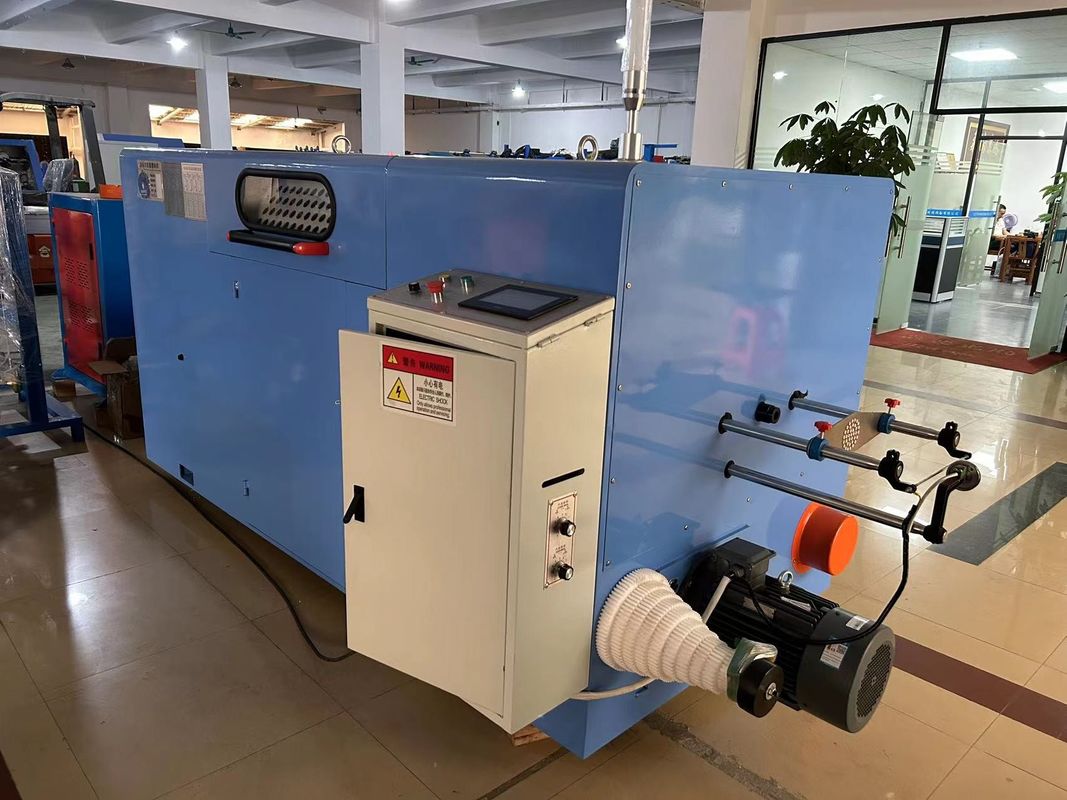

0.08-1.04mm Electrical Copper Wire Bunching Machine Double Twist

0.08-1.04mm Electrical Copper Wire Bunching Machine Double Twist

Product Details:

Place of Origin: Dongguan
Brand Name: Hongli
Certification: CE,ISO
Model Number: 630

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 12,000$-15,000$
Packaging Details: wooden packing
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 10 set per month
Get Best Price Contact Now

Detail Information

Name: Copper Wire Bunching Machine Size: 630
Copper Diameter: 0.08-1.04mm Motor Power: 7.5kw
Motor Brand: Siemens Inverter Brand: Yaskawa
Length Of Machine: 8 Meters Cable Size: 0.5,0.75,1.5,2.5,4,6
Rotation Speed: 2500RPM
High Light:

1.04mm Copper Wire Bunching Machine


Electrical Copper Wire Bunching Machine

Product Description

Electrical Cable Copper Wire 0.5-6mm Bunching Double Twister Stranding Machine


About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,


Main brands for our machine

- PLC: Siemens
- Touch Screen: Siemens
- Low-voltage electrical components: Schneider
- Bearings: NSK or SKF

Technical parameters sheet:

Machine model HL300 HL500 HL630 HL800 HL1000 HL1250
Copper wire spec. Φ0.05-0.16mm Φ0.08-0.41mm Φ0.12-0.64mm Φ0.38-1mm Φ0.4-2.14mm Φ0.5-2.7mm
Application Applicable to over 7 pcs copper twisting,
material copper,tin plated wire, enamelled wire, aluminum wire
Number of copper 1+6+12 1+6+12 1+6+12 1+6+12 1+6
Driven power 5 HP 5 HP 10 HP 15 HP 30 HP 40HP
Max. size 0.3,0.5 0.5,0.75, 1.5,2.5 4,6 10,16 25,35
Rotation speed 3000RPM 2200RPM 1800RPM 1200RPM 1000RPM 800RPM


I. Application of the equipment: It is suitable for stranding of the copper wires with more than seven strands, such as electronic wires, power wires, bare copper wires, network wires, etc.


II. Creel stand (separately charged)

1) Vertical type (with an adjustable tension)

a: It is put on a side of the equipment. It may have 12 or 24 heads. The paying-off tray has a maximum outer diameter of 8″.

2) Horizontal type (with an adjustable tension)

b: It is put on a side of the equipment too. It may have 6 or 12 heads. The paying-off tray has an outer diameter of 400 to 630.


II. Structure of wire entering

1) After being paid off from the creel stand, all the wires will first enter a distributor 0.08-1.04mm Electrical Copper Wire Bunching Machine Double Twist 0plate via a group of idler pulleys and then the die for stranding.


IV. Performance and parameters of the equipment:

  • Model:

Right-hand model: The operator faces its front and the wires enter it from its right side. ( )

  • Rotation speed of arched band: Max: 1800RPM. The arched band is a of idler pulley type.
  • Lay: 11.15mm-60.24mm (it may be properly adjusted as requested by the customer). It is subject to manual gear-type changes.
  • Calculation of the stranded length: m/min=lay*2/1000*stranding speed per minute
  • Direction of lay: Leftward or rightward
  • Diameter of each feed line: Ø0.16mm-Ø1.0mm
  • Stranding area: 0.4 mm2-5.5 mm2
  • Wire arrangement: German type polished rod wire arranging device with adjustable throw of traverse and distance
  • Spindle lubrication: Manual grease feeding through a grease gun
  • Driving motor: It consists of an AC 380V 1400RPM The teco motor for driving10HP 10HP American Emerson converter and can realize stepless speed regulation.
  • Braking: electromagnetic brake that can realize automatic braking through internal and external disconnection
  • Disconnection protection: Automatic stop and alarming upon internal and external disconnection
  • Inching: The inching button on the exterior of the electric console
  • Speed display: The tachometer on the control panel
  • Electrical control: The setup and operations of the electrical parameters of the equipment are all done through the control panel.
  • External power line: The user should connect the external power line with the electric cabinet.
  • Alarm light: Red
  • Meter counter: Six-digit electronic meter counter
  • Electric elements: National or international famous brands
  • Bearings: Bearings imported with original packaging from Japan and Germany (such as KOYO, NSK and FAG)
  • Internal accessories: National or international famous brands
  • Noise: < 75dp (measured 1000mm away)
  • Ambient humidity: ≤ 90% (if it is larger than 90%, dry it by blowing before starting the equipment)
  • Workshop temperature: ≤40℃ (if it is higher than 40℃, the converter will undergo automatic protecting tripping)
  • Floor area: L3100*W1800*H1700MM
  • Color of the housing: Apple green (as requested by the customer)


V. Wire rewinding structure

1) Bobbin: Standard bobbin: (outer diameter) Ø630* (outer width) 375* (inner hole) Ø56; pine hole: Ø25; distance to the bobbin hole: 99mm (max.) or 83mm (min.)(it may be customized too)

2) Tension: There is a manual mechanical tension regulation system that is mainly used for regulating the pressures of springs.3) Loading and unloading of the bobbin: The bobbin has a hydraulically hoisted iron shaft and can therefore be loaded and unloaded conveniently and flexibly.

0.08-1.04mm Electrical Copper Wire Bunching Machine Double Twist 10.08-1.04mm Electrical Copper Wire Bunching Machine Double Twist 20.08-1.04mm Electrical Copper Wire Bunching Machine Double Twist 30.08-1.04mm Electrical Copper Wire Bunching Machine Double Twist 40.08-1.04mm Electrical Copper Wire Bunching Machine Double Twist 50.08-1.04mm Electrical Copper Wire Bunching Machine Double Twist 6
