Customized Wear Resistant Tungsten Carbide Wire Drawing Dies / Polycrystalline Diamond Dies
Product Details:
| Place of Origin: | Dongguan |
| Brand Name: | Hongli |
| Certification: | CE |
| Model Number: | drawing machine |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | 60$-120$ |
| Packaging Details: | wooden packing |
| Delivery Time: | 20-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10,000pcs set per month |
|
Detail Information |
|||
| Features: | High Speed, Energy Saving | Name: | Tungsten Carbide Wire Drawing Dies |
|---|---|---|---|
| Material: | Steel | Type: | Polycrystalline Diamond Die |
| Certification: | CE | Brand: | Hongli |
| High Light: | Customized Tungsten Carbide Wire Drawing Dies,Wear Resistant Tungsten Carbide Wire Drawing Dies,Polycrystalline Diamond Dies |
||
Product Description
Factory Customized Wear-Resistant Tungsten Carbide Wire Drawing Dies For Screw Machines
Product Description

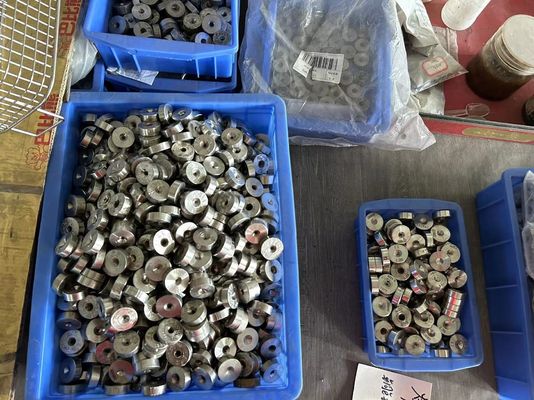

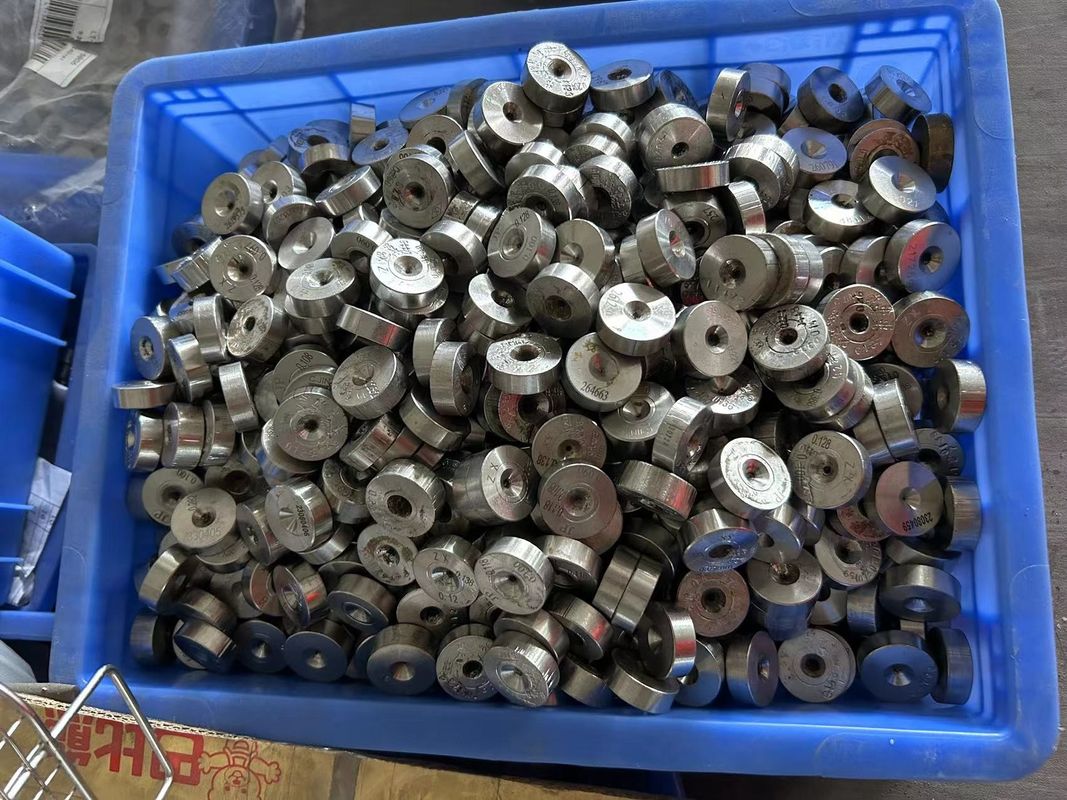

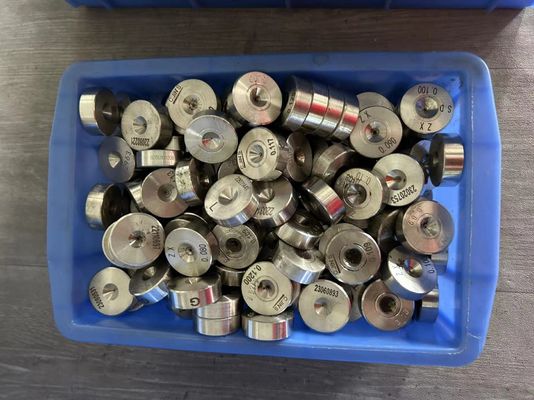

ungsten carbide wire drawing dies are tools with highly-polished, specially-shaped holes through which wire is drawn to reduce its diameter. They have a metal case and a tungsten carbide nib.PCD wire drawing dies are made from metal case and a polycrystalline diamond nib, a synthetic material that provides superior resistance to cracking and wear.
Drawing parameters include measurements such as inlet diameter, bell radius, entrance angle, approach angle, bearing, and back relief. Elongation, the ratio of length after drawing to the length prior to drawing is also an important consideration when choosing wire drawing dies.
When selecting tungsten carbide wire drawing dies, wire material and drawing parameters are important specifications to consider,main wires are:
- low carbon steel wires
- middle carbon steel wires
- high carbon steel wires
- stainless steel wires
- copper wires
- silver wires
- galvanized high-carbon steel
Grade for Tungsten Carbide Punching Dies
Drawing parameters include measurements such as inlet diameter, bell radius, entrance angle, approach angle, bearing, and back relief. Elongation, the ratio of length after drawing to the length prior to drawing is also an important consideration when choosing wire drawing dies.
When selecting tungsten carbide wire drawing dies, wire material and drawing parameters are important specifications to consider,main wires are:
- low carbon steel wires
- middle carbon steel wires
- high carbon steel wires
- stainless steel wires
- copper wires
- silver wires
- galvanized high-carbon steel
Grade for Tungsten Carbide Punching Dies
| Grades | Density g/cm3 |
T.R.S MPa |
Hardness HRA |
Performance & application recommended |
| YG11 | 14.4 | 2600 | 88.5 | Forming or stamping dies for metal powders and nonmetal powders. |
| YG15 | 14.0 | 2800 | 87.5 | For fabricating drawing dies of steel tubes and rods under High compressibility ratio; punching,stamping,forging tools under large stress. |
| YG20 | 13.5 | 3200 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, small sized steel balls, screws, screw caps. |
| YG16C | 13.9 | 2900 | 85.5 | Impact resistance forging dies. |
| YG18C | 13.7 | 3100 | 84.5 | Impact resistance forging dies, hot-press forging dies and rollers. |
| YG20C | 13.5 | 3300 | 83.5 | Dies for wear resistant or impact resistant application. |
| YG22C | 13.3 | 3500 | 83.0 | Nut forming dies and high impact resistance forging dies. |
| YG25C | 13.1 | 3600 | 82.5 | Stainless bolt header dies and rollers. |
