Special PCD Wire Drawing Die Energy Saving For Wire Drawing Machine
Product Details:
| Place of Origin: | Dongguan |
| Brand Name: | Hongli |
| Certification: | CE |
| Model Number: | drawing machine |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | 200 $-500$ |
| Packaging Details: | wooden packing |
| Delivery Time: | 20-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10,000pcs set per month |
|
Detail Information |
|||
| Features: | High Speed, Energy Saving | Name: | PCD Wire Drawing Die |
|---|---|---|---|
| Material: | Steel | Type: | Polycrystalline Diamond Die |
| Certification: | CE | Brand: | Hongli |
| High Light: | Special PCD Wire Drawing Die,PCD Wire Drawing Die Energy Saving |
||
Product Description

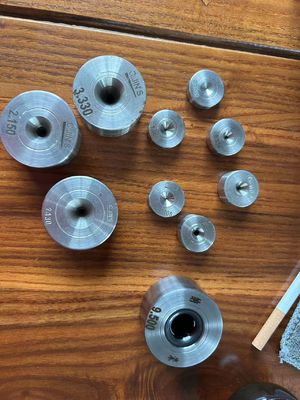

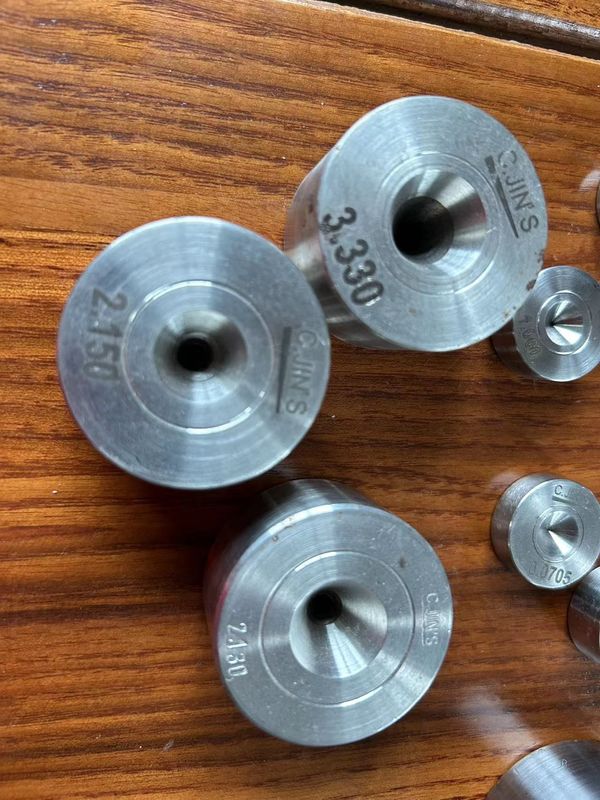

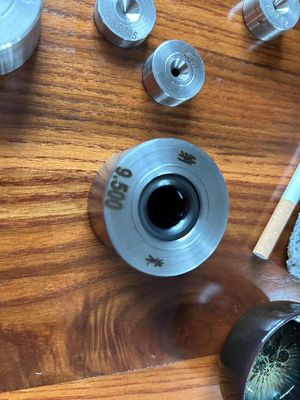

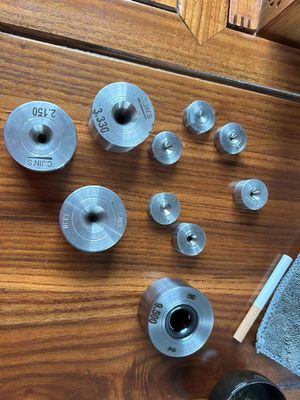

Special PCD Drawing Die For Wire Drawing Machine
Technique Parameter
|
Model Type
|
Fetures
|
Range of application
|
|
Artificial monocrystalline die
|
Natural diamond, good retentivity of hole roundness and stable quality
|
0.01mm-0.70mm
fine wires
|
|
Various shaped artificial diamond dies
|
Good finish, high precision and strong wear resistance
|
Gold & silver jewelery, copper wires, zipper flat wires, tooth flat wires, square CP wires, stainless steel shaped wires and other shaped wires
|
|
Natural diamond drawing die
|
High-precision wire drawing industry and its correct hole
|
0.01mm-1 .5mm
various fine metal wires
|
|
Nano drawing die
|
Forming a CVD diamond coating on the surface of tungsten carbide die
|
Strand wire and the drawing of nonferrous metal like copper, aluminum atc.
|
|
Artificial polycrystalline drawing die
|
Long service life, more repair times and wide range
|
0. 1mm-12.00mm
|
|
Round carbide drawing die
|
High wear resistance and high thermal conductivity
|
0. 15mm-50mm
Drawing of various metal wires, tubings and rods.
|
|
Various shaped carbide dies
|
With high-quality cemented carbide as the raw material
|
Drawing, reducing, scalping and extrusion of copper, alumium, iron, stainless stell, aluminum alloy and other metal wires,tubings and rods
|
|
Standard Tolerance Corresponding To Diameter
|
||
|
Diameter(mm)
|
Tolerance(mm)
|
Maximum out-of-roundness(mm)
|
|
<0.020
|
+0 -1.5%
|
0.5%
|
|
>0.020~0.025
|
+0 -0.0003%
|
0.0002
|
|
>0.025~0.050
|
+0 -0.0004%
|
0.0003
|
|
>0.050-0.075
|
+0 -0.0006%
|
0.0004
|
|
>0.075~0.100
|
+0 -0.0008%
|
0.0004
|
|
>0.100~0.200
|
+0 -0.001%
|
0.001
|
|
>0.200~0.500
|
+0 -0.002%
|
0.0015
|
|
>0.500~1.000
|
+0 -0.003%
|
0.002
|
|
>1.000-2.000
|
+0 -0.004%
|
0.0025
|
|
>2.000~3.500
|
+0 -0.005%
|
0.003
|
|
>3.500~5.500
|
+0 -0.006%
|
0.0035
|
|
>5.500~8.000
|
+0 -0.007%
|
0.004
|
|
>8.000~10.000
|
+0 -0.008%
|
0.0045
|
|
>10.000~12.000
|
+0 -0.010%
|
0.005
|
|
>12.000~15.000
|
+0 -0.012%
|
0.006
|
|
>15.000~18.000
|
+0 -0.014%
|
0.007
|
|
>18.000~21.000
|
+0 -0.016%
|
0.008
|
|
>21.000~24.000
|
+0 -0.018%
|
0.009
|
|
>24.000~30.000
|
+0 -0.020%
|
0.010
|
