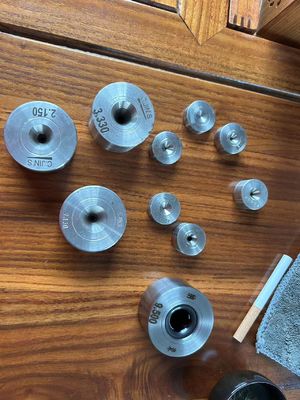

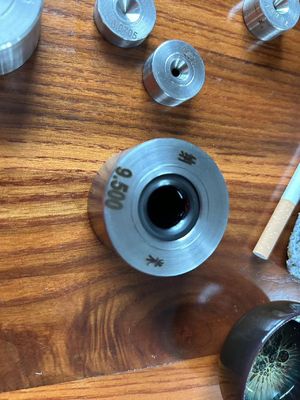

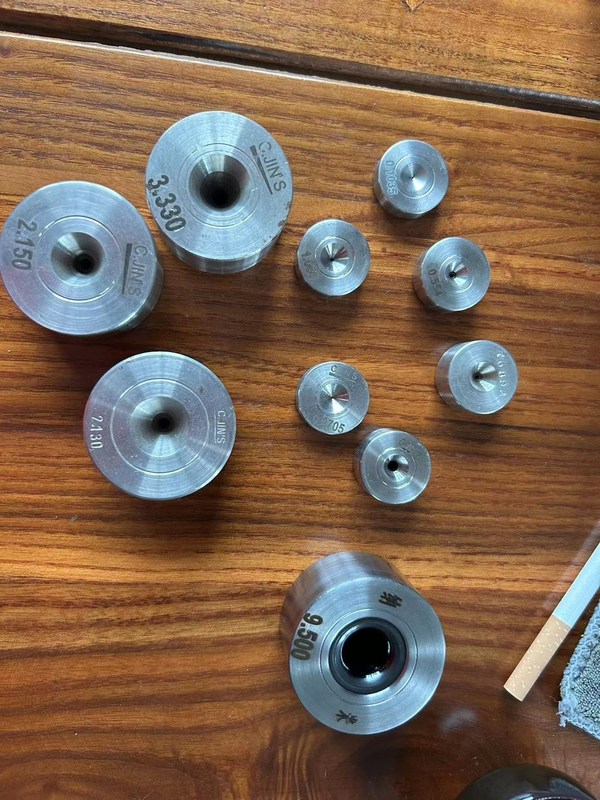

High Speed Copper Wire Drawing Dies / PCD Drawing Dies For Wire Drawing Machine
Product Details:
| Place of Origin: | Dongguan |
| Brand Name: | Hongli |
| Certification: | CE |
| Model Number: | drawing machine |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | 100$-350$ |
| Packaging Details: | wooden packing |
| Delivery Time: | 20-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10,000pcs set per month |
|
Detail Information |
|||
| Features: | High Speed , Energy Saving | Brand: | Hongli |
|---|---|---|---|
| Name: | PCD Drawing Dies | Type: | Polycrystalline Diamond Die |
| Certification: | CE | Material: | Steel |
| High Light: | High Speed Copper Wire Drawing Dies,Hongli Copper Wire Drawing Dies,PCD Drawing Dies |
||
Product Description
High Quality Chinese Brand Wire Drawing Die For Wire Drawing Machine
Polycrystalline diamond dies are available in various grain sizes, both in supported and unsupported configurations. PCD dies provide uniform hardness and extended wear resistance in all directions.
Polycrystalline diamond (PCD) is a kind of artificially sintered diamond,which can be used in all wet drawing and dry drawing processes,polycrystalline diamond high temperature pressing and alloy bond sintering.
There are three types of polycrystalline diamond embryo:non reinforced ring type,reinforced ring type and heat stable setting type.
Polycrystalline diamond wire drawing die is the longest die life of all materials,which can provide the highest production efficiency and reduce downtime.
It is suitable for all applications from large drawing to ultra-fine drawing,with predictable wire surface quality.
| TYPE | DIE SIZE(mm) | TOLERANCE | CASE DIMENSION |
| PCD DIE | D6 | ±0.002 | D30X15 |
| PCD DIE | D24 | ±0.002 | D42X30 |
| PCD DIE | D36 | ±0.002 | D70X35 |
1. Applycation: used in wire drawing machine for drawing wire
2. Material: Steel
3. Coating: CVD nano diamondd coating
4. Precision:
4.1 Die core: Rough drawing (ΦΦ2.2mm-Φ5.5mm): -0.02mm-+0.01mm (the last one is ±0.01mm)
Fine drawing (Φ0.8mm-Φ2.2mm): ±0.01mm
4.2 Die case: -0.05mm
4.3 Roundness error: ≤0.005
4.4 Compression angle: Φ1.2mm or less: 10°±2°
Φ1.2mm-Φ2.0mm: 12°±2°
Φ2.0mm-Φ5.0mm: 14°±2°
