8mm Copper Continuous Casting Machine 2400mm/min For Cable 1.5 2.5
Product Details:
| Place of Origin: | Dongguan,china |
| Brand Name: | Hongli |
| Certification: | CE,ISO |
| Model Number: | HL6000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 150,00$-250,000$ |
| Packaging Details: | wooden packing |
| Delivery Time: | 60-120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 80 set per year |
|
Detail Information |
|||
| Name: | Copper Continuous Casting Machine | Size: | 6000 T |
|---|---|---|---|
| Copper Size: | 8-17mm Square Mm | Production Speed: | 2400mm/min |
| Motor Brand: | Siemens | Inverter Brand: | Yaskawa |
| Main Motor: | 200kw+80kw | Power Consumption: | 315kwh/ton |
| Oven Size: | 300kg | Capacity: | 18 Tons Per Day |
| High Light: | 8mm Copper Continuous Casting Machine,ISO Copper Continuous Casting Machine,Copper Continuous Casting Machine 2400mm/min |
||
Product Description
chinese brand Copper Continuous Casting Machine From Scrap Copper To Produce 8mm Copper For Cable 1.5 2.5
About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, cable tapping machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,
Main brands for our machine
| Copper Scrap Solution Comparison | ||||
| Process | Purity | Scrap Quantity | Product/Purity | Main Equipment |
| CCR | >95.2% | 10KT-50KT/annually | Rod/99.9% | Furnace, Casting/rolling, fume treatment |
| Adding to upcast after refinery | >96% | 1-3KT/annually | Rod/99.9% | Refining furnace, Up casting line |
| Adding to upcast without refinery | >99.5% | 5-20KT/annually | Rod/99.95% | Up casting line |
| Direct Electrolysis | >96% | <2 KT/a nnually | Cathode/99.95% | Electrolysis system, water purification |
| Anode Electrolysis | 90-92% | 5KT-150KT/annually | Cathode/99.97% | Refinery furnace, fume treatment,anode caster, electrolysis system, water purification |

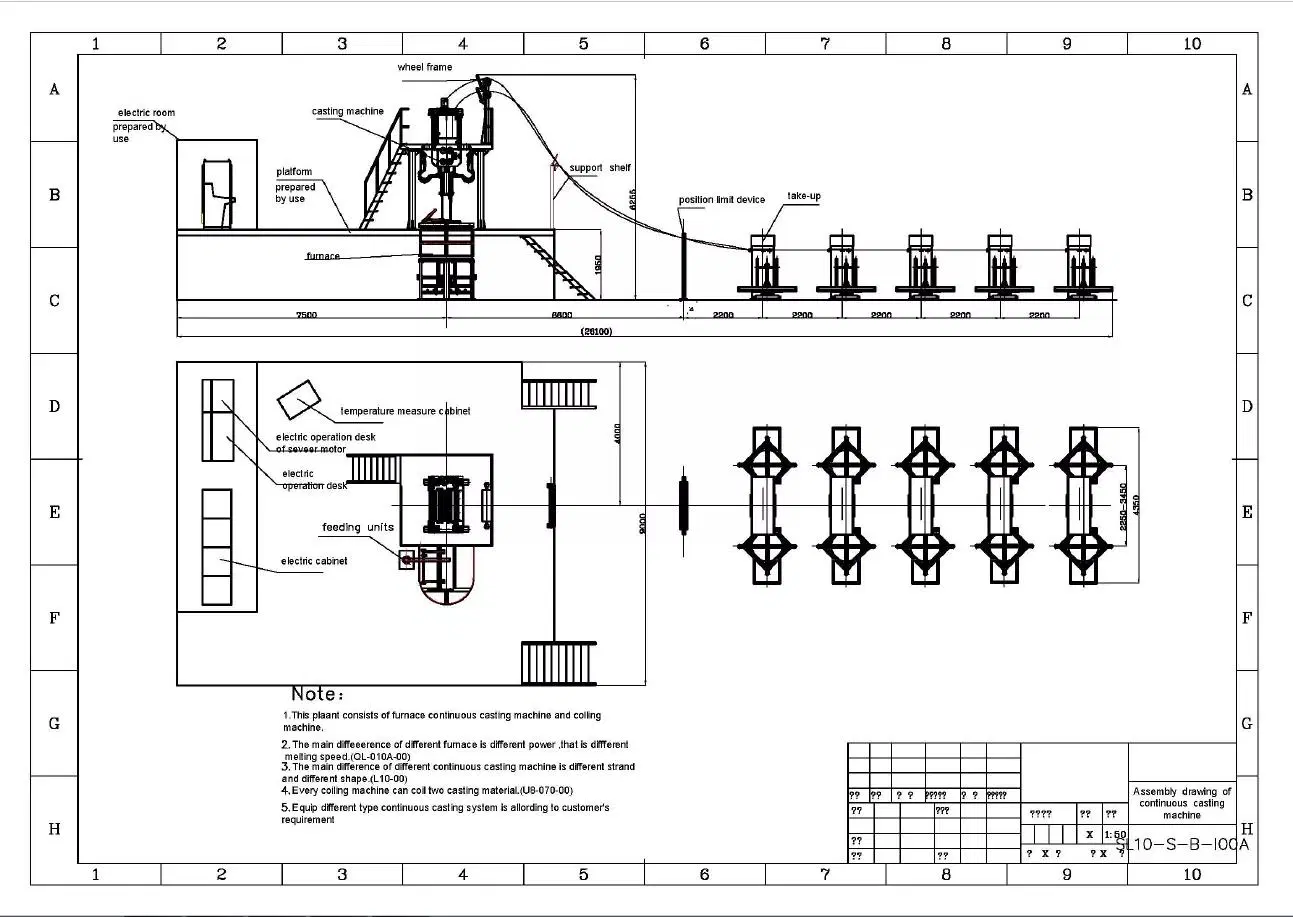

Componets of Up Ward Continuous Casting Machine
1,Induction Furnace System
2,Induction Furnace Control System
3,Casting Mechanism
4,Servo Control System
5,Position Limiter(tensioner)

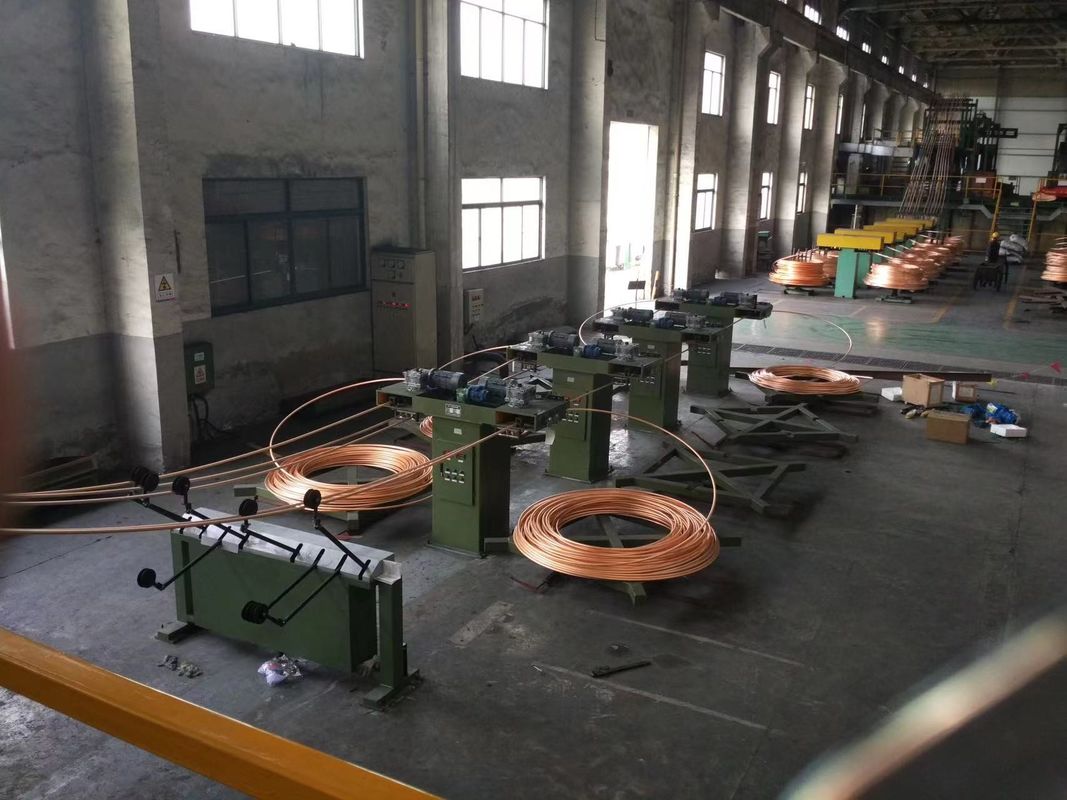

6. Take-up Machine
7,Water Cooling System
8,Temperature Measuring System
9. Material Feeding Unie
| NO | MODEL | CASTING STRANDS | CASTING DIAMETER(mm) | ANNINAL CAPACITY(ton | POWER CONSUMPTION/TON(k Wh/t) |
| 1 | YY06-Q2B-S-B-8/20 | 6 | 8-20 | 3000 | ≤350 |
| 2 | YY10-QL-S-B-8/20 | 10 | 8-20 | 5000 | ≤330 |
| 3 | YY10-QL-S-B-12.5/30 | 10 | 12.5-30 | 6000 | ≤320 |
| 4 | YY14-QG-S-B-12.5/30 | 14 | 12.5-30 | 8000 | ≤320 |
| 5 | YY16-QWB-S-B-12.5/30 | 16 | 12.5-30 | 10000 | ≤300 |
| 6 | YY20-QW2B-S-B-12.5/30 | 20 | 12.5-30 | 12000 | ≤300 |
