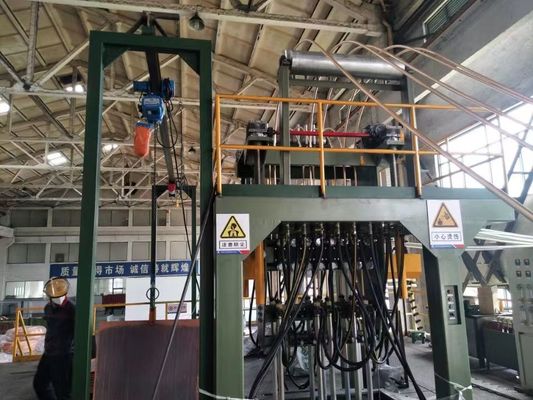

8-20mm High Output Copper Upcast Machine 6000T Continous Casting Machine
Product Details:
| Place of Origin: | Dongguan,china |
| Brand Name: | Hongli |
| Certification: | CE,ISO |
| Model Number: | HL6000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 150,00$-250,000$ |
| Packaging Details: | wooden packing |
| Delivery Time: | 60-120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 80 set per year |
|
Detail Information |
|||
| Size: | 6000 T | Copper Size: | 8-17mm Square Mm |
|---|---|---|---|
| Production Speed: | 2400mm/min | Motor Brand: | Siemens |
| Inverter Brand: | Yaskawa | Main Motor: | 200kw+80kw |
| Power Consumption: | 315kwh/ton | Oven Size: | 300kg |
| Capacity: | 18 Tons Per Day | Name: | Copper Upcast Machine |
| High Light: | 20mm Copper Upcast Machine,High Output Copper Upcast Machine,6000T Continous Casting Machine |
||
Product Description
8-20mm High Output 6000t Upcasting Machine for Oxygen-Free Copper Wire from scrap copper
About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, cable tapping machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,
Main brands for our machine
| Copper Scrap Solution Comparison | ||||
| Process | Purity | Scrap Quantity | Product/Purity | Main Equipment |
| CCR | >95.2% | 10KT-50KT/annually | Rod/99.9% | Furnace, Casting/rolling, fume treatment |
| Adding to upcast after refinery | >96% | 1-3KT/annually | Rod/99.9% | Refining furnace, Up casting line |
| Adding to upcast without refinery | >99.5% | 5-20KT/annually | Rod/99.95% | Up casting line |
| Direct Electrolysis | >96% | <2 KT/a nnually | Cathode/99.95% | Electrolysis system, water purification |
| Anode Electrolysis | 90-92% | 5KT-150KT/annually | Cathode/99.97% | Refinery furnace, fume treatment,anode caster, electrolysis system, water purification |
Componets of Up Ward Continuous Casting Machine

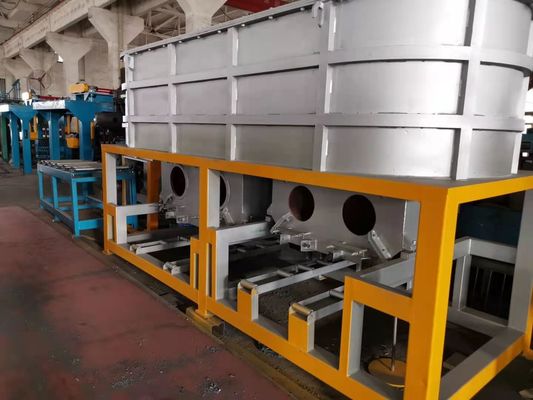

1,Induction Furnace System
2,Induction Furnace Control System

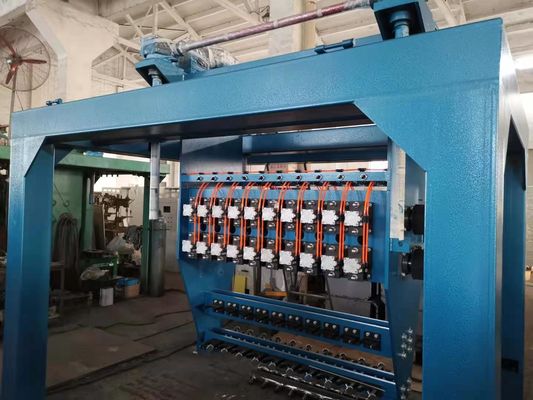

3,Casting Mechanism
4,Servo Control System
5,Position Limiter(tensioner)

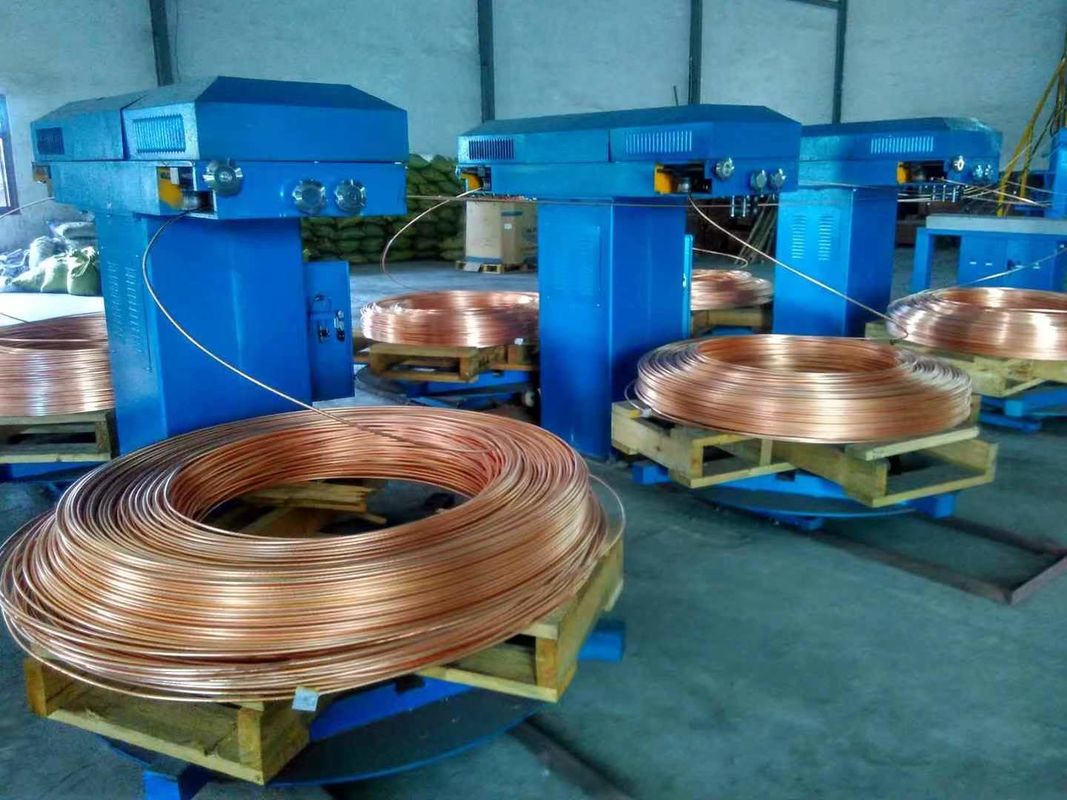

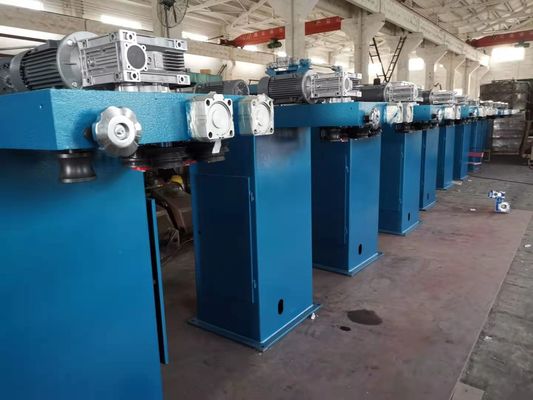

6. Take-up Machine
7,Water Cooling System
8,Temperature Measuring System
9. Material Feeding Unie
| NO | MODEL | CASTING STRANDS | CASTING DIAMETER(mm) | ANNINAL CAPACITY(ton | POWER CONSUMPTION/TON(k Wh/t) |
| 1 | YY06-Q2B-S-B-8/20 | 6 | 8-20 | 3000 | ≤350 |
| 2 | YY10-QL-S-B-8/20 | 10 | 8-20 | 5000 | ≤330 |
| 3 | YY10-QL-S-B-12.5/30 | 10 | 12.5-30 | 6000 | ≤320 |
| 4 | YY14-QG-S-B-12.5/30 | 14 | 12.5-30 | 8000 | ≤320 |
| 5 | YY16-QWB-S-B-12.5/30 | 16 | 12.5-30 | 10000 | ≤300 |
| 6 | YY20-QW2B-S-B-12.5/30 | 20 | 12.5-30 | 12000 | ≤300 |
