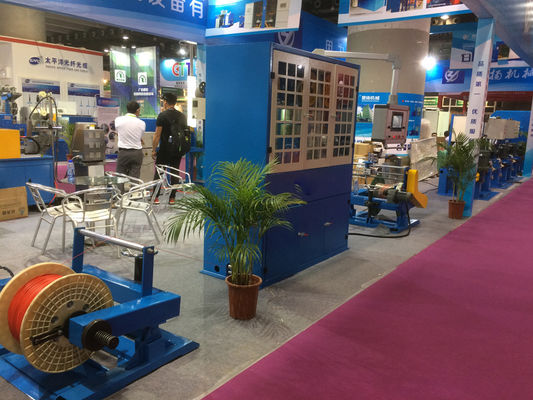

Servo Motor Tension Control 630 Tapping Wire Wrapping Machine For Shield Cable Wire

630 double layers tapping machine

Used:The applicable PVC / PE core wire or strand Wraps with

Adapt diameter:φ1mm～φ5mm

The speed of main axis:2000Rpm

The speed of wrap: 5～50m/min

The pitch of wrap: 10～40mm or adjustable according to your requirement

The direction of wrap: From S to Z and it can change according to your need.

Single-action and linkage:Every head package tray can be used alone or linkage and adjust the pitch

Driving power: wrap, 2 sets 1HP motor. Main machine: 1 set 2HP motor.

winding displacement: φ20 The cable rod winding displacement

Take up bobbin size: OD φ400～φ630

Wrap:adapt material: 1) mica tape,tissue paper,Mylar,aluminum foil and so on.

2) Diameter:φ250mm, Width:5～20mm, Inner hole φ5

Pay off:the φ800 single head Japanese line planes, mechanical brake band tension

Take up:φ800 single head magnetic tension closing line machine

NACHI bearings used in Japan , a few meters table TOYO, Taiwan Shihlin , contactor ,

switch button Taiwan days in relay Omron of Japan and its main electrical components imported from Taiwan , Japan
