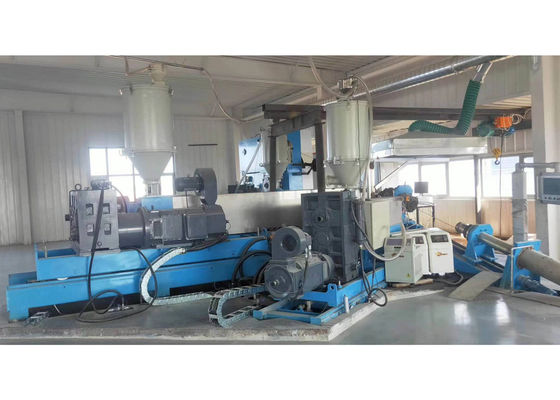

XLPE 35-132 Kv CCV Line Power Cable Extruder Extrusion Producion Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Motor: | Siemens | Pls: | Siemens |
|---|---|---|---|
| Inverter: | Yaskawa | Cable Size: | 50-1600 Square Mm |
| Voltage: | 35-66-110-132kv | Material: | XLPE |
| Extruder: | 80+175+100 | Capacity: | 960kva |
| Pay Off: | 2000-3150mm | Take Up: | 2000-4200mm |
| High Light: | Power Cable CCV Line,Cable Extruder CCV Line,XLPE Extrusion CCV Line |
||
Main features of machine
1. Voltage level XLPE 35-66-110-132KV
2. Conductor size :
(1) Copper: 50-1600 square mm
(2) Aluminum: 70-1600 square mm
3. Cable weight : 25kg/meter(max)
4. Cable diameter: 100mm (max)
5. thickness of each layers
(1) 80 extruder inside layer: 0.5-3.0mm
(2) 175 extruder insulation layer: 10.5-20mm
(3) 100 extruder outside layer: 0.5-3.0mm
6. Cross-linked closed length: 126 meters
(1) Heating section: 42 meters, 6m*7
(2) Pre-cooling section: 12 meters, 6m*2
(3) Water cooling section: 72 meters, 6m*12
7. Main building platform area (length * width): ≥24m×18 m
8. Host floor height: ≥21m
9. length of factory: ≥135m
10. Nitrogen : Pressure 2.0~2.5 MPa Purity 99.5%
Consumption : 0.4~1.8 m3 /h Nitrogen storage tank capacity 5 m3
11. Cooling water : pressure 0.2~2 MPa Circulation consumption 12.5m3 /h
12. Compressed air: pressure 0.6~0.8 MPa standard consumption 0.8 m3 /h
13. Installed capacity: 960 kVA
14. Two power supply lines: (3×240 mm2, 3×240 mm2)
| Voltage class | XLPE 6-33 KV | 35-132kv |
| Conductor cross section |
Cu: 35-630 mm2 Al: 50-800 mm2 |
Cu: 50-1600 mm2, Al: 70-1600 mm2,
|
| Max. Weight of cable | 10 Kg/m | 25 Kg/m |
| Outer diameter of cable | ≤Φ75 mm | ≤Φ90 mm |
| Wall thickness |
Φ65 extruder 0.5-2.0 mm for inner layer Φ150 extruder 2.5-10.5 mm for insulation layer Φ90 extruder 0.5-2.0 mm for outer layer |
Φ80 extruder 0.5-3.0 mm for inner layer Φ175 extruder 10.5-20 mm for insulation layer Φ100 extruder 0.5-3.0 mm for outer layer |
| Length of vulcanizing tube | ≥102 m | ≥114m |
| Heating section length | 42 m, 6 m×6 sections | 42 m, 6 m×6 sections |
| Pre-cooling section length | 12 m, 6 m×2 sections | 12 m, 6 m×2 sections |
| Water cooling length | 54 m, 6 m×9sections | 66 m, 6 m×11sections |
| Needed area of main platform (L×W) |
≥24 m×18 m for one line ≥30*24m for two lines |
≥24 m×18 m for one line ≥30*24m for two lines |
| Height of 3-platform | ≥10 m | ≥16.5m |
| Needed length of workshop (premises) | ≥135 m | ≥148m |
|
Nitrogen gas
|
Pressure: 2.0-2.5 Mpa Purity: 99.5% Consumption :0.4-1.8 m3/h Volume of N2 tank: 5 m3 |
Pressure: 2.0-2.5 Mpa Purity: 99.5% Consumption: 4-8 m3/h Volume of N2 tank: 8 m3 |
|
Cooling water
|
Pressure :0. 2-2 MPa Consumption: 12.5 m3/h |
Pressure :0.4-0.6 MPa Consumption:15 m3/h |
|
Compressed air
|
Pressure: 0.6-0.8MPa Consumption: 0.8 m3/h
|
Pressure: 0.6-0.8MPa Consumption: 0.8 m3/h
|
|
Installed capacity
|
750kVA (Power voltage: 380V, 50HZ, | 900kVA (Power voltage: 380V, 50HZ |
| Two power incoming lines | 3*185mm2, 3*240mm2 | 3*240mm2, 3*240mm2 |
