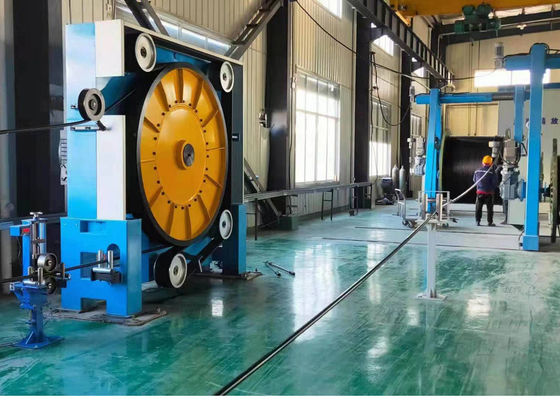

XLPE 132kv CCV Line For Power Cable Extruder Production Line

1. Voltage level XLPE 35-66-110-132KV

2. Conductor size :

(1) Copper: 50-1600 square mm

(2) Aluminum: 70-1600 square mm

3. Cable weight : 25kg/meter(max)

4. Cable diameter: 100mm (max)

5. thickness of each layers

(1) 80 extruder inside layer: 0.5-3.0mm

(2) 175 extruder insulation layer: 10.5-20mm

(3) 100 extruder outside layer: 0.5-3.0mm

6. Cross-linked closed length: 126 meters

(1) Heating section: 42 meters, 6m*7

(2) Pre-cooling section: 12 meters, 6m*2

(3) Water cooling section: 72 meters, 6m*12

7. Main building platform area (length * width): ≥24m×18 m

8. Host floor height: ≥21m

9. length of factory: ≥135m

10. Nitrogen :　 Pressure 2.0~2.5              MPa Purity 99.5%

　 Consumption : 0.4~1.8 m3 /h                Nitrogen storage tank capacity 5 m3

11. Cooling water :　 pressure 0.2~2 MPa           Circulation consumption 12.5m3 /h

12. Compressed air: pressure 0.6~0.8 MPa           standard consumption 0.8 m3 /h

13. Installed capacity:　960 kVA

14. Two power supply lines: (3×240 mm2, 3×240 mm2)
