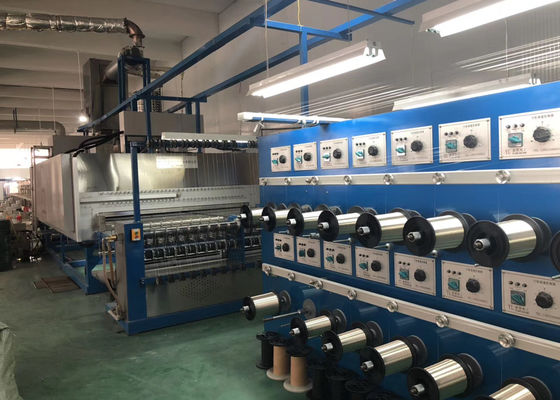

1mm to 3mm Vertical Copper Wire Enamelling Machine

1mm to 3mm Vertical Copper Wire Enamelling Machine
1mm to 3mm Vertical Copper Wire Enamelling Machine 1mm to 3mm Vertical Copper Wire Enamelling Machine 1mm to 3mm Vertical Copper Wire Enamelling Machine 1mm to 3mm Vertical Copper Wire Enamelling Machine 1mm to 3mm Vertical Copper Wire Enamelling Machine

Large Image :  1mm to 3mm Vertical Copper Wire Enamelling Machine Get Best Price

Product Details:
Place of Origin: dongguan,china
Brand Name: yuyang
Certification: CE, CCC, CE, ISO
Model Number: yy-e28
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 150000$-200000$
Packaging Details: 2 pcs 40 feet container
Delivery Time: 90-150 days after advance payment
Payment Terms: T/T
Supply Ability: 20 set per year
Contact Now
Detailed Product Description
Copper Size: 1mm To 3mm Motor: Siemens
Inverter: Yaskawa Model: Vertical
Power: 220kw Power Cost: 1250kwh Per Tons
High Light:

3mm Copper Wire Enamelling Machine

,

1mm Copper Wire Enamelling Machine

,

Vertical enameling machine

1mm to 3mm Vertical Copper Wire Enamelling Machine



Technical requirement:

Power supply:380V X 50Hz X 3phase

Wire size:Φ1.00 mm –Φ3.00mm；

Production lines:28lines

Coating passes:7

Coating method:felt (if dies the cost will charge by extra)

Wire pitch:12.5 mm

Max. speed:40m/min DV=30

Take up bobbin:PT25-PT60

Payoff bobbin:Φ500

Payoff method:spindle type damping rolling payoff method

power capacity:220 KW

Power cost: common use below 1000 KWH per day,per ton power cost is below 250KWH.
