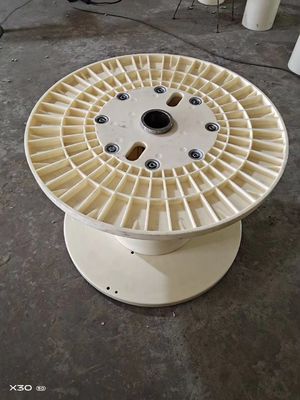

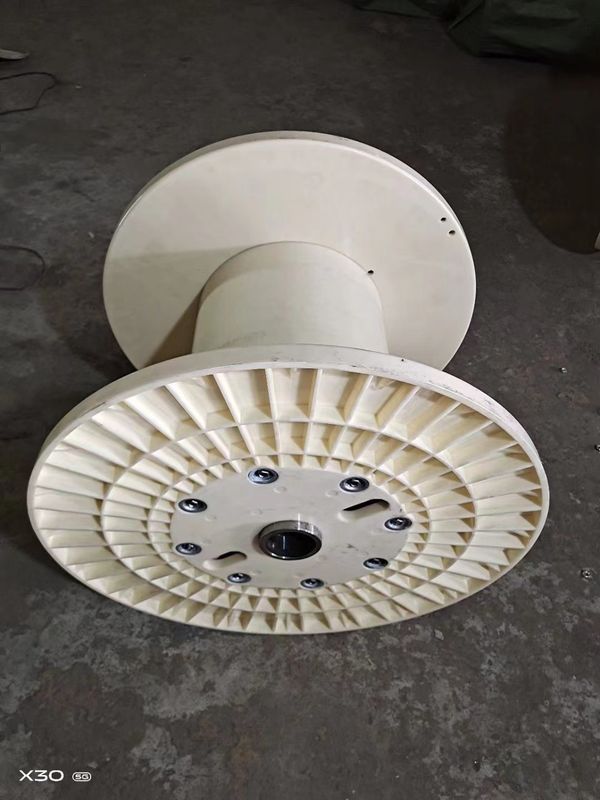

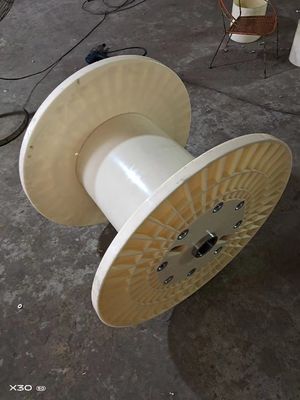

500mm ABS Plastic Bobbin For Wire High Speed Bunching Machine
Product Details:
| Place of Origin: | Dongguan,china |
| Brand Name: | Hongli |
| Certification: | CE,ISO |
| Model Number: | YY-630 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 set |
|---|---|
| Price: | 35$-50$ |
| Packaging Details: | wooden packing |
| Delivery Time: | 10-30 days |
| Payment Terms: | T/T, L, L/C |
| Supply Ability: | 5000 set per month |
|
Detail Information |
|||
| Name: | ABS Plastic Bobbin For Wire | Material: | STEEL Iron |
|---|---|---|---|
| Bobbin Size: | 500mm | Thickness: | 500 Punching Steel Bobbin |
| Weight: | 30kg | ||
| High Light: | 500mm Plastic Bobbin For Wire,ABS Plastic Bobbin For Wire |
||
Product Description
Chinese Hot Sell ABS PN500mm Plastic Bobbin For High Speed Bunching Machine Copper Wire 1.5,2.5
About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, bobbin, laser cutting machine, pipe production line,cable tapping machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,
Main brands for our machine
- Motor: SIEMENS, DONGGUAN MOTOR,
- Inverter: YASKAWA, INOVANCE, SIEMENS,
- PLC: Siemens
- Touch Screen: Siemens
- Low-voltage electrical components: Schneider
- Bearings: NSK or SKF
Product Description
Steel cord and Tire cord applications require a specialized type of spool which is manufactured to industry standards. The B-Type spools are available in various assemblies and additional strength constructions as required by the application.
Features:
1. Pressed steel dual component flange
2. Curly flange edge for strength & hock-resistance
3. High penetration spot welds flange to drum
4. Wire locking flange clips, tags or holes
Surface Treatment:
Powder-coated (1 or 2 colors)
Galvanized
Directional arrows on flanges
Embossed logos
Customer specific drive holes
Product Parameter
Features:
1. Pressed steel dual component flange
2. Curly flange edge for strength & hock-resistance
3. High penetration spot welds flange to drum
4. Wire locking flange clips, tags or holes
Surface Treatment:
Powder-coated (1 or 2 colors)
Galvanized
Directional arrows on flanges
Embossed logos
Customer specific drive holes
Product Parameter
| BS-40 | BS-60 | BS-80/17 | BS-80/33 | |
| Flange Ø | 255 mm (10") | 255 mm (10") | 255 mm (10") | 255 mm (10") |
| Traverse | 153 mm (6") | 153 mm (6") | 315 mm (12.4") | 315 mm (12.4") |
| Drum Ø | 117 mm (4.6") | 117 mm (4.6") | 117 mm (4.6") | 117 mm (4.6") |
| Outside Width | 167 mm (6.57") | 167 mm (6.57") | 345 mm (13.5") | 345 mm (13.5") |
| Bore Ø | 17 mm (0.67") | 33 mm (1.3") | 17 mm (0.67") | 33 mm (1.3") |
| Weight of Spool | 1.85 Kg (4.07 lb) | 1.90 Kg (4.18 lb) | 2.40 Kg (5.30 lb) | 2.50 Kg (5.51 lb) |
| Volume Capacity | 18 Kg (39.70 lb) | 18 Kg (39.70 lb) | 36 Kg (79.40 lb) | 36 Kg (79.40 lb) |
Want to Know more details about this product
