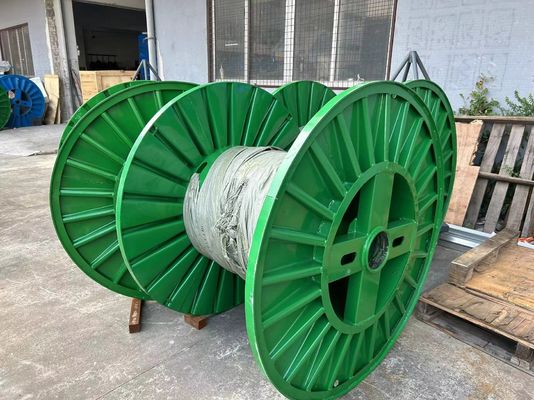

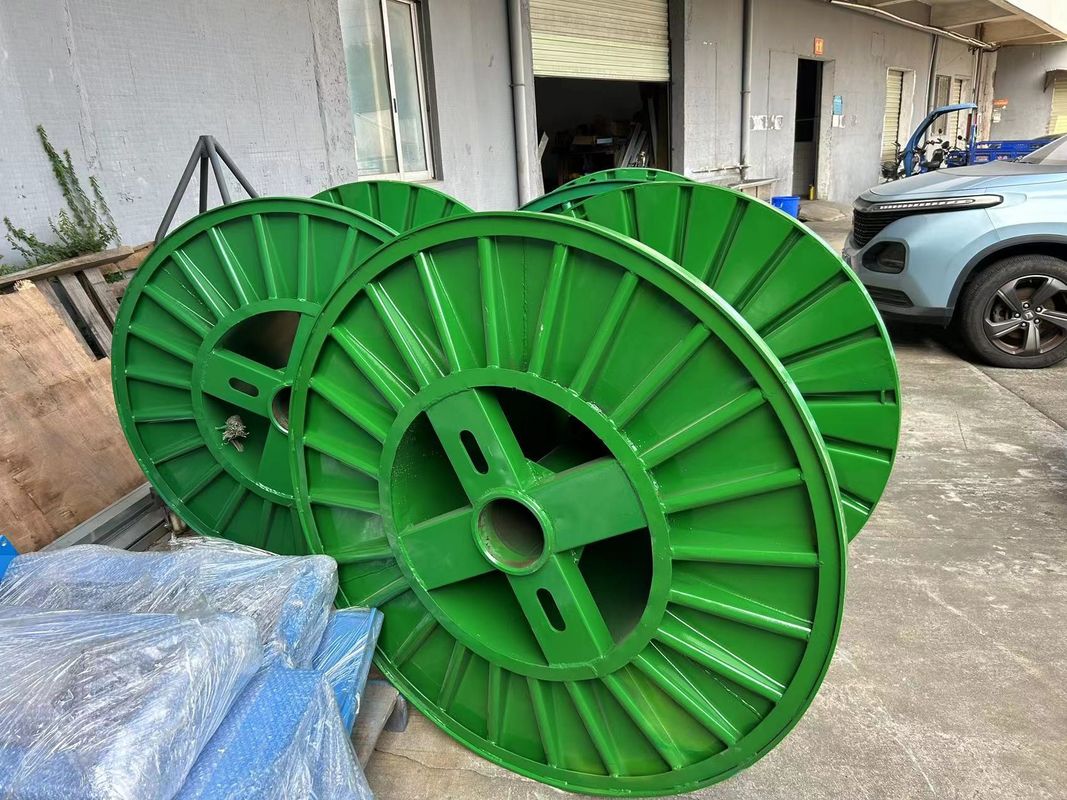

1000mm 1250mm Corrugated Steel Drum For Wire / Cable Metal Reel Steel Drum

Product Description

Chinese Brand 1000mm 1250mm Corrugated Bobbin For Wire&Cable Metal Reel Steel Drum

About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, bobbin, laser cutting machine, pipe production line,cable tapping machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,

Main brands for our machine



Technical Parameter

Serial Number	Specification Model	Lateral Plate Diameter D1	Major Diameter D2	Axle Hole Diameter D4	Carrying Hole Diameter D5	Center Distance E of Axle Hole and Carrying Hole	External Width L1	Internal Width L2
1	800	800	400	80	40	160	600	500
2	1000	1000	500	80	40	160	750	630
3	1120	1120	560	80	40	160	850	710
4	1250	1250	630	80	40	160	950	800
5	1400	1400	710	80	65	300	1060	900
6	1600	1600	800	80	65	300	1180	1000
7	1800	1800	1000	100	65	300	1320	1120
8	2000	2000	1120	1235	65	300	1500	1250
9	2240	2240	1250	125	65	300	1700	1400
10	2500	2500	1500	125	65	300	1900	1600
11	2800	2800	1800	140	65	300	2120	1800
12	3150	3150	2000	160	65	500	2300	2000
13	4000	4000	2800	200	80	500	2300	2000
