630 Double Head Wire Bobbin Winding Machine , 200m/min Automatic Wire Wrap Machine
Product Details:
| Place of Origin: | ISO9001:2008 |
| Brand Name: | Hongli |
| Certification: | CE ,ISO9001 |
| Model Number: | 630 double head |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 6,000-12,000$ |
| Packaging Details: | wooden pacakge |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20 set /month |
|
Detail Information |
|||
| Name: | Wire Bobbin Winding Machine | Main Motor: | 3HP |
|---|---|---|---|
| Cable Size: | 1.5,2.5,4,6 | Pitch Control: | PLC Touch Screen |
| Motor Brand: | Siemens | Speed: | 200 Meter/min |
| Inverter Brand: | Yaskawa | ||
| High Light: | 630 Wire Bobbin Winding Machine,Double Head Wire Bobbin Winding Machine,200m/Min Automatic Wire Wrap Machine |
||
Product Description
630 Bobbin Reel Wire Cable Coiling Winding Wrapping Machine For 1.5,2.5,4,6,2*1.5,2*2.5
About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,
Main brands for our machine
technical Parameters
| Model | Height (mm) |
Outside Diameter O.D (mm) |
Inside Diameter I.D (mm) |
Cable Diameter (mm) |
Wrapping Material | Speed (100M/Coil) |
| YY630 | 30-150 | 320 | 120 | 1.5,2.5,4,6 | PVC/PE | 200 m/min |
| YY1250 | 180 | 280-600 | 180-250 | 10,16,25,35, | PVC/PE | 200 m/min |

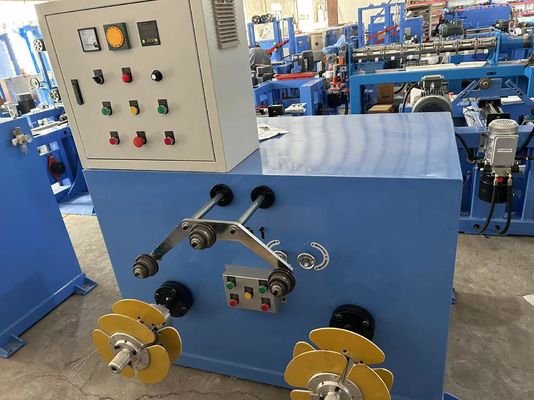

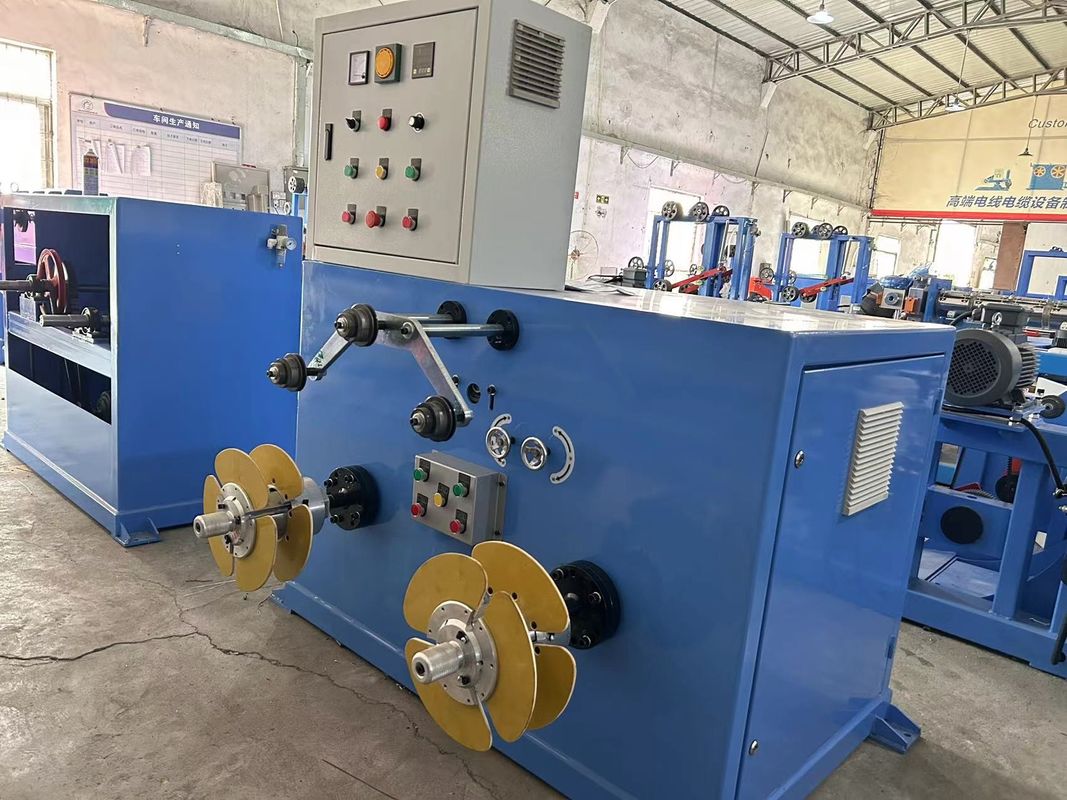

Coiling machine
1, double –axlel type take-up, wire coil inner diameter is 120mm, the outer diameter is Φ320 mm, height 30-105mm can be adjustable (according to customer's requirement)
2, automatic meter counting , reaching the setting number of meters ,automatic alarm and shutdown, automatic brake..
3, coiling motor 750W servo motor, with Speed reducer,
4, the unique passive automatic wire-arranging, servo motor 400w,
5.speed:150 meter per min.
6, color: blue.
tension frame
Aluminum wheel: alloy wheel of 250 material:
3+4 pcs wheel, long wear resistance
Of the 30 bearing steel strip tension spring lifting
Meter device
electronic meter device can ensure the accuracy of the length of the bundling machine, realizes the automatic control.
