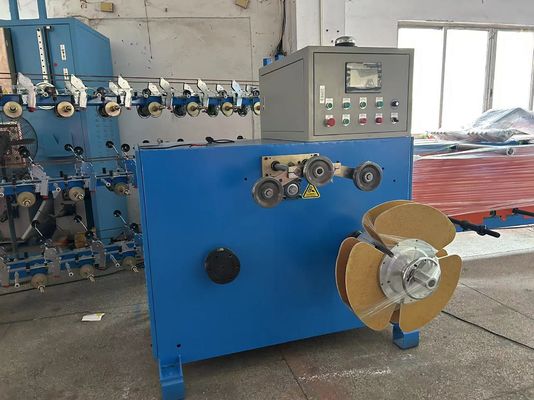

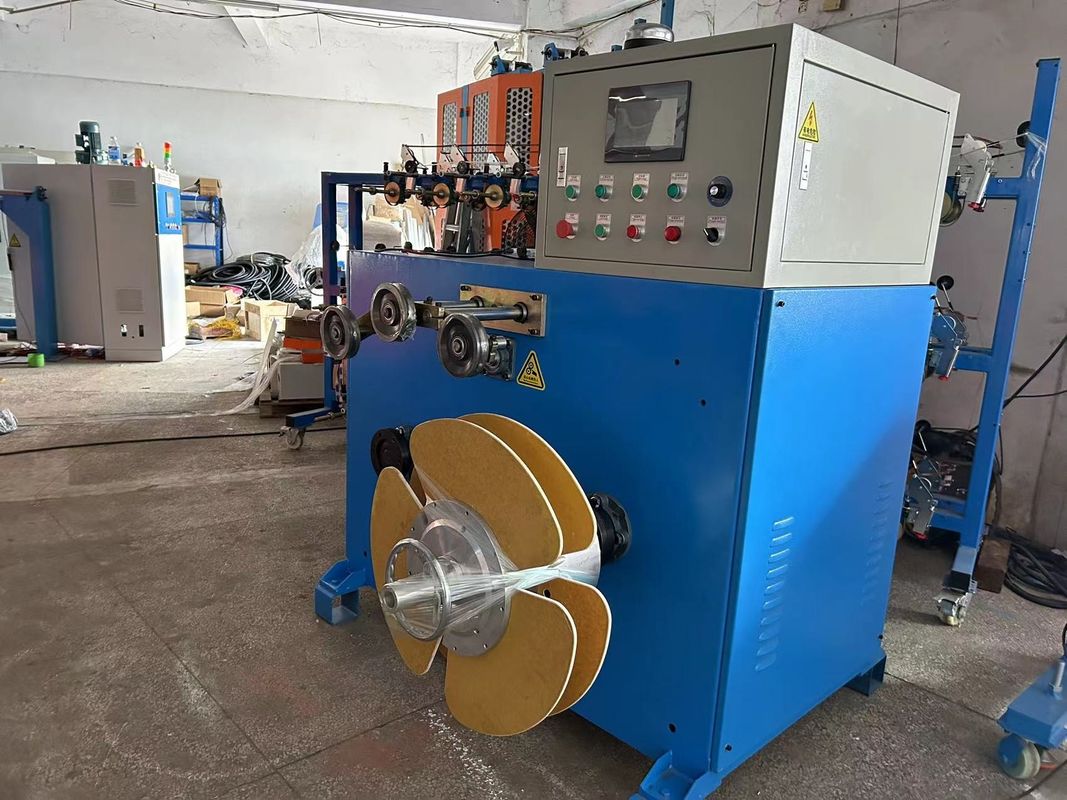

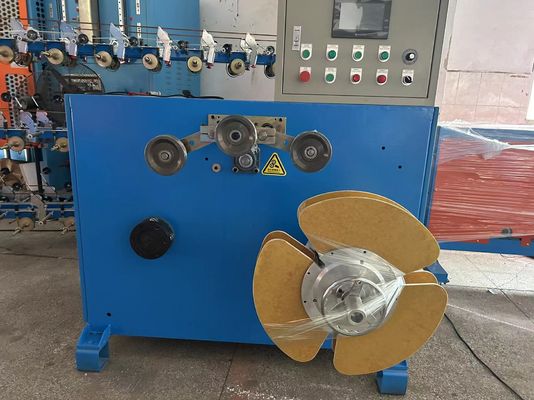

1250 Bobbin Reel Pay Off Cable Coiling Machine For 25 35 Cable
Product Details:
Place of Origin: | ISO9001:2008 |
Brand Name: | Hongli |
Certification: | CE ,ISO9001 |
Model Number: | 1250 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | 5,000-9,000$ |
Packaging Details: | wooden pacakge |
Delivery Time: | 15-20 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 20 set /month |
Detail Information |
|||
Name: | Cable Coiling Machine | Main Motor: | 3HP |
---|---|---|---|
Cable Size: | 10,16,25,35,4*1.5, 4*2.5, 4*4, 4*6 | Pitch Control: | PLC Touch Screen |
Motor Brand: | Siemens | Speed: | 200 Meter/min |
Inverter Brand: | Yaskawa | ||
High Light: | 25 Cable Coiling Machine,35 Cable Coiling Machine,Pay Off Wire Coiling Machine |
Product Description
1250 Bobbin Reel Pay Off Wire Cable Coiling Machine For 25 35
About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,
Main brands for our machine
technical Parameters
Model | Height (mm) |
Outside Diameter O.D (mm) |
Inside Diameter I.D (mm) |
Cable Diameter (mm) |
Wrapping Material | Speed (100M/Coil) |
YY630 | 30-150 | 320 | 120 | 1.5,2.5,4,6 | PVC/PE | 200 m/min |
YY1250 | 180 | 280-600 | 180-250 | 10,16,25,35, | PVC/PE | 200 m/min |
Single head roller host
1, single –axlel type take-up, wire coil inner diameter is 120mm, the outer diameter is , height 30-105mm can be adjustable (according to customer's requirement)
2, automatic meter counting , reaching the setting number of meters ,automatic alarm and shutdown, automatic brake..
3, by using the dynamic 3HP Siemens motor and 3HP Shenzhen sine inverter, the realization of frequency conversion stepless speed regulation.
4, the unique passive automatic wire-arrangeing, which can ensure the wire pitch is not affected by the line size, realization of neat and compact when wire-roling
5.Host: maximum speed 500 rpm, speed adjustable. 6, applicable range of wire sizes: 6--50mm2 .
7, color: blue.
