4*1.5 4*2.5 Cable Cross Head Double Layers STEEL Iron Material
Product Details:
| Place of Origin: | Dongguan,china |
| Brand Name: | Hongli |
| Certification: | CE,ISO |
| Model Number: | YY-90mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 800$-1200$ |
| Packaging Details: | wooden packing |
| Delivery Time: | 15-30 days |
| Payment Terms: | T/T, L, L/C |
| Supply Ability: | 300 set per month |
|
Detail Information |
|||
| Name: | Cable Cross Head | Material: | STEEL Iron |
|---|---|---|---|
| Extruder Size: | 90mm | Pvc Layer: | One Layers / One Layers+skin |
| Weight: | 35kg | Cable Size: | 4*1.5,4*2.5,4*4,4*6,4*10,4*16,10,16,25,35,50 |
| High Light: | 4*2.5 Cable Cross Head,Cable Cross Head Double Layers |
||
Product Description

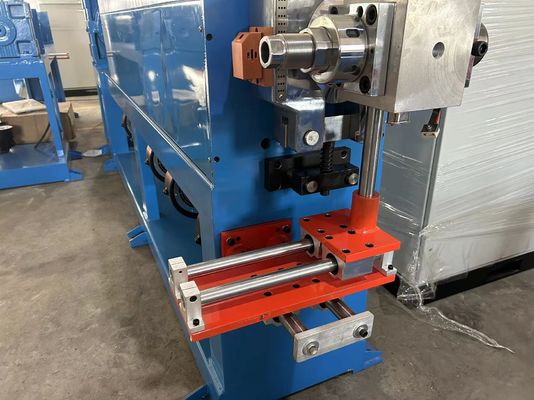

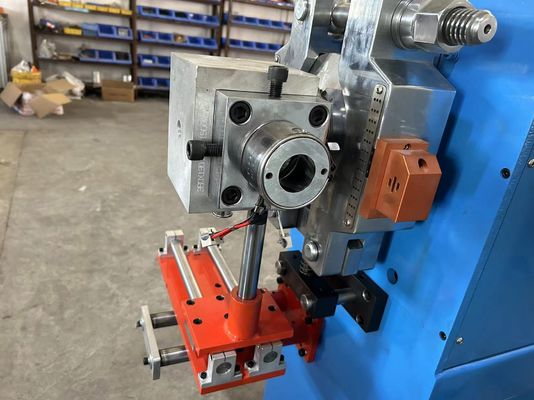

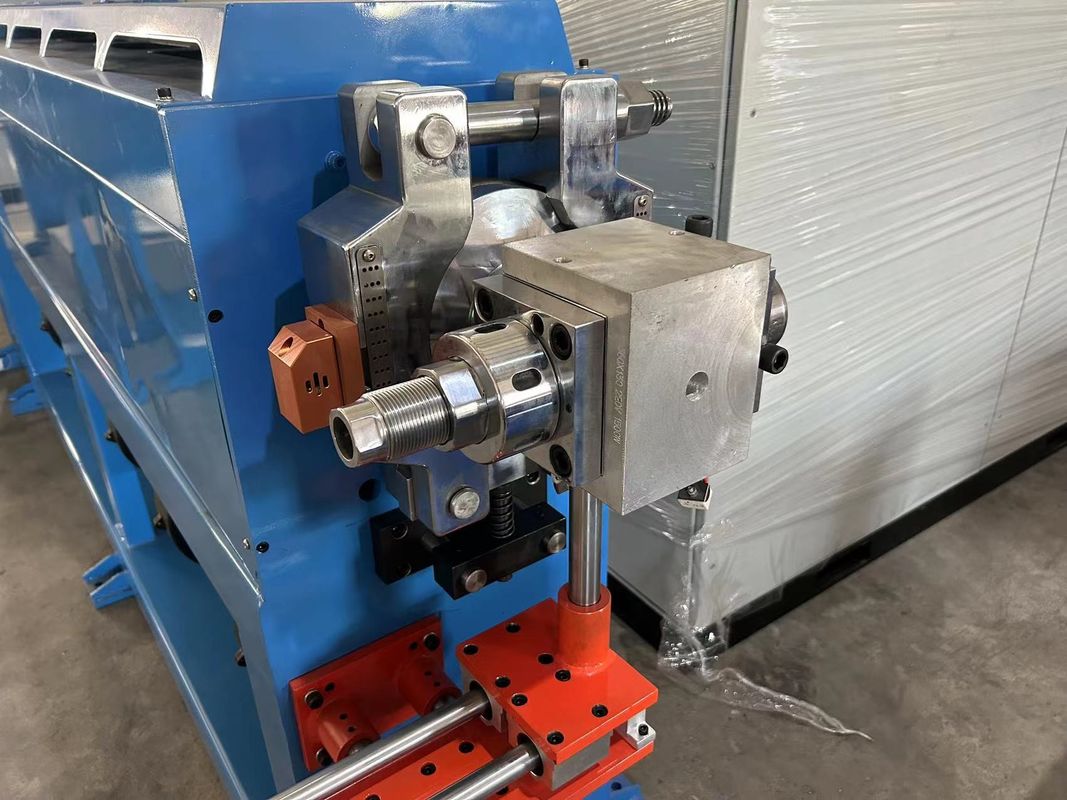

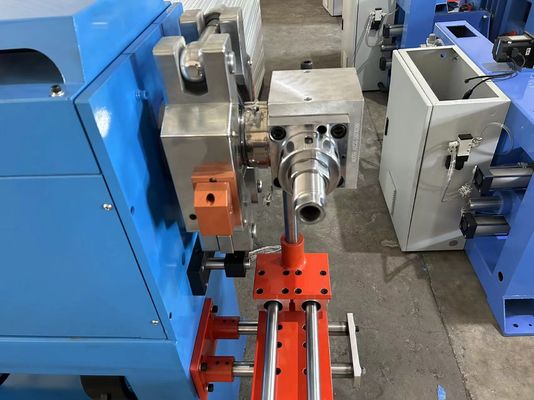

High Quality Chinese Brand 90mm Cross Head For Cable 4*1.5 4*2.5 Double Layers PVC Insulation
About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, bobbin, laser cutting machine, pipe production line,cable tapping machine, copper drawing machine, cable cross head, Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,
Product Description
1.Extrusion mould/die includes two parts:Ram head and stock mold
2.The role of ram head
The ram head is a major part of the extrusion plastic molding machine, it makes the molten plastic from extruder by spiral movement into a straight line movement.
And further, to produce the necessary forming pressure, ensure parts is close-grained, to gain the continuous profiles to cross section shape is consistent.
3.The role of stock mold
Usually adopts the method of cooling , pressure or vacuum,make the given shape from the mouth mould of plastic extruder stabilized.Then finishing the given shape,so obtain section size more accurate and surface more bright plastic product.
4.Our produdct the electric/wire extrusion mould is one kind of extrusion mould.
When the metal conductor is monofilament or multi-strand wire, extrusion products is electric/wire.
When the metal conductor is a bundle of mutual insulation wire or irregular conductor, extrusion products for the cable
The technology equipment used for electric/wire coating is called for extrusion type covered mould.
Product description:
Model:90
Product Usage:network cable, automobile cable,ultra-fine canble
Numble of spiral: single spiral
Diamater of spiral:90mm
Max extrusion diameter:20 mm
Capacity:60kg/h
PositionaI accuracy:0.001mm
Features:this mould adopts tungsten steel,the angle is consistent.
2.The role of ram head
The ram head is a major part of the extrusion plastic molding machine, it makes the molten plastic from extruder by spiral movement into a straight line movement.
And further, to produce the necessary forming pressure, ensure parts is close-grained, to gain the continuous profiles to cross section shape is consistent.
3.The role of stock mold
Usually adopts the method of cooling , pressure or vacuum,make the given shape from the mouth mould of plastic extruder stabilized.Then finishing the given shape,so obtain section size more accurate and surface more bright plastic product.
4.Our produdct the electric/wire extrusion mould is one kind of extrusion mould.
When the metal conductor is monofilament or multi-strand wire, extrusion products is electric/wire.
When the metal conductor is a bundle of mutual insulation wire or irregular conductor, extrusion products for the cable
The technology equipment used for electric/wire coating is called for extrusion type covered mould.
Product description:
Model:90
Product Usage:network cable, automobile cable,ultra-fine canble
Numble of spiral: single spiral
Diamater of spiral:90mm
Max extrusion diameter:20 mm
Capacity:60kg/h
PositionaI accuracy:0.001mm
Features:this mould adopts tungsten steel,the angle is consistent.
