High Speed Cable Tapping Machine 1mm - 10mm Wire Wrapping Machine
Product Details:
| Place of Origin: | Dongguan |
| Brand Name: | Hongli |
| Certification: | CE,ISO |
| Model Number: | 630mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 25,00$-35,000$ |
| Packaging Details: | wooden packing |
| Delivery Time: | 20-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 set per month |
|
Detail Information |
|||
| Name: | Wire Wrapping Machine | Size: | 630 |
|---|---|---|---|
| Cable Size: | 1-6mm | Rotation Speed: | 2500RPM-3000RPM |
| Tapping Spitch: | 5～20mm | Motor Brand: | Siemens |
| Inverter Brand: | Yaskawa | Production Speed: | 5-30m/min |
| Motor: | 1HP | ||
| High Light: | High Speed Cable Tapping Machine,Cable Tapping Machine 1mm,10mm Wire Wrapping Machine |
||
Product Description

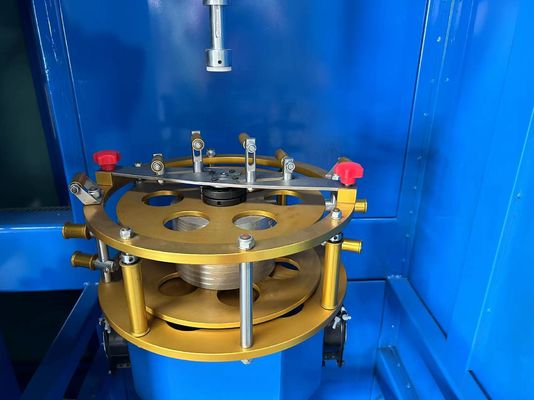

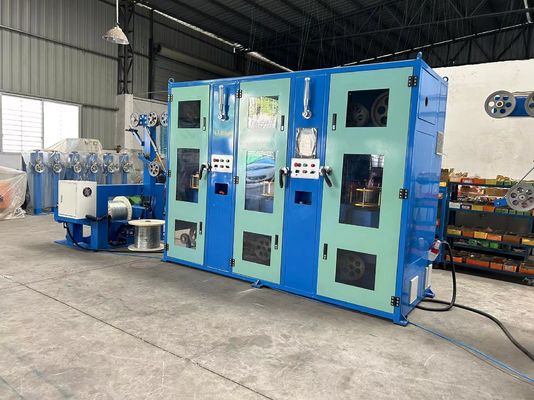

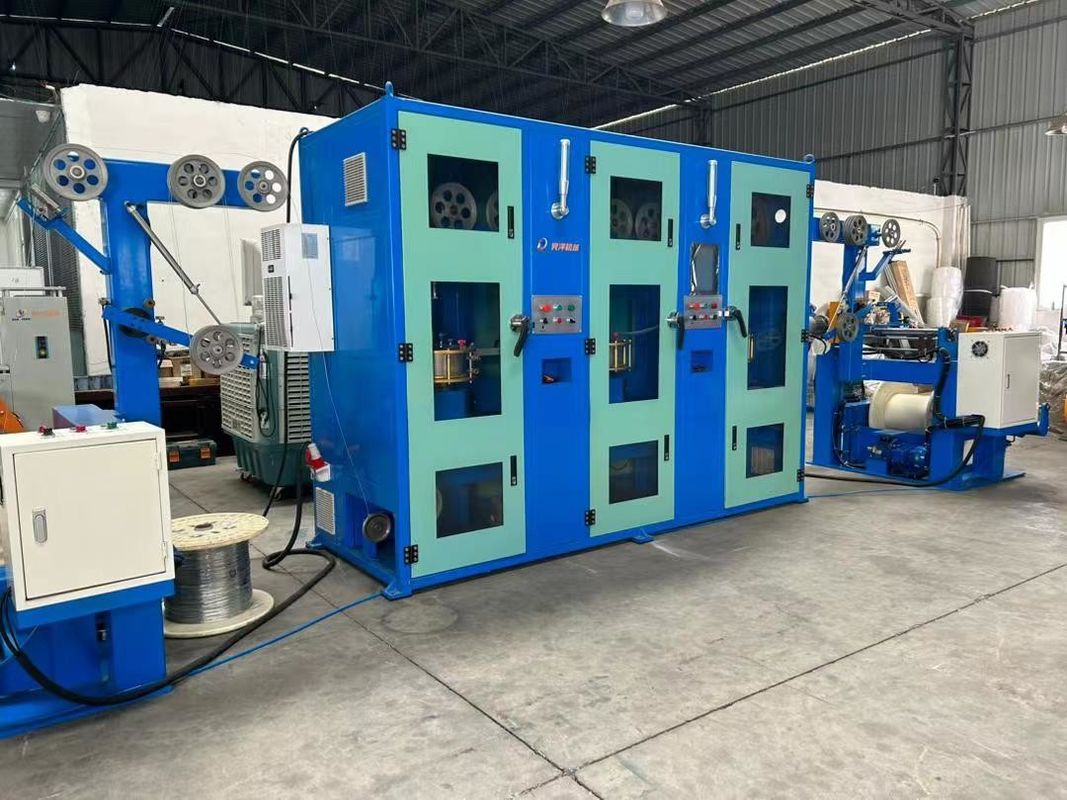

High Speed Chinese Brand Vertical Three-Layer Cable Tapping Wrapping Machine For 1mm To 10mm
About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, cable tapping machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,
Main brands for our machine
- Motor: SIEMENS, DONGGUAN MOTOR,
- Inverter: YASKAWA, INOVANCE, SIEMENS,
- PLC: Siemens
- Touch Screen: Siemens
- Low-voltage electrical components: Schneider
- Bearings: NSK or SKF
Technical Parameter:
| Type | 630mm | 500mm |
| Core specification | AWG32-AWG20 | |
| Wrapping material | Aluminum foil wrap, myra wrap, cotton paper wrap, transparent wrap, mica wrap | |
| Max rpm | Max2000rpm/Max28m/min | |
| Power | Adjust the speed by 1HP motor driver, taping drum and directs motor linkage | |
| Wrapping tension | Taping tension keep constant from start to end | |

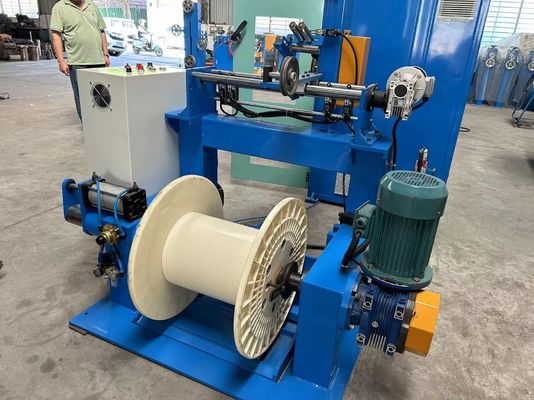

| Take-up tension | Take-up tension keep constant from start to end | |
| Traversing type | Shaft arrange take-up, no damage in produces, the size could be established by yourself | |
| Pay-off type | Linear slide rail+ slider pay-off tension type motive heavy, double-frequency speed, break protection function | |
| Shaft of take-up | 300-500general shaft | |
| Shaft of pay-off | 400-630 general shaft | |
| Machine weight | 1500KG | 1300KG |
