120 Power Cable Extrusion Machine / Industrial Extruder Machine Cable 4*16 4*35
Product Details:
Place of Origin: | Dongguan,china |
Brand Name: | Hongli |
Certification: | CE |
Model Number: | 120mm |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | 75,000-120,000$ |
Packaging Details: | wooden pacakge |
Delivery Time: | 50-80 days |
Supply Ability: | 5 set /month |
Detail Information |
|||
Name: | Industrial Extruder Machine Cable | Cable Size: | 3*95 |
---|---|---|---|
Power: | 110KW | Motor Brand: | Siemens |
Inverter Brand: | Yaskawa | Material: | PVC PE |
Production Line Length: | 31 Meter | Prodution Speed: | 50-150 Meters/min |
High Light: | 120 Power Cable Extrusion Machine,Industrial Extruder Machine Cable 4*16,Industrial Extruder Machine Cable 4*35 |
Product Description
About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,
Main brands for our machine
Technical parameters sheet:
Machine model | HL70 | HL80 | HL90 | HL120 | HL150 | HL200 | |
Cored wire spec. | Φ1.5-12mm | Φ2-20mm | Φ3-25mm | Φ10-50mm | Φ40-80mm | Φ60-150mm | |
Application | Applicable to power wires, computer wire, data wire and high-frequency wire jacket and sheath extrusion | ||||||
Extrusion material | PVC, PE, LSZF, PE, PP, PU etc | ||||||
Number of temperature control zones (main extruder + crosshead) | 5+3 | 5+3 | 6+3 | 6+3 | 7+3 | 9+3 | |
Driven power | 40 HP | 60HP | 60HP | 100HP | 125HP | 340HP | |
Max. Output | 140KG/H | 180KG/H | 240KG/H | 360KG/H | 500KG/H | 800KG/H | |
Max. Line speed | 400m/min | 300m/min | 250m/min | 180m/min | 80m/min | 80m/min |

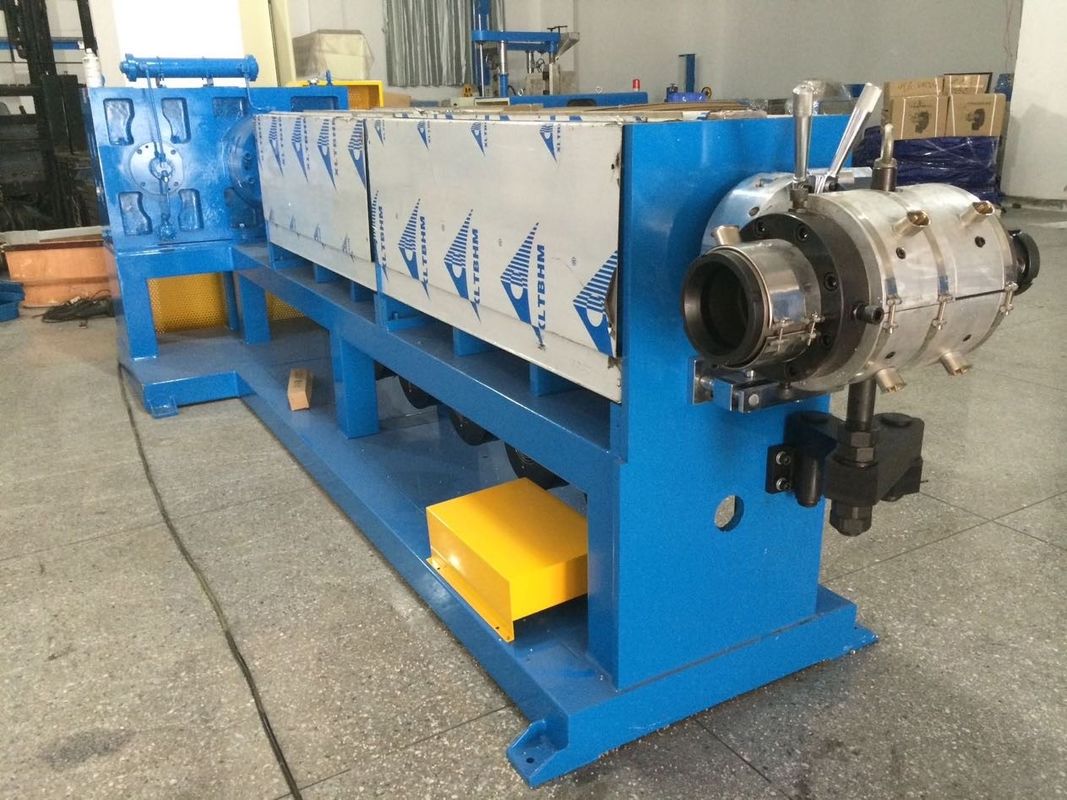

120 extruder
1, applicable materials: PVC, PE, PP plasticizing degree 100%
2, the maximum extrusion volume: 480kg/hr
3, finished wire diameter: 3 - 25mm
Center 4, mechanical height: 1000mm
5, the ratio of length to diameter: 25:1
6, the compression ratio: 2.8 times
7, screw diameter 120mm speed 0-60rpm, material 38CrMoA1A alloy steel teethnitrogen treatment, surface polishing of hard chromium plating
8, screw tube: diameter 120mm, material 38CrMoA1A alloy steel, nitriding,cylinderprecision grinding, hardness screw cylinder surface is higher than the screw thread frontal hardness R2 ~ 3 degrees.
9, gear box: imitation of Italy square reducer, hardened helical gear drive box of cast steel material, the oil bath type lubrication, tooth surface high-frequency quenching andgrinding, gear box through the bottom of the circulating cooling water for cooling, the lubricating oil has the advantages of compact structure, low noise.
10, the electric heating: 380V, three-phase shunt uniform
Screw cylinder electric heating area 5 ,cast aluminum heating coil heating of cooling airslot
Machine neck electric heating zone 1, electric heater
Head electric heating zone 1, cast aluminum heating coil heating
Eye model electric heating area 1, electric heater
11, the screw cylinder cooling: District 5, cooling fan 5
12, temperature control: using Taiwan Yangming temperature table 0 to 399 DEG temperature control automatic setting control, thermocouple with KTYP
13, the host motor: 110KW Jiangmen electric, sine inverter control to achieve thesynchronization and the take-off speed, convenient adjustment, stable operation.
14, using a ratchet head clamping: quick wrench, chain drive double clamp
