PVC / PE Cable Extruder Machine 132KW For Power Cable 4*120
Product Details:
| Place of Origin: | Dongguan,china |
| Brand Name: | Hongli |
| Certification: | CE |
| Model Number: | 150mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 75,000-120,000$ |
| Packaging Details: | wooden pacakge |
| Delivery Time: | 50-80 days |
| Supply Ability: | 5 set /month |
|
Detail Information |
|||
| Name: | PE Cable Extruder Machine | Cable Size: | 3*300 |
|---|---|---|---|
| Power: | 132KW | Motor Brand: | Siemens |
| Inverter Brand: | Yaskawa | Material: | PVC PE |
| Production Line Length: | 31 Meter | Prodution Speed: | 50-150 Meters/min |
| High Light: | Cable Extruder Machine 132KW,PE Cable Extruder Machine,4*120 Power Cable Extrusion Machine |
||
Product Description
Chinese Brand Wire And Cable Jacket Sheath PE PVC Extruding Extruder Extrusion Making Machine For Power Cable 4*120
About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,
Main brands for our machine
Technical parameters sheet:
| Machine model | HL70 | HL80 | HL90 | HL120 | HL150 | HL200 | |
| Cored wire spec. | Φ1.5-12mm | Φ2-20mm | Φ3-25mm | Φ10-50mm | Φ40-80mm | Φ60-150mm | |
| Application | Applicable to power wires, computer wire, data wire and high-frequency wire jacket and sheath extrusion | ||||||
| Extrusion material | PVC, PE, LSZF, PE, PP, PU etc | ||||||
| Number of temperature control zones (main extruder + crosshead) | 5+3 | 5+3 | 6+3 | 6+3 | 7+3 | 9+3 | |
| Driven power | 40 HP | 60HP | 60HP | 100HP | 125HP | 340HP | |
| Max. Output | 140KG/H | 180KG/H | 240KG/H | 360KG/H | 500KG/H | 800KG/H | |
| Max. Line speed | 400m/min | 300m/min | 250m/min | 180m/min | 80m/min | 80m/min |
|

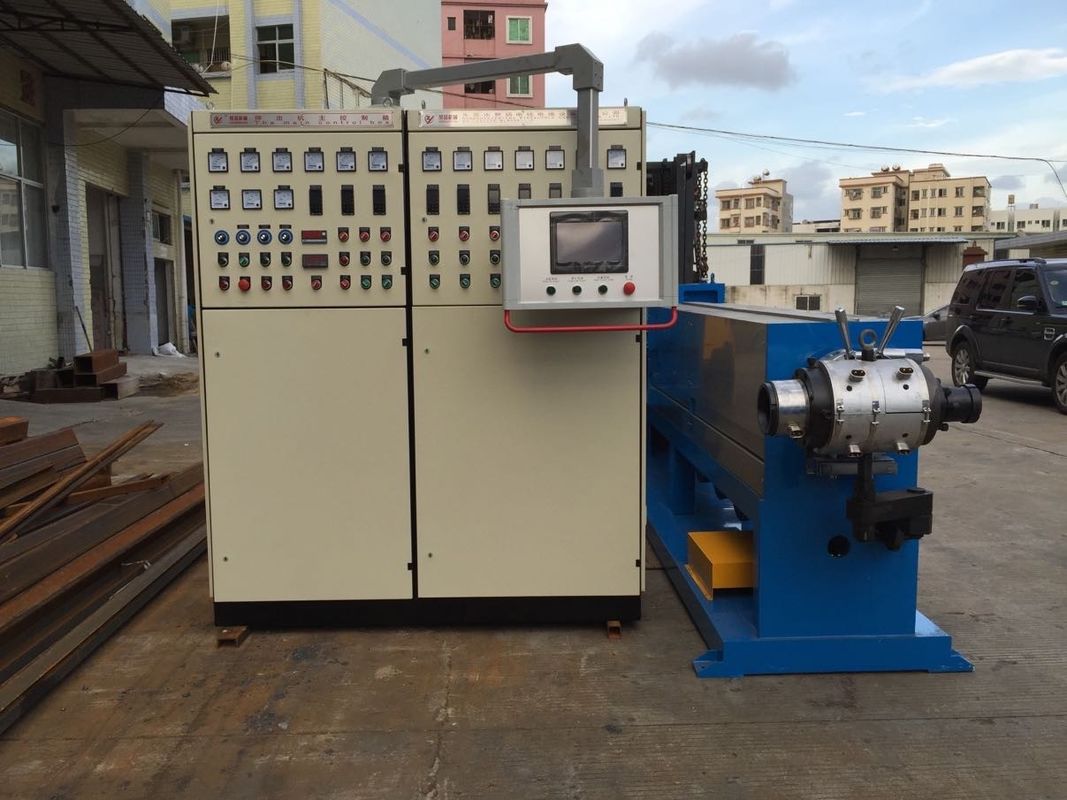

150 extruder
1, material: PVC, plasticizing degree 100%
2, the maximum extrusion volume: 650kg/hr
3, the product line diameter: diameter 10mm, diameter 80mm
4, mechanical height: 1000mm
5, the ratio of length to diameter: 25:1
6, the compression ratio: 2.8 times
7,screw diameter 150mm, speed 0-50rpm, material 38CrMoA1A alloy steel teethnitrogen treatment, surface polishing of hard chromium plating
8, screw tube: diameter 150mm, material 38CrMoA1A alloy steel, nitriding, the hardness of the screw cylinder precision grinding, cylinder surface is higher than the screw fronthardness of R2 ~ 3 degrees.
9, gear box educer: imitation of Italy square, hardened helical gear drive, the cast steel, oil bath lubrication, tooth surface high-frequency quenching and grinding, the gear box through the bottom of the circulating cooling water for cooling, lubricating oilhas the advantages of compact structure, small noise.
10, electric heating :380V, three-phase shunt uniform
Screw cylinder heating zone 7, cast aluminum heating coil heating of cooling air slots
Neck heating zone 1, electric heater
The machine clamp 1 district heating, electric heating tube
The heating zone 2, cast aluminum heating coil heating
Die heating zone 1, electric heater
11, the screw cylinder cooling: cooling fan zone 7, (370W).
12, temperature control: uses the Japanese OMRON PID smart thermostat temperature control
13, the main motor: 132KW Nanyang DC motor,American EUROTHREM 591 series DC speed governor
14, head clamping: use three pieces of wire rod locking machine
