Electric Cable Making Machine Extruder 140kg/H For Building House Wire
Product Details:
| Place of Origin: | Dongguan |
| Brand Name: | Hongli |
| Certification: | CE |
| Model Number: | 50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 35,000$-55,000$ |
| Packaging Details: | wooden packing |
| Delivery Time: | 20-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 set per month |
|
Detail Information |
|||
| Name: | Electric Cable Making Machine Extruder | Screw: | 70mm |
|---|---|---|---|
| Capacity: | 140kg/h | Cable Diameter: | 1-10mm |
| Cable Size: | 1.5,2.5,4,6 | Motor Power: | 22kw |
| Motor Brand: | Siemens | Inverter Brand: | Yaskawa |
| Length Of Machine: | 21 Meters | ||
| High Light: | Electric Cable Making Machine Extruder,Cable Making Machine Extruder 140kg/h |
||
Product Description
High Speed Building House Wire Electric Pvc Cable Extruder Extrusion Line
About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,
Main brands for our machine
Technical parameters sheet:
| Machine model | HL70 | HL80 | HL90 | HL120 | HL150 | HL200 | |
| Cored wire spec. | Φ1.5-12mm | Φ2-20mm | Φ3-25mm | Φ10-50mm | Φ40-80mm | Φ60-150mm | |
| Application | Applicable to power wires, computer wire, data wire and high-frequency wire jacket and sheath extrusion | ||||||
| Extrusion material | PVC, PE, LSZF, PE, PP, PU etc | ||||||
| Number of temperature control zones (main extruder + crosshead) | 5+3 | 5+3 | 6+3 | 6+3 | 7+3 | 9+3 | |
| Driven power | 40 HP | 60HP | 60HP | 100HP | 125HP | 340HP | |
| Max. Output | 140KG/H | 180KG/H | 240KG/H | 360KG/H | 500KG/H | 800KG/H | |
| Max. Line speed | 400m/min | 300m/min | 250m/min | 180m/min | 80m/min | 80m/min | |

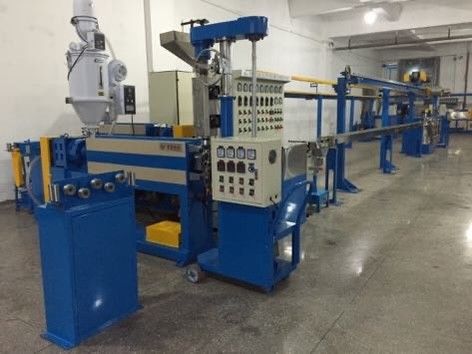

Extrusion Host
Applicable Material: PVCE, Plasticization degree of 100%.
Maximum Extrusion Capacity: 140kg/hr.
Finished wire diameter: 2—10mm
Mechanical Center Height: 1000mm
Ratio of Length and Diameter: 1:25
Compression Ratio: 1:2.8
Material of Screw: One Ø70mm, Rotation Rate of Screw: 0—90RPM,
screw with whole tooth nitrogen treatment of alloy steel and chrome-plated polished surface
Material of Screw Cylinder: 38CrMoA1A alloy steel, nitrogen treatment and precisely grinding. The surface hardness inside the screw cylinder is R2-3 degree higher than that of the front surface of the screw and the screw thread.
Gearbox: Imitation of Italian-type, hardened helical gear gearbox, material of cast steel, oil-bath lubrication, tooth-face high-efficiency quenching and adoption of Japanese NACHI bearing.
Electric Heating: total 380V, with even three-phase separated flow.
Screw cylinder electric heating zone 4, the cast aluminum heating ring heating is affixed with cooling air duct.
Head electric heating zone 1, heating by cast aluminum heating ring.
Machine neck electric heating zone 1, electric plate heating
Eye die electric heating zone 1, heating by the electro-thermal tablets.
Cooling: Screw cylinder zone 4, use 4 sets of cooling fans(250W).
Control of Temperature: Use the PID automatic temperature control gauge made in Yangming, Taiwan, automatically set the control under 0-399℃ and use KTYP as the thermal-couple.
Machine head clamping: Using a ratchet quick wrench, chain drive double clamp.
Host Motor: 22kw. Jiangmen motor SINEE invertor
Head clamping: using a ratchet quick wrench, chain driven double clamping.
