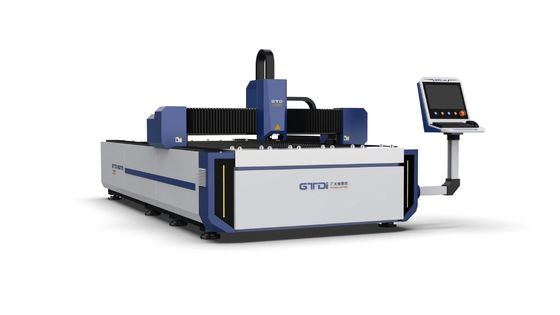

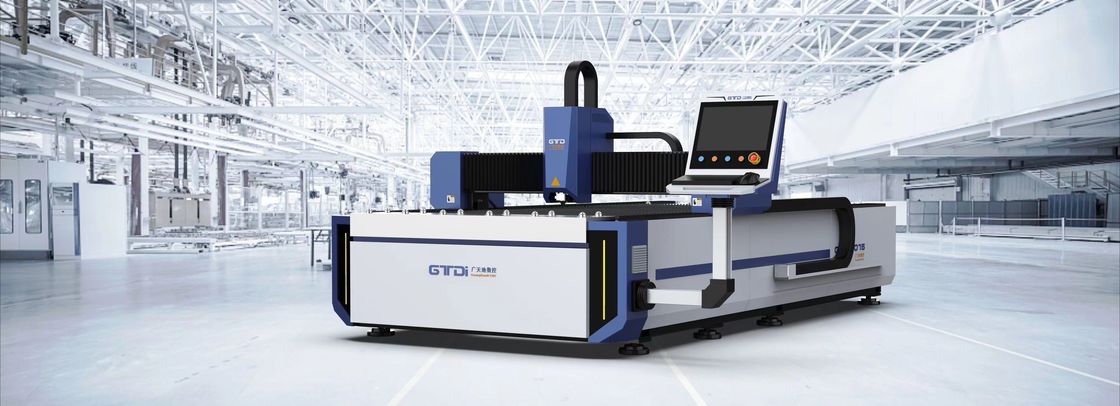

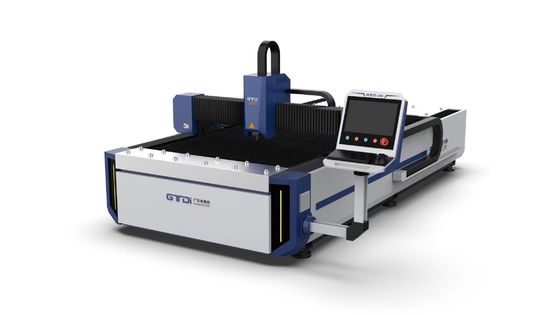

3015 CNC Metal Fiber Laser Cutting Machine 1000W 1500W 2000W 3000W 6000W 6kw
Product Details:
| Place of Origin: | Dongguan,china |
| Brand Name: | Hongli |
| Certification: | CE,ISO |
| Model Number: | YY-1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 20,00$-30,000$ |
| Packaging Details: | wooden packing |
| Delivery Time: | 15-30 days |
| Payment Terms: | T/T, L, L/C |
| Supply Ability: | 50 set per month |
|
Detail Information |
|||
| Name: | CNC Metal Fiber Laser Cutting Machine | Material: | STEEL |
|---|---|---|---|
| POWER: | 1000W | Material Thickness: | Max 3mm |
| Laser Power: | 1000W/1500W/2000W/3000W/4000W/6000W | Max. Linkage Speed: | 140m/min |
| High Light: | 3015 Metal Fiber Laser Cutting Machine,CNC Metal Fiber Laser Cutting Machine,Fiber Laser Cutting Machine 1000W |
||
Product Description
1000W 1500W 2000W 3000W 6000W CNC 3015 Metal Fiber Laser Cutting Machines 6kw For Stainless Steel Carbon Aluminum
About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, pipe production line,cable tapping machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,
Main brands for our machine
Applicable Industries:
Widely applied in thin metal sheets cutting, such as hardware, electronic parts and components, instrument, precision mechanic, glasses, jewelry, sheet metal processing, etc.
Technical Parameters
| Model | YY3015 | |||
| Laser Power | 1000W/1500W/2000W/3000W/4000W/6000W | |||
| Working area | 3000*1500mm / 4000*2000mm / 6000*1500mm / 6000*2000mm / 6000*2500mm | |||
| Machine overall dimensions | 4550*2300*2000mm | |||
| Machine weight | 3600kg | |||
| Max. linkage speed | 140m/min | |||
| Max. acceleration | 1.5G | |||
| Positioning accuracy | 0.03mm | |||
| Repositioning accuracy | 0.02mm | |||
Laser Description
| No. | Description | Brand | Origin |
| 1 | Machine main body | DURAMA | China |
| 2 | CNC operationg carbinet | DURAMA | China |
| 3 | Smoke dust sucking structure | DURAMA | China |
| 4 | air conditioning cabinet | DURAMA | China |
| 5 | Fiber Laser | IPG-700W | Germany |
| 6 | Laser cutting head | RayTools | Swiss |
| 7 | laser chiller | Han's/S&A | China |
| 8 | CNC system | CypCut | China |
| 9 | Capacitive THC | CypCut | China |
| 10 | Servo motor | S,chneider | France |
| 11 | Gear rack | YYC/ Level 6 precision | Taiwan |
| 12 | Linear Guide | Hiwin | Taiwan |
| 13 | Precision reducer | Shimpo | Japan |
| 14 | Proportional valve | SMC | Japan |
| 15 | high-pressure valve | SMC | Japan |
| 16 | Electronic pieces | S,chneider | France |
| 17 | Solenoid valve | SMC | Japan |
| 18 | Cutting software | CypCut | China |
