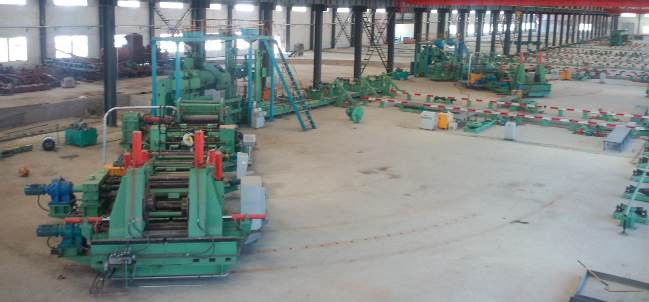

SSAW Automatic Welded Spiral Tube Making Machine Q235 Q355 X60 X70 X80
Product Details:
| Place of Origin: | Dongguan,china |
| Brand Name: | Hongli |
| Certification: | CE,ISO |
| Model Number: | HL2000-4000MM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 800,00$-1,500,000$ |
| Packaging Details: | wooden packing |
| Delivery Time: | 100-150 days |
| Payment Terms: | T/T, L, L/C |
| Supply Ability: | 50 set per year |
|
Detail Information |
|||
| Name: | Spiral Welded Pipe Making Machine | Material: | Q235,Q355,X60,X70,X80 |
|---|---|---|---|
| Strips Width: | 700-2000mm | Coil-I.D: | 508-760mm |
| Coil-O.D: | 1200-2000mm | Coil.weight: | Max 40 Tons |
| Pipe OD: | 400-4000mm | Pipe Thickness: | 5-28mm |
| Strips Thickness: | 5-28mm | Pipe Length: | 4-36 Meters |
| Foam Angle: | 40-80 Degree | ||
| High Light: | Automatic Spiral Tube Making Machine,Welded Spiral Tube Making Machine,SSAW Spiral Tube Making Machine |
||
Product Description
Pipe Making Machine SSAW Automatic Spiral Welded Tube Machine
About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, pipe production line,cable tapping machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,
Main brands for our machine
- Motor: SIEMENS, DONGGUAN MOTOR,
- Inverter: YASKAWA, INOVANCE, SIEMENS,
- PLC: Siemens
- Touch Screen: Siemens
- Low-voltage electrical components: Schneider
- Bearings: NSK or SKF
Model:
| No. | Model | OD (mm) |
Coil Width (mm) |
Thickness (mm) |
Capacity (kw) |
Area (M2) |
| 1 | HLYY - 820 | Φ219 - Φ820 | 350 - 1300 | 3 - 14 | 500 | 30×400 |
| 2 | HLYY -1020 | Φ273 - Φ1020 | 350 - 1300 | 3 - 16 | 800 | 30×400 |
| 3 | HLYY -1420 | Φ325 - Φ1420 | 500 - 1600 | 3 - 18 | 1000 | 30×400 |
| 4 | HLYY -1620 | Φ426 - Φ1620 | 500 - 1600 | 4 - 25.4 | 1500 | 30×400 |
| 5 | HLYY -1820 | Φ508 - Φ1820 | 500 - 2000 | 4 - 25.4 | 1500 | 30×400 |
| 6 | HLYY -2020 | Φ508 - Φ2020 | 500 - 2000 | 4 - 25.4 | 1500 | 30×400 |
| 7 | HLYY -2400 | Φ508 - Φ2400 | 500 - 2000 | 4 - 25.4 | 1800 | 30×400 |
| 8 | HLYY -3000 | Φ610 - Φ3000 | 500 - 2000 | 4 - 25.4 | 1800 | 30×400 |
| 9 | HLYY -3500 |
Φ720 - Φ3500 | 600 - 2000 | 4 - 25.4 | 2000 | 30×400 |
Process:
Loading Coil - Uncoiling - Leveling - Cutting and Coil Welding - Edge Milling Machine - Feeding Machine - Flying Welder - Delivering Machine - Pre-Bending and Guide Board - Forming Machine - Internal Welding - External Welding - Tracking and Cutting Off - Pipe Delivery - Welding Seam Grinding - Pipe End Expander - X-Ray Inspection - Hydro Testing - Pipe End Charming - Ultrasonic Inspection - Weighting, Measuring, Marking - Finished Products Collection
List of machine
| No. | Name | Qty |
| 1 | Pre-uncoiler | 1 |
| 2 | Detaching & Leveller | 1 |
| 3 | Uncoiler | 1 |
| 4 | Pinching & Leveler | 1 |
| 5 | Cutting & Burr Welding Machine | 1 |
| 6 | Submerged arc Welding Car | 1 |
| 7 | Vertical Roller on Fly-Welding Car | 1 |
| 8 | Pinching Device | 1 |
| 9 | Fly-welding Car & Rail Supporting Roller | 1 |
| 10 | Vertical Roller On The Ground | 1 |
| 11 | Precision Leveler | 1 |
| 12 | Rough Edge Miller | 1 |
| 13 | Precision Edge Miller | 1 |
| 14 | Steel Sheet Surface cleaner | 1 |
| 15 | Delivering Machine | 1 |
| 16 | Pre-bending &Guide Board | 1 |
| 17 | Forming Machine | 1 |
| 18 | Internal & External Welding Device | 1 |
| 19 | Lincoln Welder | 4 |
| 20 | Laser weld automatic tracking system | 1 |
| 21 | Welding flux supply and recovery system | 1 |
| 22 | Welding Flux handling device | 1 |
| 23 | Rear Axle& Centralizer Device | 1 |
| 24 | Fly Cutting Machine | 1 |
| 25 | Carried Pipe Car | |
| 26 | Anchor bolts and embedded parts in main machine | |
| 27 | Hydraulic System in main machine | |
| 28 | Electrical control machine in main machine | |
| 29 | Vacuum type internal welding slag removal device | |
| 30 | Inside and outside welding seam grinding machine | |
| 31 | Pipe End Expanding Machine | |
| 32 | X Ray Inspection Device | |
| 33 | 3000T Hydrotester | |
| 34 | Φ3600 Pipe End Facing & Chamfering | |
| 35 | Φ1626 Tube End Flaring Machine | |
| 36 | UT Tester | |
| 37 | Pipe End X Ray filming | |
| 38 | Weighting, Measuring Marking device | |
| 39 | Carried Pipe Car | |
| 40 | Pipe Conveying Roll Bed | |
| 41 | Rotating Roller | |
| 42 | Pulling Pipe Device | |
| 43 | Receiving Pipe Device | |
| 44 | Rack | |
| 45 | Active Pulling Pipe Device | |
| 46 | Fixed Pulling Pipe Device | |
| 47 | Anchor bolts and embedded parts in Precision Area | |
| 48 | Hydraulic System in Precision Area | |
| 49 | Electrical control machine in Precision Area |
