35kv CCV Lines 150+90+65 XLPE Extruder Machine For Power Cable 240 / 300 / 630 Square Mm
Product Details:
| Place of Origin: | hebei |
| Brand Name: | Hongli |
| Certification: | CE,ISO |
| Model Number: | 6-35KV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 600,00$-950,000$ |
| Packaging Details: | wooden packing |
| Delivery Time: | 90-120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 set per month |
|
Detail Information |
|||
| Name: | CCV Lines | Size: | 630 |
|---|---|---|---|
| Copper Size: | 35-630 Square Mm | Aluminum Size: | 50-800 Square Mm |
| Max Cable Diamater: | 75mm | Inverter Brand: | Yaskawa |
| Extruder Size: | 150+90+65 | Motor Brand: | Siemens |
| Main Power: | 75KVA | Factory Size: | More Than 135 Meters |
| XLPE Close Size: | 36m+12m+54m | Cable Weight: | 10kg/m |
| High Light: | 35kv CCV Lines,CCV Lines XLPE Extruder Machine,ISO CCV Line Machine |
||
Product Description
150+90+65 XLPE EXTRUDER MACHINE 35kv Ccv Line For Xlpe Power Cable 240, 300, 630 Square Mm
About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, cable tapping machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,
Main brands for our machine
- Motor: SIEMENS, DONGGUAN MOTOR,
- Inverter: YASKAWA, INOVANCE, SIEMENS,
- PLC: Siemens
- Touch Screen: Siemens
- Low-voltage electrical components: Schneider
- Bearings: NSK or SKF
1. Application
This CCV line is used to make 3 layers co-extrusion cables, voltage from 6 kv to 35 kv.
2. Main machine list
| 6 - 35 kV CCV Line Main Machine List | ||
| S/N | ITEM | Quantity |
| 1 | Double Gantry type 2500 pay-off machine | 1 set |
| 2 | Accumulator | 1 set |
| 3 | Belt type haul-off | 1 set |
| 4 | 65+150 +90 extruders | 1 set |
| 5 | 3 layers co-extrusion cross-head | 1 set |
| 6 | Upper seal | 1 set |
| 7 | Heating tubes | 1 set |
| 8 | Catenary control system | 1 set |
| 9 | Pre-cooling tubes | 1 set |
| 10 | Water gas balance system | 1 set |
| 11 | Cooling tubes | 1 set |
| 12 | Lower seal | 1 set |
| 13 | Lower belt type haul-off | 1 set |
| 14 | Double Gantry type 3150 take-up machine | 1 set |
| 15 | PLC + Touch screen Control system | 1 set |
3. Main Technical parameter
| 6 - 35 kV CCV Line Main Technical Parameter | ||
| S/N | ITEM | SPECIFICATION |
| 1 | Insulation voltage range | 6 - 35 kV |
| 2 | Cross-section range | Copper: Ø 35- 630 mm² Aluminum: Ø 50 - 800 mm² |
| 3 | Max. cable weight | 10 kg/m |
| 4 | Max. Cable diameter | Ø 70 mm |
| 5 | Line speed | 0.3 - 30 m/min |
| 6 | Max vulcanization tube temp. | 450 ºC |
| 7 | Technology method | Nitrogen for coring Water for cooling |
| 8 | Catenary coefficient | 200 -150 |
| 9 | Tube style | Semi- catenary |
| 10 | Heating tube length | 36 m < 6 zones heating> 42 m < 7 zones for heating > 48 m < 8 zones for heating > 54 m < 9 zones for heating > |
| 11 | Pro cooling tube length | 6 - 13 m |
| 12 | Cooling tube length | 54 m < 6 zones for heating > 66 m < 7 zones for heating> 72 m < 8 zones for heating > 84 m < 9 zones for heating > |
| 13 | Working pressure | 0.8 - 1.6 MPa |
| 14 | Nitrogen purity | ≥ 99.5% |
| 15 | Extruder style | 65+ 150 + 90 or 80+ 175+ 100 < high speed> |
| 16 | Power consumption | 1050 kVA 380 V 50 Hz |
| 17 | Water consumption | 15 m³/h Water pressure: 0.2 - 0.6 MPa |
| 18 | Air consumption | 0.5 m³/h, 0.6 - 0.8 MPa |
| 19 | Nitrogen consumption | 4 - 8 m³/h, Purity: 99.5% Pressure: 0.2 - 0.6 MPa |

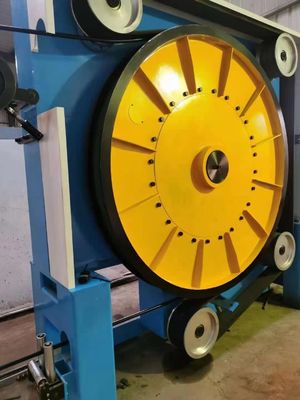

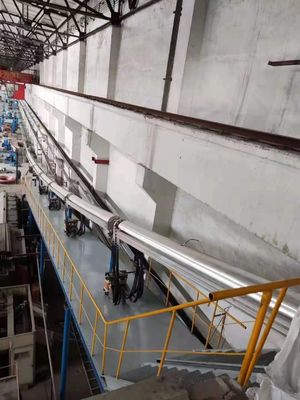

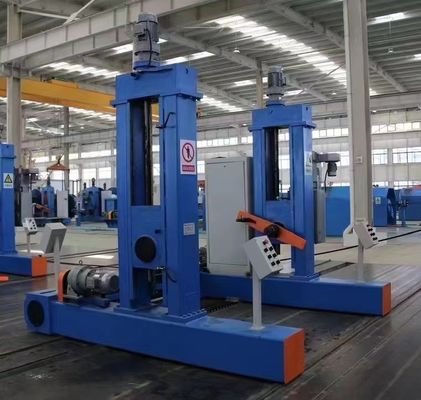

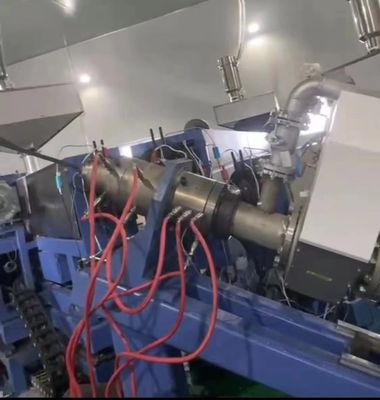

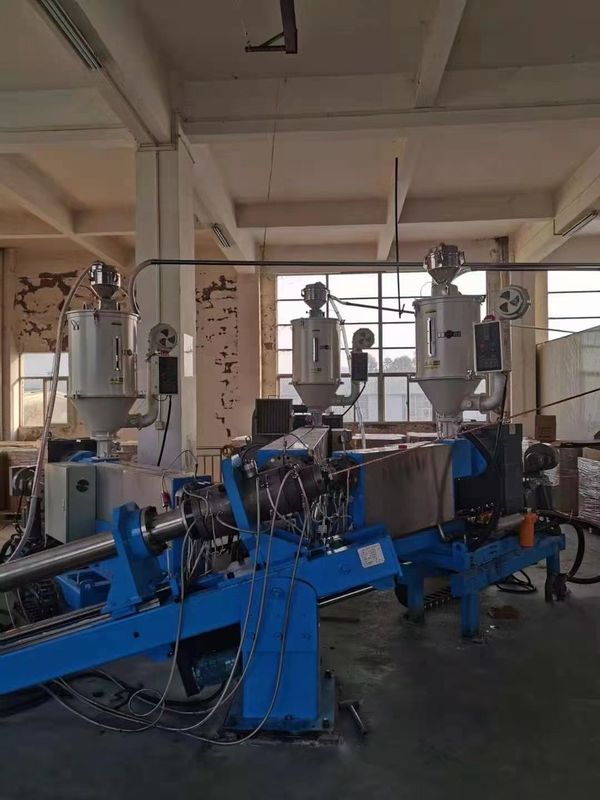

4. Main Machine Photos
