1250 High Speed Double Twist Bunching Machine For Wire / Cable 10 16 25 4*2.5
Product Details:
| Place of Origin: | Dongguan |
| Brand Name: | Hongli |
| Certification: | CE,ISO |
| Model Number: | 1250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 85,500$-120,000$ |
| Packaging Details: | wooden packing |
| Delivery Time: | 60-90 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 set per month |
|
Detail Information |
|||
| Name: | Double Twist Bunching Machine | Size: | 1250 |
|---|---|---|---|
| Copper Diameter: | 1-3mm | Cable Size: | 10,16,25,35 |
| Motor Power: | 37kw | Motor Brand: | Siemens |
| Inverter Brand: | Yaskawa | Length Of Machine: | 15 Meters |
| Rotation Speed: | 800RPM | ||
| High Light: | 1250 Double Twist Bunching Machine,High Speed Double Twist Bunching Machine |
||
Product Description

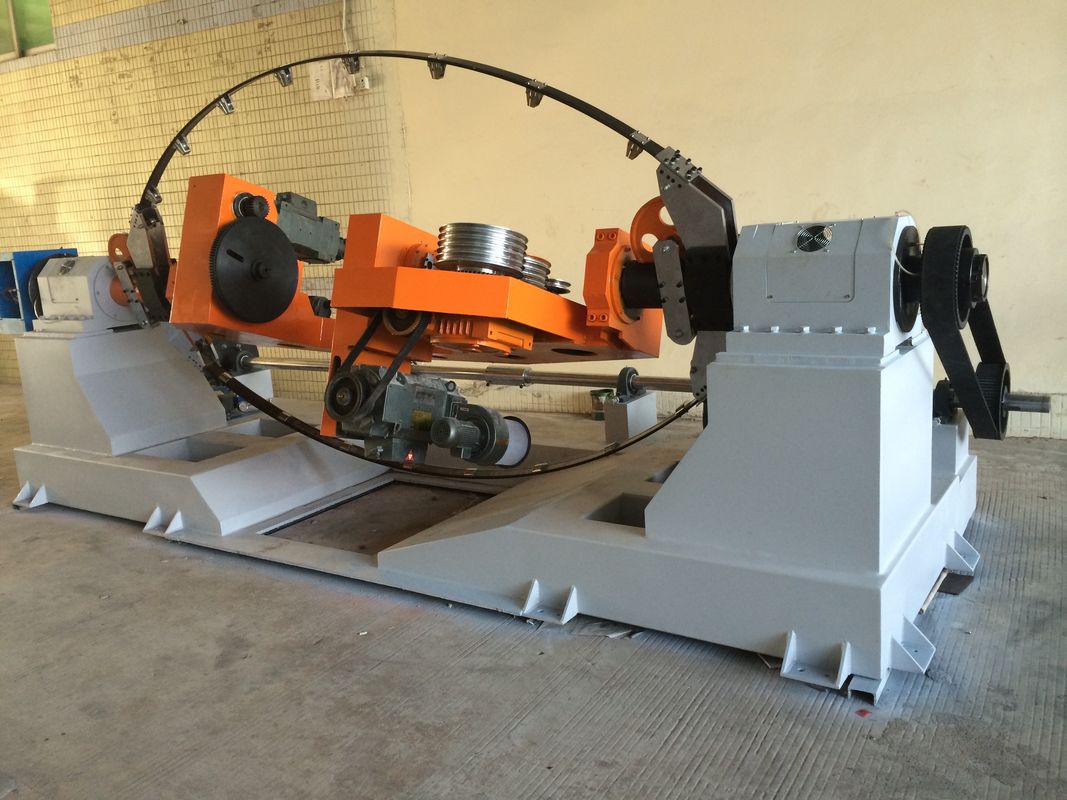

1250 High Speed Double Twist Bunching Machine for Wire and Cable 10,16,25,4*2.5
About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,
Main brands for our machine
Technical parameters sheet:
| Machine model | HL300 | HL500 | HL630 | HL800 | HL1000 | HL1250 | |
| Copper wire spec. | Φ0.05-0.16mm | Φ0.08-0.41mm | Φ0.12-0.64mm | Φ0.38-1mm | Φ0.4-2.14mm | Φ0.5-2.7mm | |
| Application | Applicable to over 7 pcs copper twisting, | ||||||
| material | copper,tin plated wire, enamelled wire, aluminum wire | ||||||
| Number of copper | 1+6+12 | 1+6+12 | 1+6+12 | 1+6+12 | 1+6 | ||
| Driven power | 5 HP | 5 HP | 10 HP | 15 HP | 30 HP | 40HP | |
| Max. size | 0.3,0.5 | 0.5,0.75, | 1.5,2.5 | 4,6 | 10,16 | 25,35 | |
| Rotation speed | 3000RPM | 2200RPM | 1800RPM | 1200RPM | 1000RPM | 800RPM | |
Technical parameters of 1250 Bow-type double twisting machine
I. Application:
This machine is applicable to stranding of insulated wire rods such as power cable, communication cable, computer and instrument cable, copper conductor, aluminum conductor, BV, BVV, RV and RVV.
II. Features and Properties:
1. It adopts imported carbon fiber rotary double bow slices and features light weight, small centrifugal force and high rotation speed.
2. PLC controls the whole process of production line with program control of PLC stranding pitch.
3. Bearing of the machine adopts the imported brands NSK and KOYO, high strength synchronous belt transmission force with high transmission accuracy and low noise, imported gas-liquid pressurized disc braking system, up and down spool in motor-driven conveying type, standalone closed protecting cover.
4. It adopts high hardness chrome bar as a guidance during wire ranging, multi-startthread transmission force speed reduction motor drive. PLC procedure controls the pitch of cables, which can be adjusted in the working process.
5. The pneumatic type jacking shaft structure is easy and convenient in operation.
6. The pre-twisting device with multi-hole inlet wire distribution plate arranges multiple wires layer by layer with concentric stranding. There is one rotating mould and two fixed moulds and squeezing moulds installed inside and outside the machine to guarantee tightness and roundness of stranded conductor.
7. Active type pay-off can keep constant tension of wire stringing, which avoids leakage of stranding effectively.
8. The mainshaft bearing is designed with temperature control system, which will stop working and offer a reminder to add lubricating oil to make automatic protection in case of over high temperature
III. Configurations of Production Line

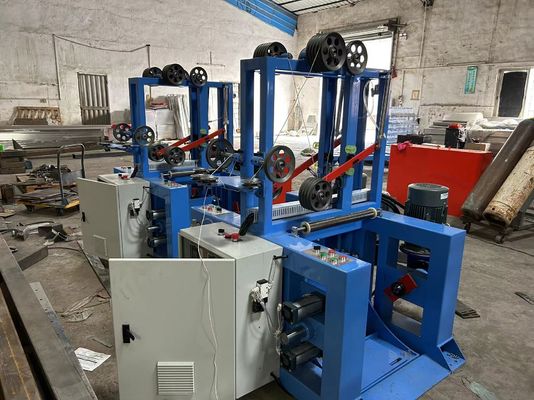

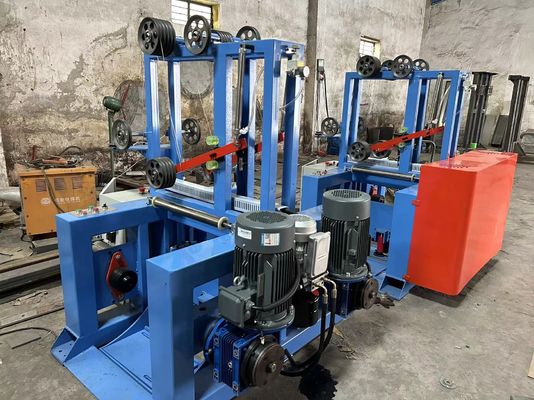

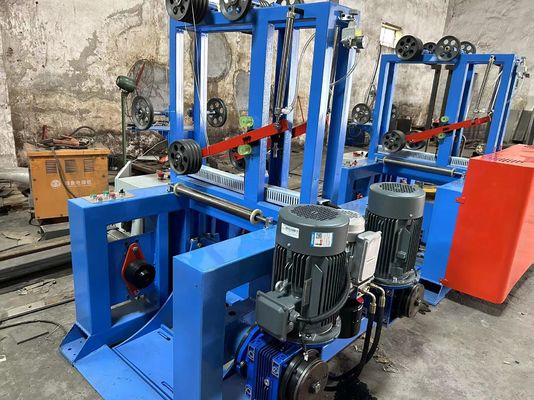

Payoff machine: 800-1250 driven payoff stand …………………7set
2．Computer(PLC)control bench:…………………………… 1set
3. Φ1250 stranding host machine: ………………………… 1set

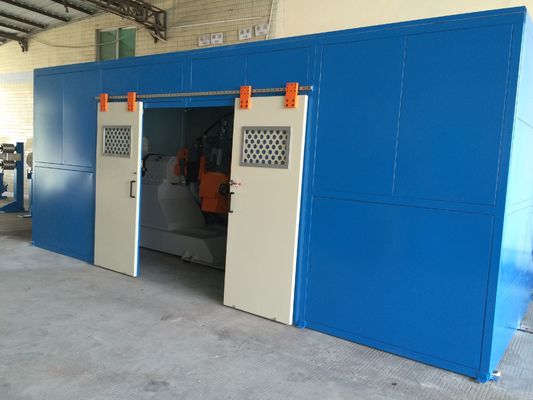

4．Standalone security protective cover: …………………….1set
5．Motor-driven type lift truck: ………………………… 1set
