|Cable Size:||1.5 2.5 4 6||Pay Off:||500-800mm|
5kw Wire Coiling Machine,
5kw Cable Production Line,
630mm Cable Production Line

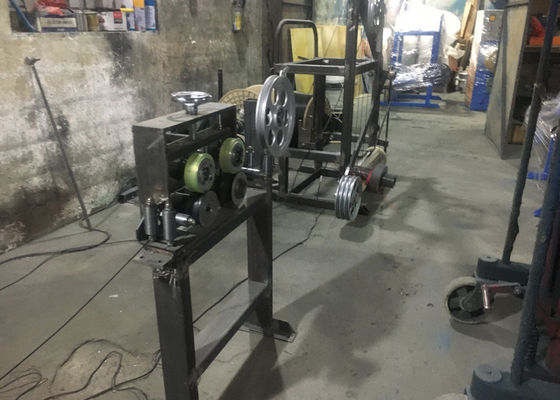

High Speed 630 Coiling Machine Cable Wire Packing Production Line
this machine is for 1.5, 2.5, 4,6 square mm, 100 meters or 91 meters in one coils, speed is 2 coils per min
1, single head wire releasing device
2, the storage line type automatic tension control the pay-off speed, pay-off speed and the host speed are synchronization
3, lever type loading bobbin device, can quickly and saving energy in changing the wire disc.
4, pay-off wire disc specifications: Φ400-Φ630mm
the meter device:
1, electronic meter device can ensure the accuracy of the length of the bundling machine, realizes the automatic control.
III, single head roller host:
1, single –axlel type take-up, wire coil inner diameter is 120mm, the outer diameter is Φ320 mm, height 30-105mm can be adjustable (according to customer's requirement)
2, automatic meter counting , reaching the setting number of meters ,automatic alarm and shutdown, automatic brake..
3, by using the dynamic 3HP Jiangmen electric and 3HP Shenzhen sine inverter, the realization of frequency conversion stepless speed regulation.
4, the unique passive automatic wire-arrangeing, which can ensure the wire pitch is not affected by the line size, realization of neat and compact when wire-roling
5.Host: maximum speed 500 rpm, speed adjustable.
6, applicable range of wire sizes: 0.5--10mm2 .
7, color: blue.
