70 Electrical Plastic Cable Winder Machine Wire Bunching Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Motor: | Siemens | Inverter: | Yaskawa |
|---|---|---|---|
| Plc: | Siemens | Cable Size: | 1-10mm |
| Speed: | 180-400 Meters Per Min | Power: | 45kw |
| Material: | Pe,pvc | Pay Off: | 400-630mm |
| Take Up: | 630-800mm | Capacity: | 150kg/h |
| Length Of Production: | 21 Meters | ||
| High Light: | 70 cable winder machine,45kw wire bunching machine |
||
Electrical Cable Wire Plastic Winding Cutting Extrusion Extruder Bunching Machine
Main features of machine
1.Apply cable Diameter: Φ1 mm～Φ10 mm, (the best suitable size is 1.5 square mm and 2.5 square mm)
2. Screw Diameter: the screw diameter is 70 mm.
3. Extrusion Capacity (when the head is turned on): Φ70 Machine=max140 kg/h
4. Linear Velocity: 200～400 m/min
5. Length of Production Line: 26 m
6. Installed Capacity: about 140kg/h
7. Total Power: 40KW
List of machine
| Item | Name | Model | Quantity |
| 1 | Double head Pay-off machine | 400-630mm | 1 set |
| 2 | Straighter machine | 0.4mm | 1 set |
| 3 | 70 extruder | 37KW | 1 set |
| 4 | Adjustable cross-head | U14 | 1 set |
| 5 | Automatic feeding (sucking) machine | 1 set | |
| 6 | Control box | Inovance | 1 set |
| 7 | Moveable water tank | 1.8m | 1 set |
| 8 | Printer | 1 set | |
| 9 | OD tester | On-line | 1 set |
| 10 | Fixed water tank | 8 M | 1 set |
| 11 | Dryer | 1 set | |
| 12 | Storage stand | 12 m | 1 set |
| 13 | Capstan machine | 1 set | |
| 14 | Meter counting stand | 1 set | |
| 15 | Spark tester | 15KV | 1 set |
| 16 | Take up machine | Double | 1 set |
| 17 | Dies | NA | |
| 18 | Spare parts | some | |
Brand of parts
1. Temperature control: RKC (Japan)
2. Bear: NSK (Japan)
3. Motor: Service motor, Siemens
4. Motor: Service motor, Siemens
5. Reducer:CPG (TaiWan)
6. AC convertor (YASKAWA)
7. Button: Schneider
8. Contactor: YangMing(TaiWan)
9. Intermediate relay: OMRON
10. Meter count: YangMing(TaiWan)
11. Magnetic powder clutch: Chinese Brand
12. Machine Body: A3 with annealing process
13: Control box: A3
14.Water tank: stainless steel
Accessory Parameters
Pay off machine
1,type:Double pay-off stand has axial type tension
2,The wire disc lift:Leveraged energy design
3,trunnion:PD400-630
4,Tension unreeling device: Pay-off tension spring is adjustable
Price: 32,000USD
Payment:60% as advance, 40% before shipping
Deliver time: 30 days after advance
Warranty:1.0year (start from the day when the machine is running in Customer’s factory)
Installation: we will send you one engineer to install the machine in customer’s factory but customer should pay the flight ,hotel, food and salary( 80usd per day).

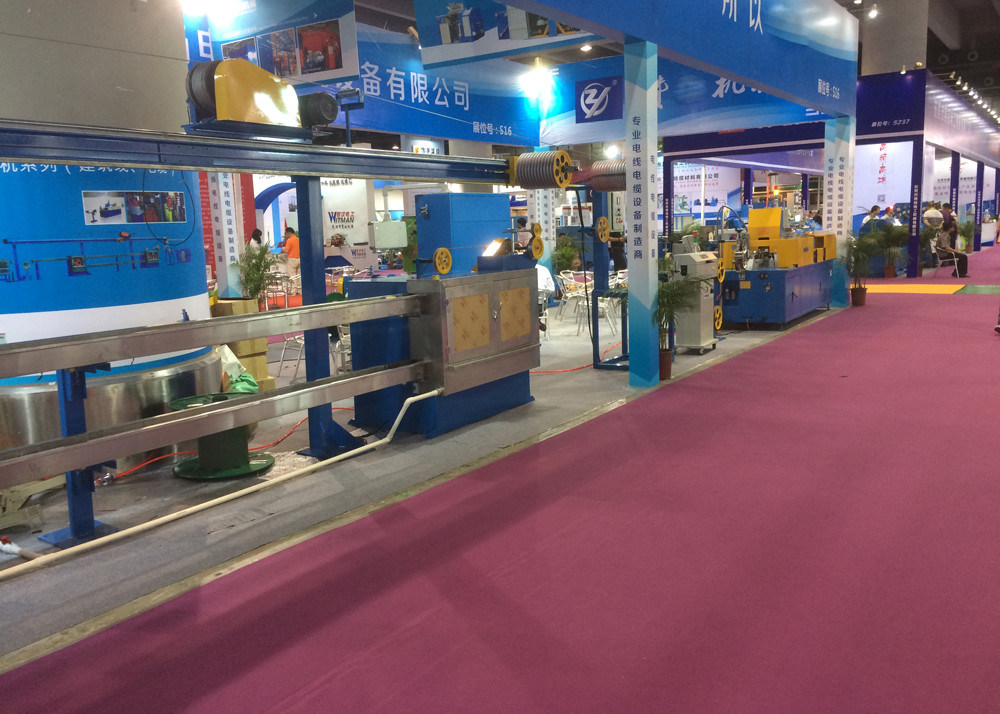

pictures
