|Speed:||200-400 Meters Per Min||Power:||55kw|
|Length Of Production:||24 Meters|
PE Double Screw Extruder,
55kw Double Screw Extruder,
55kw Plastic Extruder Machine

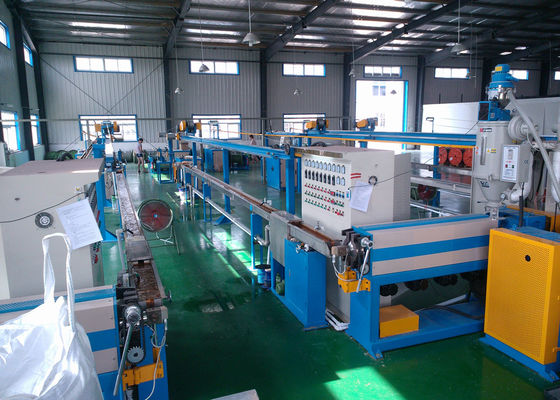

High Speed Automatic Plastic Hdpe Pe Water Cable Pipes Extruder Extrusion Making Machine
Main features of machine
1.Apply cable Diameter: Φ1 mm～Φ15 mm, (for 1.5, 2.5, 4 ,6,10,16,25, square mm)
2. Screw Diameter: the screw diameter is 80 mm.
3. Extrusion Capacity (when the head is turned on): Φ80 Machine=max200 kg/h
4. Production Speed: 5～350 m/min
5. Length of Production Line: 24 m
6. Installed Capacity: about 180kg/h
7.Color: Sky, Blue (customer decide the color, usually we choose blue)
List of machine
|1||Magnetic Powder Pay-off machine||630-800mm||1 set|
|2||Straighter machine||1 set|
|3||80 extruder||1 set|
|4||Adjustable cross-head||1 set|
|5||35 Injection machine||1 set|
|6||Automatic feeding (sucking) machine||1 set|
|7||PLC Control box||Inovance||1 set|
|8||Powder machine||1 set|
|9||Moveable water tank||1.8m||1 set|
|11||OD tester||On-line||1 set|
|12||Fixed water tank||10 M||1 set|
|14||Storage stand||1 set|
|15||Capstan machine||1 set|
|16||Meter counting stand||1 set|
|17||Spark tester||15 KV||1 set|
|18||Take up machine(collier)||Double||1 set|
|19||Take up machine||800-1250||NA|
Brand of parts
1. Temperature control: RKC (Japan)
2. Bear: NSK (Japan)
3. PLC (Siemens)
4. Motor: Service motor, Siemens
5. Reducer:CPG (TaiWan)
6. AC convertor (YASKAWA)
7. Button: Schneider
8. Contactor: YangMing(TaiWan)
9. Intermediate relay: OMRON
10. Meter count: YangMing(TaiWan)
11. Magnetic powder clutch: Chinese Brand
12. Machine Body: A3 with annealing process
13: Control box: A3
14.Water tank: stainless steel
Payment:60% as advance, 40% before shipping
Deliver time: 30 days after advance
Warranty:1.0year (start from the day when the machine is running in Customer’s factory)
Installation: we will send you one engineer to install the machine in customer’s factory but customer should pay the visa,flight ,hotel, food and salary( 80USD per day).
80 Extruder with feeding part
Applicable Material: PM—PE,PE
Maximum Extrusion Capacity: 100kg/hr.
Finished wire diameter:3-20mm
Mechanical Center Height: 1000mm
Ratio of Length and Diameter: 25:1
Compression Ratio: 1:2.8
Screw : Diameter:Ø80mm
Rotation Rate of Screw: 0—100RPM
Material of Screw: 38CrMoA1A alloy steel, whole tooth nitrogen treatment, chrome-plated polished surface
Material of Screw Cylinder: diameter is Ø80mm, 38CrMoA1A alloy steel, nitrogen treatment and precisely grinding. The surface hardness inside the screw cylinder is R2-3 degree higher than that of the front surface of the screw and the screw thread.
Gearbox: Imitation of Italian-type, hardened helical gear gearbox, material of cast steel, oil-bath lubrication, tooth-face high-efficiency quenching and precisely grinding, the bottom of the reduction box cooling the lubricating oil through by circulating cooling water, compact construction, little noise.
Electric Heating: gross power is 12 kw , 380V, with even three-phase separated flow.
Screw cylinder electric heating zone 6, the cast aluminum heating ring heating is affixed
with cooling air duct.
Head electric heating zone 1, heating by cast aluminum heating ring.
Eye die electric heating zone 1, heating by the electro-thermal tablets.
Cooling: Screw cylinder zone 6, use 6 sets of cooling fans( 180W).
Control of Temperature: Use the automatic temperature control gauge made in Yangming, Taiwan.
Host Motor: 40HP SIEMENS OF Germany, U.S Emerson inverter is adjustable.
clamp machine's head: using the ratchet quick wrench, chain transmission double side clamping.
