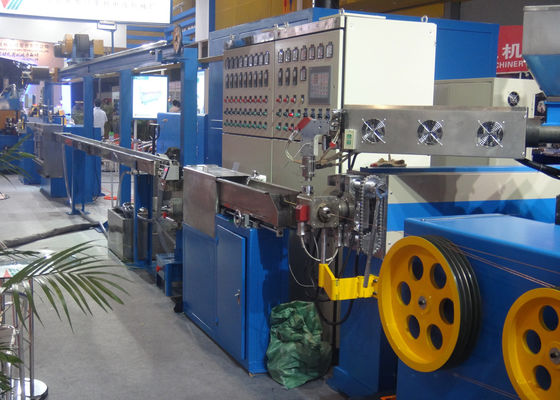

High Speed Building Cable Extrusion Line Extruder Extrusion Machine

Main features of machine

1.Apply cable Diameter: Φ1 mm～Φ10 mm, (for 1.5,2.5,4,6,2*1.5,3*1.5...)

2. Screw Diameter: the screw diameter is 70 mm.

3. Extrusion Capacity (when the head is turned on): Φ70 Machine=max140 kg/h

4. Linear Velocity: 5～300 m/min

5. Length of Production Line: 24 m

6. Installed Capacity: about 140kg/h

7. Total Power: 50KW

List of machine

Brand of parts

1. Temperature control: RKC (Japan)

2. Bear: NSK (Japan)

3. PLC (Siemens)

4. Motor: Service motor, Siemens

5. Reducer:CPG (TaiWan)

6. AC convertor (YASKAWA)

7. Button: Schneider

8. Contactor: YangMing(TaiWan)

9. Intermediate relay: OMRON

10. Meter count: YangMing(TaiWan)

11. Magnetic powder clutch: Chinese Brand

12. Machine Body: A3 with annealing process

13: Control box: A3

14.Water tank: stainless steel

the machine is used for making outside PVC layer

Production speed:

1.5 square mm: 300-400 meters per minute

2.5 square mm: 300-350 meters per minute

4 square mm: 250-300 meters per minute

6 square mm: 150-220 meters per minute

Payment:60% as advance, 40% before shipping

Deliver time: 30 days after advance

Warranty:1.0year (start from the day when the machine is running in Customer’s factory)

Installation: we will send you one engineer to install the machine in customer’s factory but customer should pay the visa,flight ,hotel, food and salary( 80USD per day).
