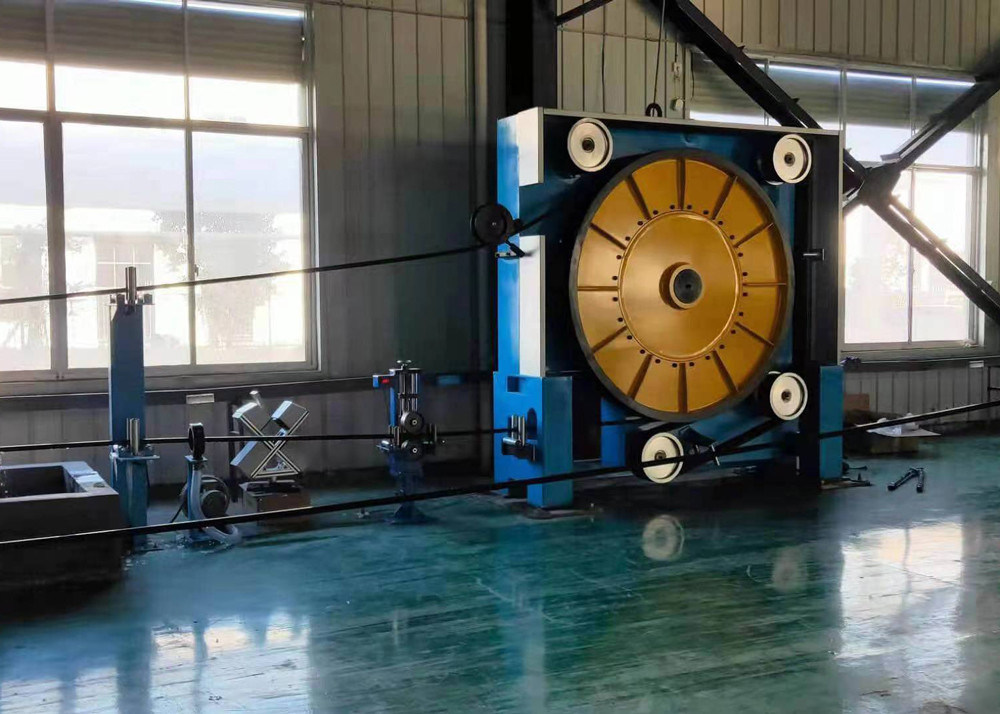

65+150+90 XLPE Power Cable Extruder Machine 35kv CCV Line

1. Automatic production line of energy saving and high efficiency, it is an intelligent production line which the tube heating , extruding and line speed have an overall linkage .
2. Good overall stability of the equipment, high cost effectiveness with less secondary waste after putting into operation.
3. Advanced technology of the whole equipment and the excellent processing prevent from the three leakage problems effectively.
4. Die replacing at the front part of the head, convenient and efficient for die adjusting and replacing, no deviation when accelerating the speed.
5. Professional installment and calibrating, which can meet high requirements of the line producing.
6. Advanced technology of the electrical control for the whole set of the equipment and easy to operate.
7. Advanced technology of the sag control for the production line & stable performance, production maintenance free.
8. Stable nitrogen & water control system, no stoppage & leakage & instability of the water level failures, producing without maintenance.
9. Accurate temperature control system, no ageing problem of the material in long-time producing.
10. Adopting photoelectrical encoder for speed testing, stable running with high precision & excellent synchronization.
11. Project of tracking management by professionals in the whole process, which ensures the production quality with guaranteed after-sale service.

1. Voltage level XLPE 6-35KV

2. Conductor size :

(1) Copper: 35-630 square mm

(2) Aluminum: 50-800 square mm

3. Cable weight : 10kg/meter(max)

4. Cable diameter: 75mm (max)

5. thickness of each layers

(1) 65 extruder inside layer: 0.5-2.0mm

(2) 150 extruder insulation layer: 2.5-10.5mm

(3) 90 extruder outside layer: 0.5-2.0mm

6. Cross-linked closed length: 102 meters

(1) Heating section: 36 meters, 6m*6

(2) Pre-cooling section: 12 meters, 6m*2

(3) Water cooling section: 54 meters, 6m*9

7. Main building platform area (length * width): ≥24m×18 m

8. Host floor height: ≥10m

9. length of factory: ≥135m

10. Nitrogen :　 Pressure 2.0~2.5 MPa Purity 99.5%

　 Consumption 0.4~1.8 m3 /h Nitrogen storage tank capacity 5 m3

11. Cooling water :　 pressure 0.2~2 MPa Circulation consumption 12.5m3 /h

12. Compressed air: pressure 0.6~0.8 MPa standard consumption 0.8 m3 /h

13. Installed capacity:　750 kVA

14. Two power supply lines: (3×185 mm2, 3×240 mm2)
