Electric Wire Extruder Machine Cable Extruder Line 200-400 Meters/Min

Electric Wire Extruder Machine Cable Extruder Line 200-400 Meters/Min
Electric Wire Extruder Machine Cable Extruder Line 200-400 Meters/Min Electric Wire Extruder Machine Cable Extruder Line 200-400 Meters/Min Electric Wire Extruder Machine Cable Extruder Line 200-400 Meters/Min Electric Wire Extruder Machine Cable Extruder Line 200-400 Meters/Min Electric Wire Extruder Machine Cable Extruder Line 200-400 Meters/Min

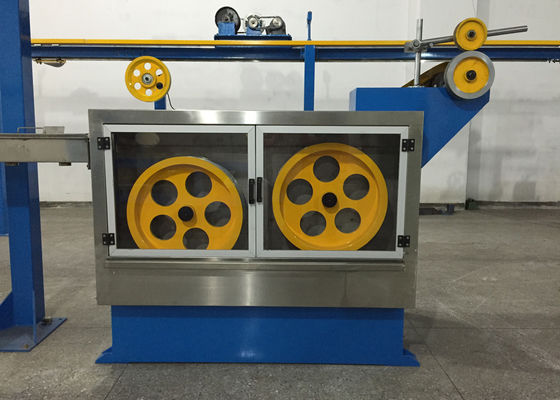

Large Image :  Electric Wire Extruder Machine Cable Extruder Line 200-400 Meters/Min Get Best Price

Product Details:
Place of Origin: donguan, china
Brand Name: yuyang
Certification: CE, CCC, CE, ISO
Model Number: yy-70
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 28000$-55000$
Packaging Details: 1 pcs 20 feet container
Delivery Time: 30 days after advance payment
Payment Terms: T/T
Supply Ability: 15 set after advance
Detailed Product Description
Motor: Siemens Inverter: Yaskawa
Plc: Siemens Cable Size: 1.5,2.5,2*0.5,2*0.75
Speed: 200-400 Meters Per Min Power: 45kw
High Light:

Electric Wire Extruder Machine 200 Meters/Min

,

45kw Cable Extruder Line

,

400 Meters/Min Wire Extruder Machine

Electric Wire Extruder Machine Cable Extruder Line

Main features of machine

1.Apply cable Diameter: Φ1 mm~Φ10 mm, (the best suitable size is 1.5 square mm and 2.5 square mm)

2. Screw Diameter: the screw diameter is 70 mm.

3. Extrusion Capacity (when the head is turned on): Φ70 Machine=max140 kg/h

4. Linear Velocity: 200~400 m/min

5. Length of Production Line: 26 m

6. Installed Capacity: about 140kg/h

7. Total Power: 40KW



List of machine

Item Name Model Quantity
1 Double head Pay-off machine 400-630mm 1 set
2 Straighter machine 0.4mm 1 set
3 70 extruder 37KW 1 set
4 Adjustable cross-head U14 1 set
5 Automatic feeding (sucking) machine   1 set
6 Control box Inovance 1 set
7 Moveable water tank 1.8m 1 set
8 Printer   1 set
9 OD tester On-line 1 set
10 Fixed water tank 8 M 1 set
11 Dryer   1 set
12 Storage stand 12 m 1 set
13 Capstan machine   1 set
14 Meter counting stand   1 set
15 Spark tester 15KV 1 set
16 Take up machine Double 1 set
17 Dies   NA
18 Spare parts   some




Brand of parts

1. Temperature control: RKC (Japan)

2. Bear: NSK (Japan)

3. Motor: Service motor, Siemens

4. Motor: Service motor, Siemens

5. Reducer:CPG (TaiWan)

6. AC convertor (YASKAWA)

7. Button: Schneider

8. Contactor: YangMing(TaiWan)

9. Intermediate relay: OMRON

10. Meter count: YangMing(TaiWan)

11. Magnetic powder clutch: Chinese Brand

12. Machine Body: A3 with annealing process

13: Control box: A3

14.Water tank: stainless steel



Payment:60% as advance, 40% before shipping

Deliver time: 30 days after advance

Warranty:1.0year (start from the day when the machine is running in Customer’s factory)

Installation: we will send you one engineer to install the machine in customer’s factory but customer should pay the flight ,hotel, food and salary( 80usd per day).
