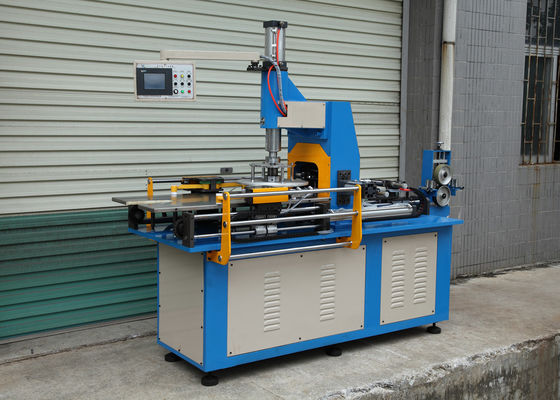

High Speed Automatic Coiling Machine Cable Packing Production Line
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Motor: | Siemens | Power: | 7.5kw |
|---|---|---|---|
| Cable Size: | 1.5 2.5 4 6 | Pay Off: | 500-800mm |
| Inverter: | Yaskawa | Speed: | 2 Coils Per Min |
| High Light: | 7.5kw Automatic Cable Coiling Machine,800mm Automatic Cable Coiling Machine,7.5kw Automatic Coiling Machine |
||
1. Usage:
automatic coiling machine is mainly used to packing wire and cable in coils, which can work with extruder line or individually work with active pay-off and tension machine.
2. Advantages:
1> automatic coiling from an extruder line or from the pay-off machine
2> touch screen, human-machine interface makes it easy to operate.
3> servo motor traversing system produces wire coil with smooth surface.
4> the machine will detect the fault automatically, and give alarm.
5> can input and keep 99 types of coil data in the PLC memory.
6> it's unnecessary to adjust any device when change coil size to another.
3. Main technical Parameter
| Automatic Coiling and Packing Machine Technical Parameter | ||
| Model | YY-1246 | YY-1860 |
| Coil height | 50 -120 mm | 60 - 180 |
| Coil OD | Ø 200 - 460 mm | Ø 200 - 600 mm |
| Coil ID | Ø 140 - 220 mm | Ø 180 - 250 mm |
| Wire diameter | Ø 1.0 - 12 mm | Ø 5.0 - 15 mm |
| Wrapping material | PVC/PE | PVC/PE |
| Coiling speed <100 m/coil> | 2 - 2.6 coils/min | 1.5 - 2 coils/min |
